Rubber Track Loader
11. Undercarriage Disassembly and Assembly
11-8

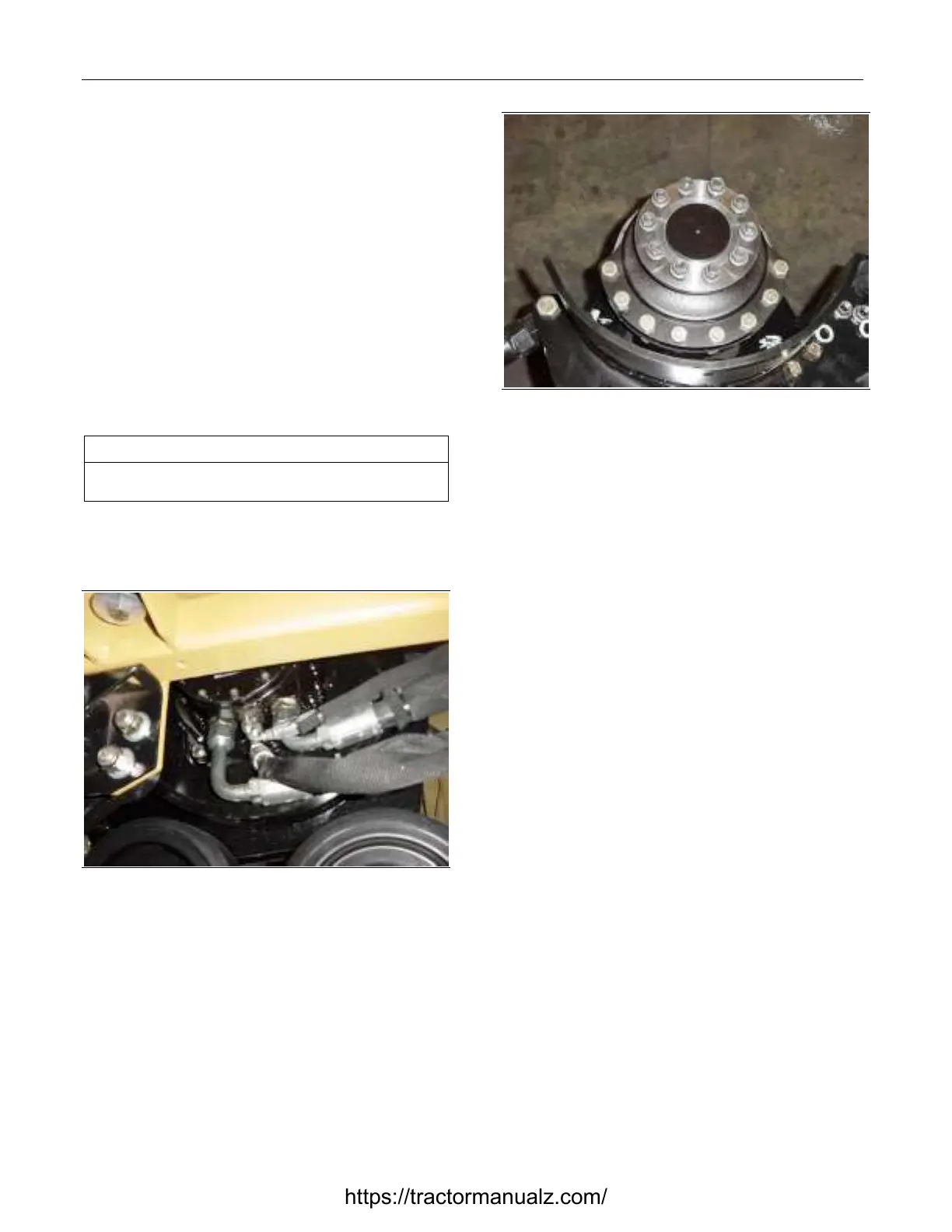

Figure 0-21 12-030
1. Remove the bearing plate as described above.
Remove the 10 lug nuts that mount the sprocket
to the drive motor.
2. Remove the sprocket.
3. Reverse the procedure for sprocket installation
and torque the lug nuts to 160 ft.-lbs.
Drive Motor Removal and
Installation
Use manufacturer-recommended tools whenever
possible.
Required Tools
Socket Wrench
Crows Foot Attachment
Drive Motor Removal
Figure 0-22 12-035
1. Using a pressure washer or compressed air,
clean all hydraulic fittings on the drive motor
thoroughly before removing any hoses. Dry the
fittings. Remove the hoses and cap immediately.
Figure 0-23 12-036
2. Remove the 8 bolts that mount the Drive motor
to the drive table.
3. Reverse the procedure to install the drive motor
and torque the drive motor mounting bolts to 160
ft.-lbs.
