Rubber Track Loader
10. Transmission and Drive Disassembly and Assembly
10-3

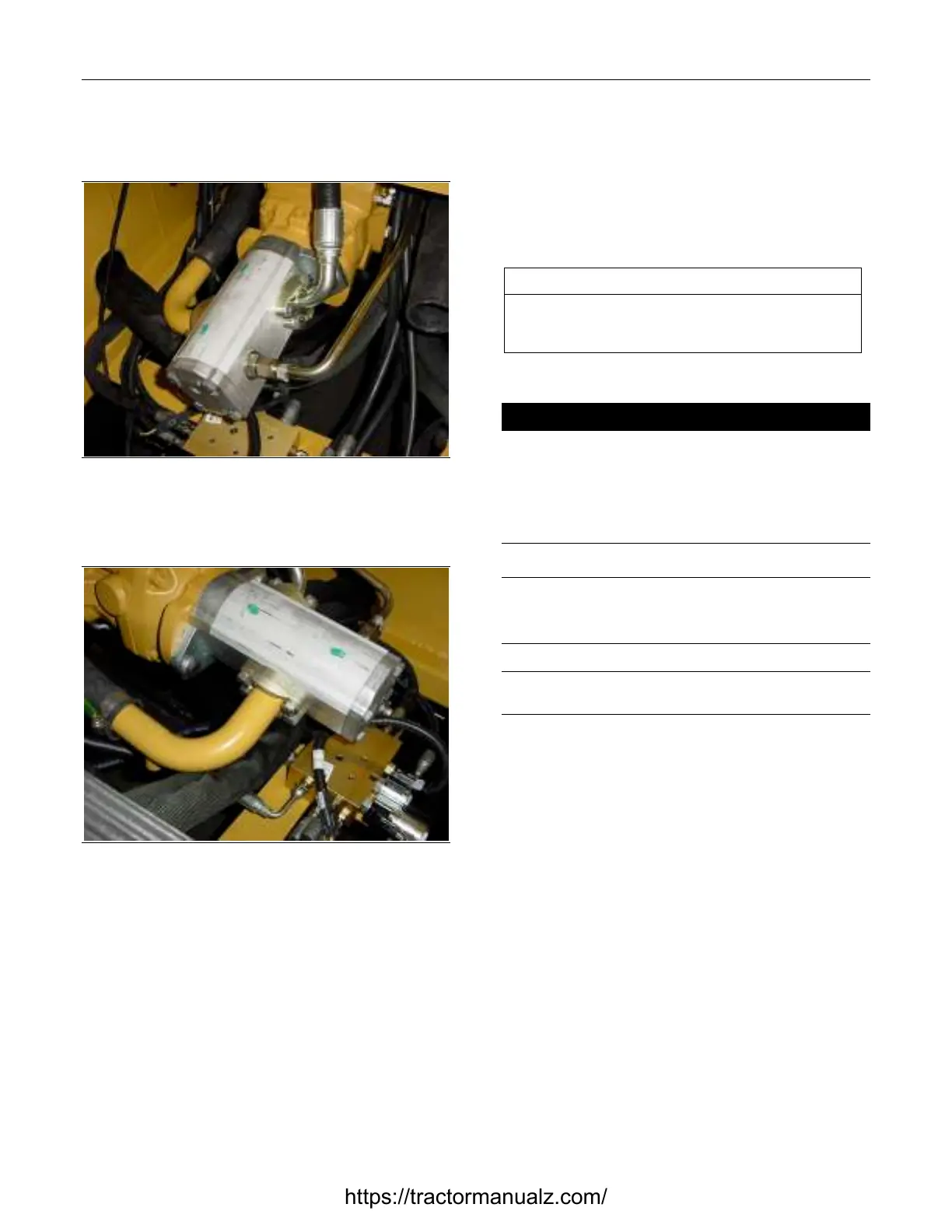

9. Remove the other split flange fitting and the re-
maining fitting.
Figure 10-5 10-005
10. Remove the 2 bolts that mount the pump to the
hydrostatic transmission, and remove the pump.
Figure 10-6 10-006
Tandem Pump Removal and
Installation
The tools required for tandem pump removal and
installation are listed in Table 10-2. Use manufac-
turer-recommended tools whenever possible.
Table 10-2
Required Tools
Screwdriver
Combination Wrench
Socket Wrench
Tandem Pump Removal
! WARNING !
Hot oil can cause personal injury. Lower all attach-
ments and make sure the oil is cool before removing
any components or lines.
Remove the oil filler cap only when the engine is
stopped and the filler cap is cool enough to touch with
your hands.
NOTICE
Collect and contain liquids in a suitable container. Dispose
of all liquids according to local regulations and mandates.
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.
1. Lower the lift arms to the ground.
2. Turn the engine start switch to the OFF position.
3. Relieve hydraulic pressure from the auxiliary
circuit.
4. Drain the hydraulic fluid. Refer to Chapter 16.
Hydraulic Fluid and Filter Change.
5. Remove the seat. Refer to Chapter 6. Seat Re-
moval.
6. Remove the auxiliary gear pump. Refer to Chap-
ter 10. Auxiliary Gear Pump Removal.
7. Remove the belly pan.
