14. Hydraulic Pressure Check & Adjustment
14-2

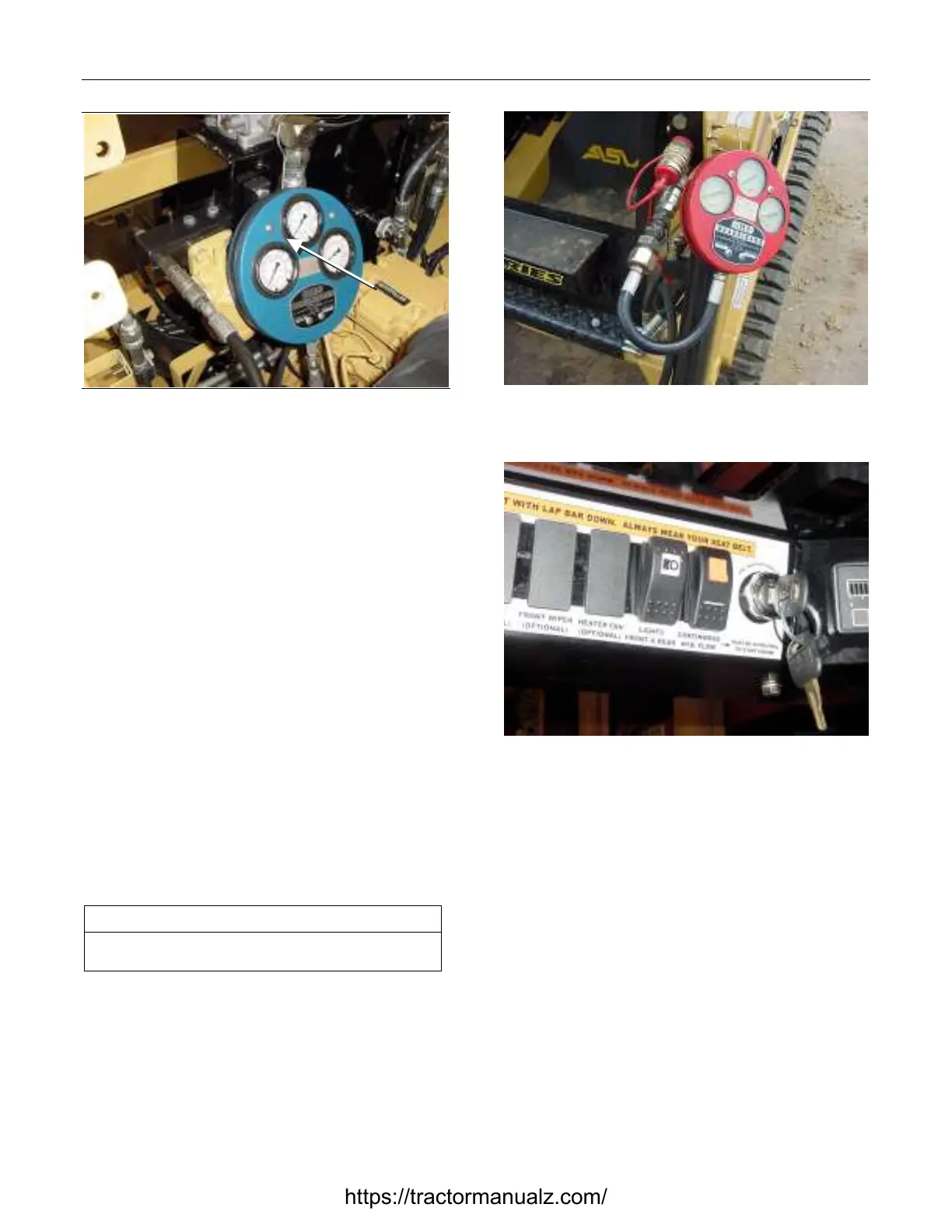

Figure 0-2 10-102
1. Attach the gauge to the charge pressure test
port, located next to the fuel filter.
2. Start the engine.
3. Check the pressure with the engine at wide
open throttle. Make sure the engine is properly
warmed up before running wide open. Charge
pressure should be between 400 and 450 psi.
4. Turn the engine start switch to the OFF position.
5. Remove the gauge from the test port.
6. Install the floor pan
Auxiliary Pressure Check & Adjustment
The service tools required for the auxiliary pressure
check and adjustment are listed in Table 0-1. Use
manufacturer-recommended tools whenever possi-
ble.
Table 0-2
Required Tools
Pressure Gauge
Allen Wrench
Figure 10 10-110
1. Insert the hydraulic gauge into one of the at-
tachment quick couplers.
Figure 11 10-111
2. Engage the continuous flow switch next to the
key switch. Make sure it is in the direction that
sends flow to the gage.
3. There must be an operator in the seat with the
lap bar down for the flow to work.
4. Pressure should be approximately 3000 psi.
ttach
Gauge
