9. Loader/Transmission Controls Disassembly and Assembly
9-9

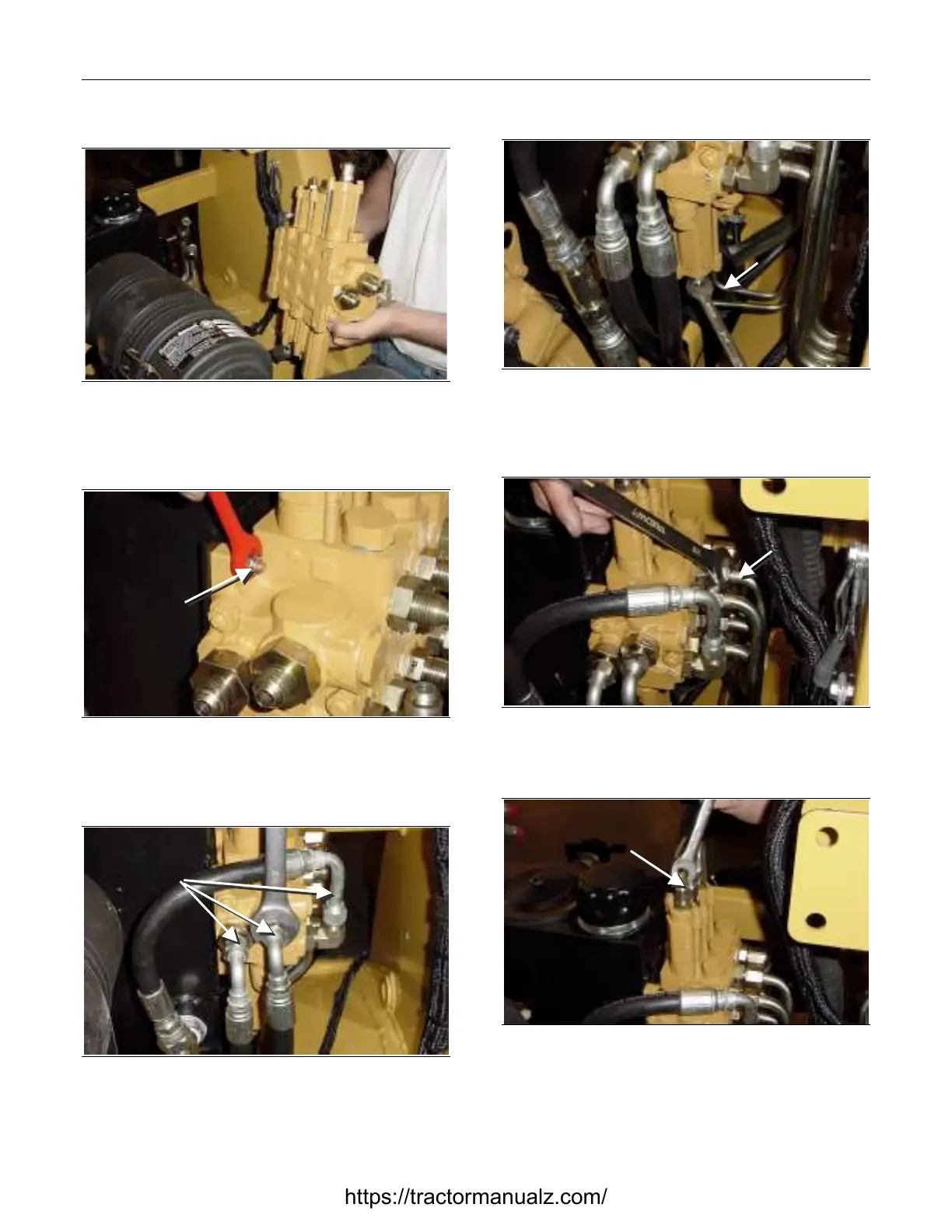

Loader Valve Installation
Figure 9-34 9-017
1. Position the loader valve against the hydraulic
reservoir.
Figure 9-35 9-016
2. Install the nuts on the four bolts that secure the
loader valve to the hydraulic reservoir.
Figure 9-36 9-015
3. Install the hoses on the end and side of the
loader valve.
Figure 9-37 9-014
4. Install the tubes on the bottom of the loader
valve.
Figure 9-38 9-013
5. Install the tubes on the side of the loader valve.
Figure 9-39 9-012
6. Install the tubes on the top of the loader valve.
7. Add manufacturer-approved hydraulic fluid.
Install
Nuts
Install
Hoses
Install
Tubes
Install
Tubes
Install
Tubes
