ASV RC-50 Service & Repair Manual

Rubber Track Loader
5. Operator Enclosure Disassembly and Assembly
5-3

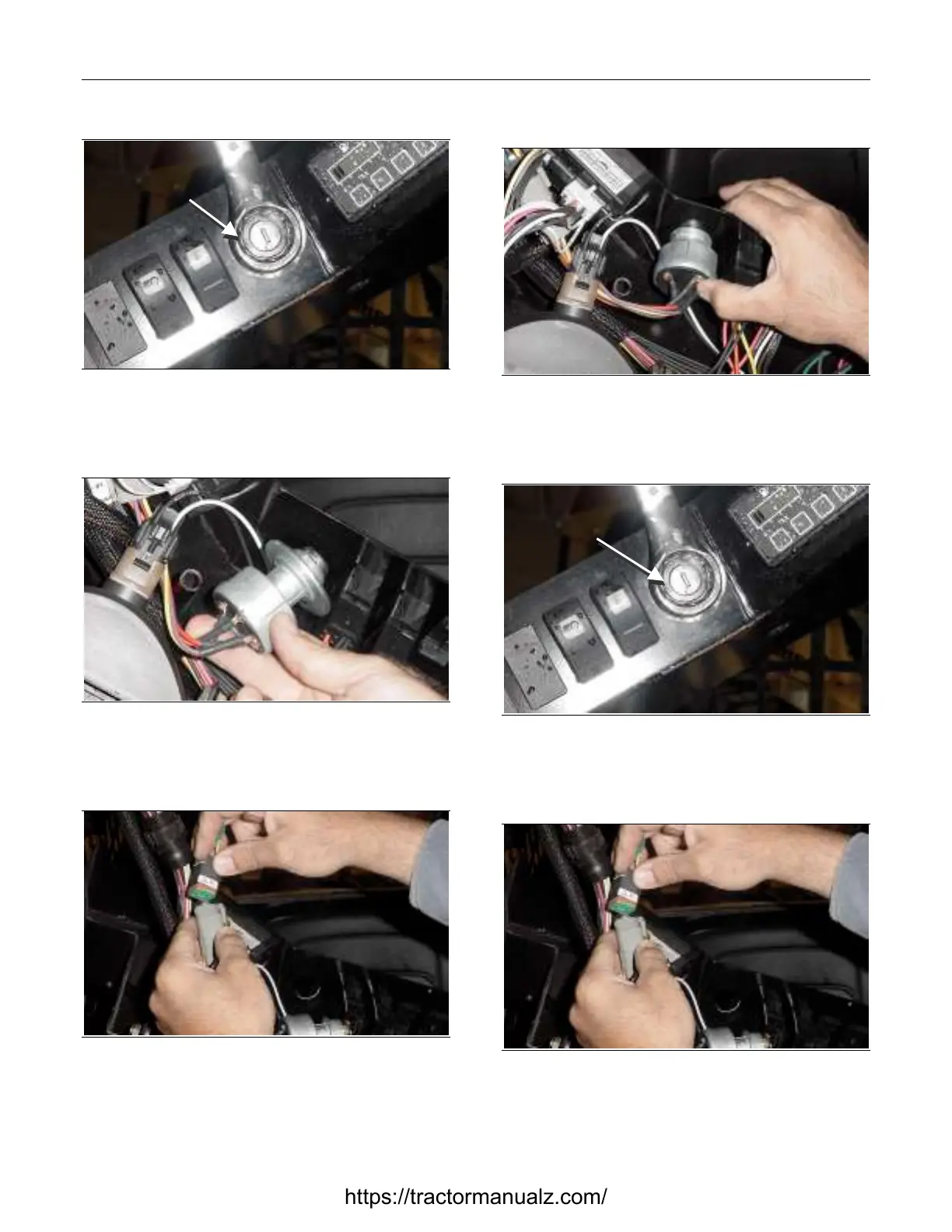

Figure 5-7 5-007
2. Remove the nut that secures the ignition switch
to the dash panel.
Figure 5-8 5-008
3. Pull the ignition switch out from the rear of the
dash panel.
Figure 5-9 5-009
4. Unplug the ignition switch connector.
Ignition Switch Installation
Figure 5-10 5-010
1. Insert the ignition switch from the rear of the
dash panel.
Figure 5-11 5-011
2. Install the nut that secures the ignition switch to
the dash panel.
Figure 5-12 5-012
3. Plug in the ignition switch connector.
Remove Nut
Install Nut
