10. Transmission and Drive Disassembly and Assembly
10-4
8. Remove all hoses and tubes from the tandem
pump. Cap the hoses and tubes.

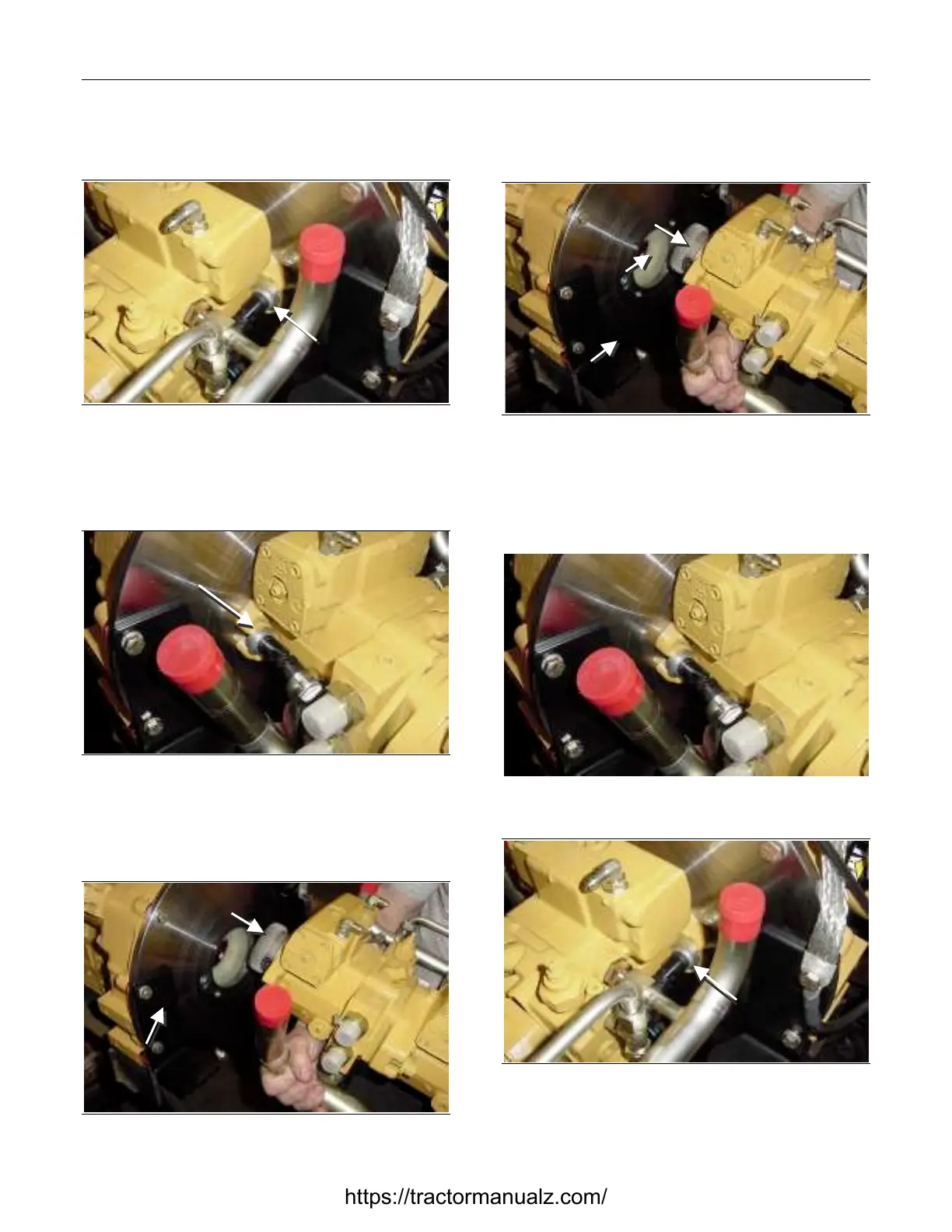

Figure 10-7 10-008
9. Remove the mounting bolt (with spring lock
washer and flat washer) from the right-hand side
of the tandem pump.
Figure 10-8 10-009
10. Remove the mounting bolt (with spring lock
washer and flat washer) from the left-hand side
of the tandem pump.
Figure 10-9 10-010
Tandem Pump Installation
Figure 10-10 10-010
11. Install the mounting bolt (with spring lock washer
and flat washer) on the left-hand side of the tan-
dem pump, at 85 ft.-lb. with blue loctite.
Figure 10-11
Figure 10-12 10-008
Remove
Bolt
Remove
Bolt
Pump
Mounting
Plate
Pump Drive
Coupler
Install
Bolt
Pump
Mounting
Plate
Pump Drive
Coupler
Flywheel
Gear
