Rubber Track Loader
8. Hydraulic Reservoir Disassembly and Assembly
8-4

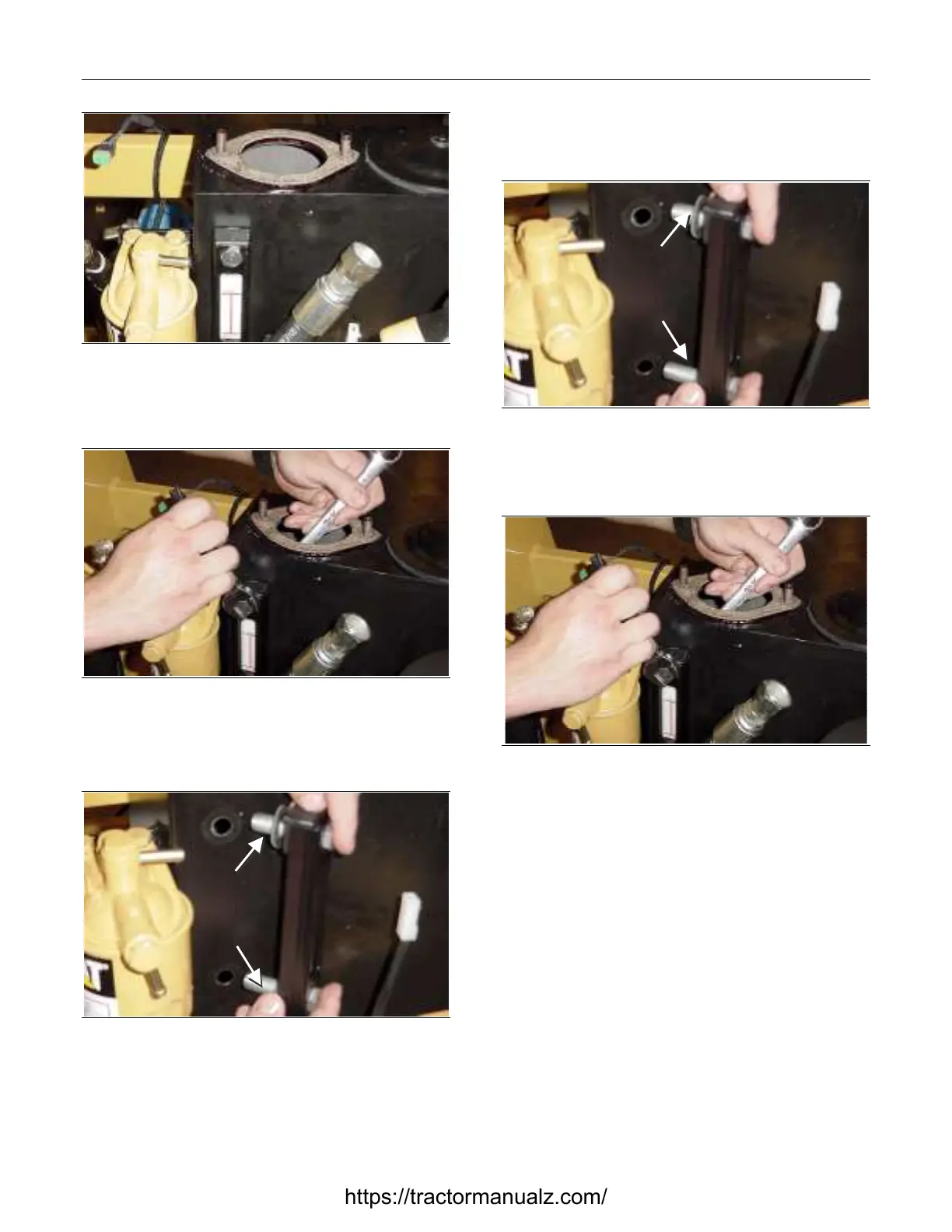

Figure 8-7 8-016
3. View of hydraulic reservoir with filter assembly
removed.
Figure 8-8 8-017
4. Reach inside the reservoir and remove the two
nuts that fasten the reservoir gauge to the
reservoir.
Figure 8-9 8-018
5. Pull the reservoir gauge and the two mounting
bolts/washers off the reservoir. DO NOT
misplace the rubber washers or the reservoir
will leak.
Reservoir Gauge Installation
Figure 8-10 8-018
1. Install the reservoir gauge in the reservoir using
the two mounting bolts/washers.
Figure 8-11 8-017
2. Reach inside the reservoir and install the two
nuts that secure the reservoir gauge to the
reservoir.
3. Install the filter assembly. Refer to Chapter 8.
Filter Assembly Installation.
4. Add manufacturer-approved hydraulic fluid.
Suction Screen Removal and
Installation
The tools required for suction screen removal and
installation are listed in Table 8-4. Use
manufacturer-recommended tools whenever
possible.
Table 8-4
Remove
Reservoir
Gauge with
Mounting
Bolts/Washers
Insert
Reservoir
Gauge with
Mounting
Bolts/Washers
