ASV RC-50 Service & Repair Manual

Rubber Track Loader
9. Loader/Transmission Controls Disassembly and Assembly
9-8

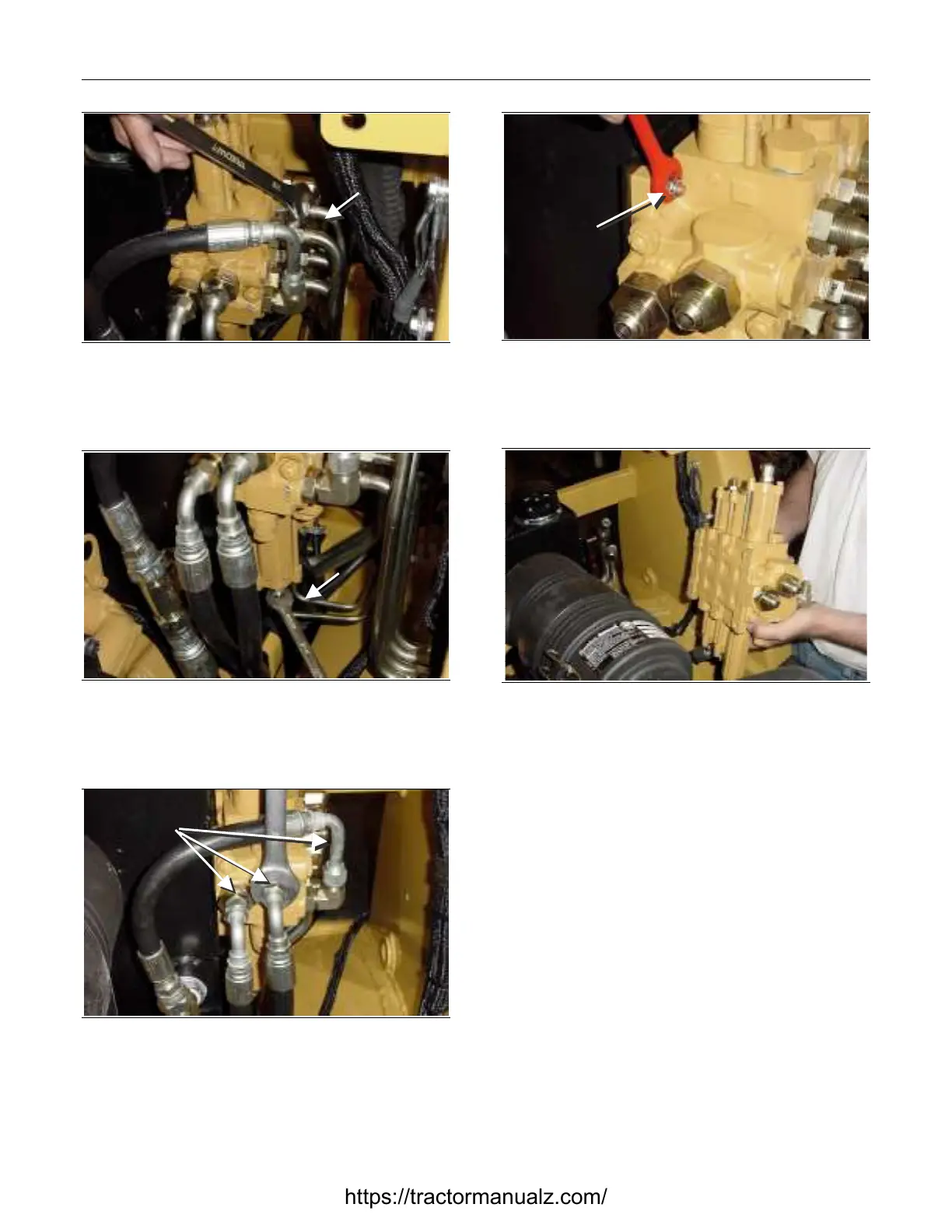

Figure 9-29 9-013
7. Remove the tubes from the side of the loader
valve. Cap the tubes and fittings.
Figure 9-30 9-014
8. Remove the tubes from the bottom of the loader
valve. Cap the tubes and fittings.
Figure 9-31 9-015
9. Remove the hoses from the end and side of the
loader valve. Cap the hoses and fittings.
Figure 9-32 9-016
10. Remove the nuts from the four bolts that secure
the loader valve to the hydraulic reservoir.
Figure 9-33 9-017
11. Remove the loader valve from the engine com-
partment.
Remove
Tubes
Remove
Tubes
Remove
Hoses
Remove
Nuts
