Rubber Track Loader

14. Hydraulic Pressure Check & Adjustment

14-3

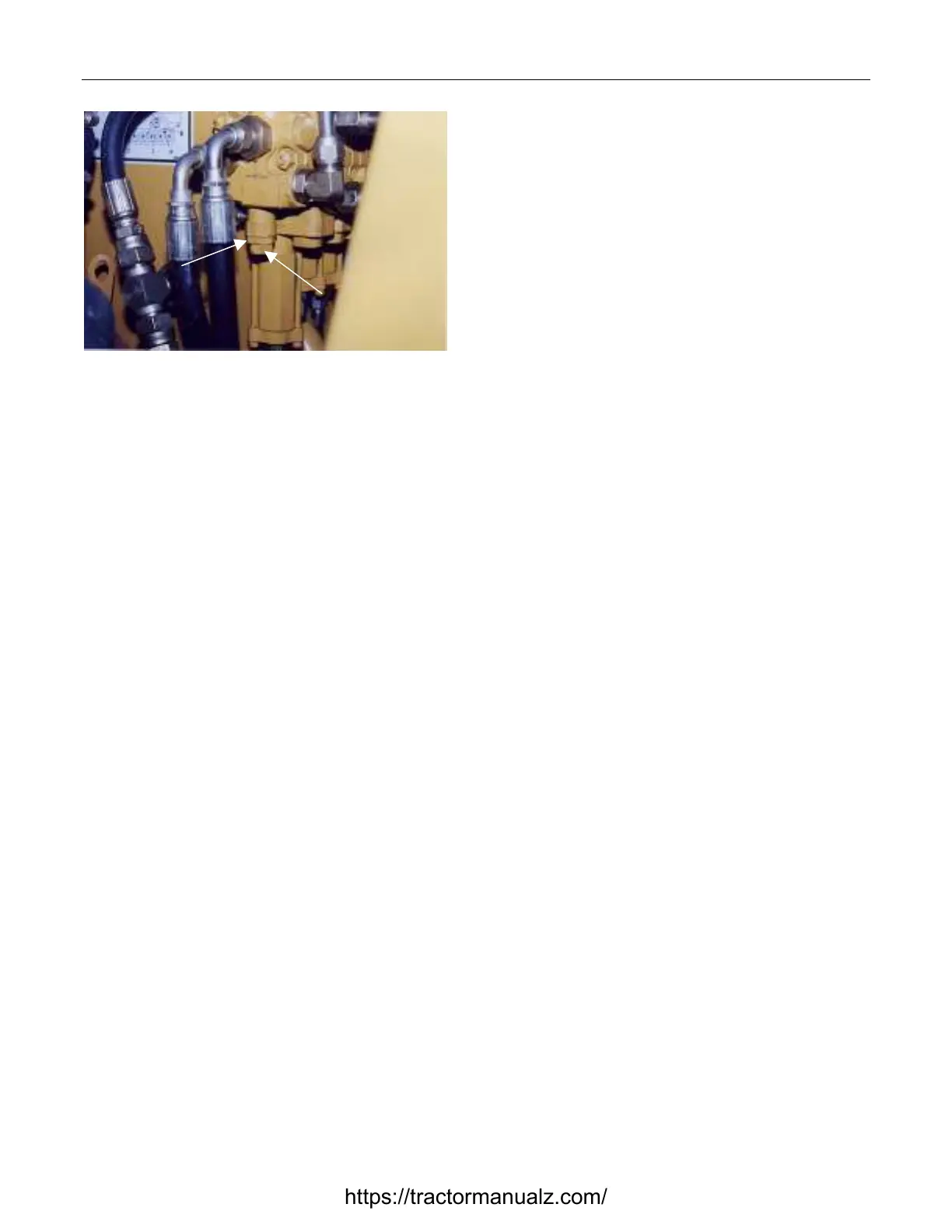

Jam Nut

Adjustment

Screw

Figure 13 10-113

5. To adjust the auxiliary pressure, loosen the jam

nut and turn the adjustment screw in with an al-

len wrench to increase pressure and turn screw

out to decrease pressure. Tighten jam nut when

after adjustment has been made. DO NOT ex-

ceed 3,000 psi.
