ASV RC-50 Service & Repair Manual

All Surface Loader
7. Radiator/Oil Cooler Disassembly and Assembly
7-3

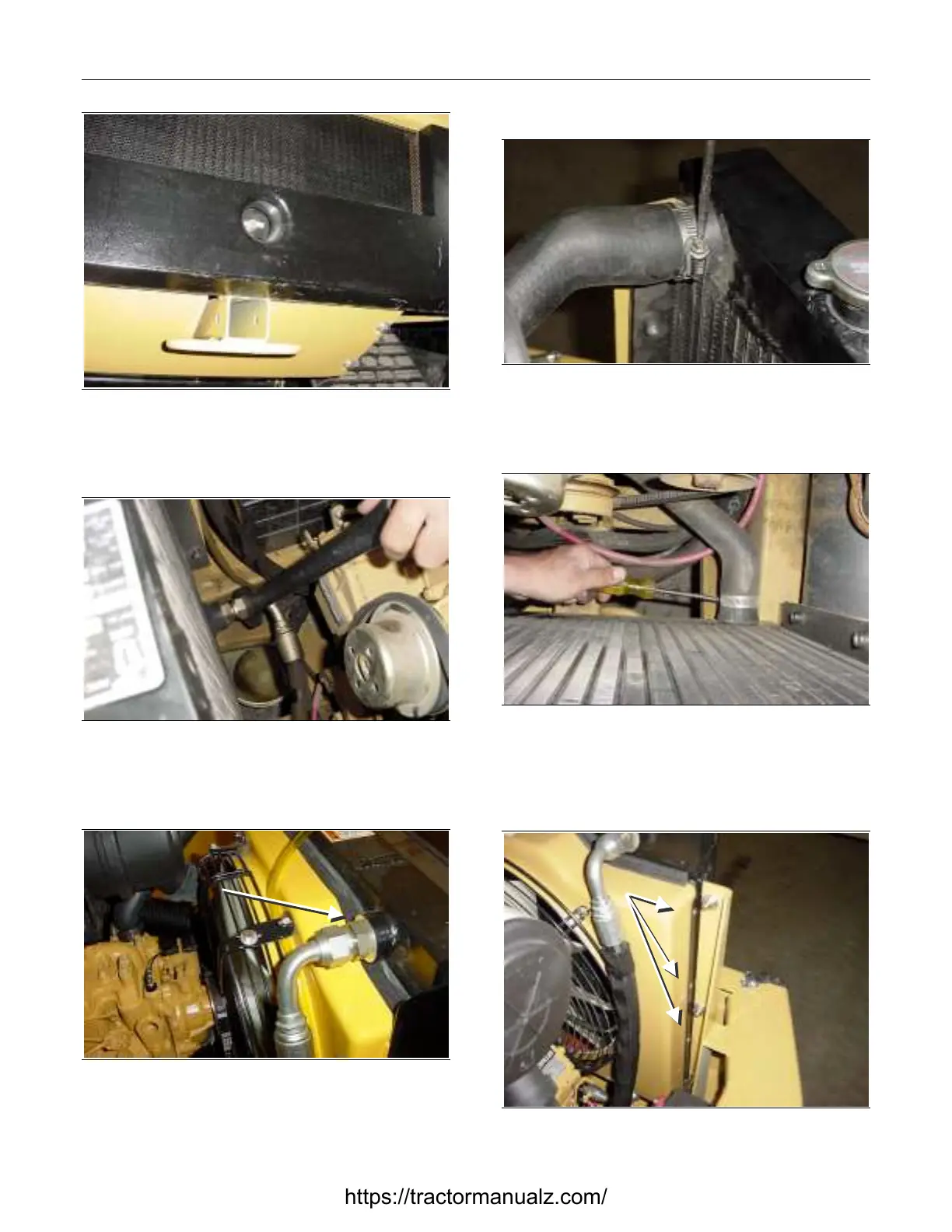

Figure 7-2 7-008
2. Drain the coolant using the petcock on the bot-
tom of the radiator.
Figure 7-3 7-010
3. Remove the lower hose from the oil cooler sec-
tion. Cap the hose and fitting.
Figure 7-4 7-002
4. Remove the upper hose from the oil cooler sec-
tion. Cap the hose and fitting.
Figure 7-5 7-011
5. Remove the upper hose from the radiator sec-
tion. Cap the hose and fitting.
Figure 7-6 7-012
6. Remove the lower hose from the radiator sec-
tion. Cap the hose and fitting.
Figure 7-7 7-003
Remove
Hose
Remove
Bolts
