Rubber Track Loader
9. Loader/Transmission Controls Disassembly and Assembly
9-2
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.
! WARNING !
Lower all attachments and make sure the oil is cool
before removing any components or lines. Hot oil can
cause personal injury.
1. Lower the lift arms to the ground.
2. Turn the engine switch to the OFF position, and
disconnect the battery.
3. Relieve hydraulic pressure from the auxiliary
circuit.

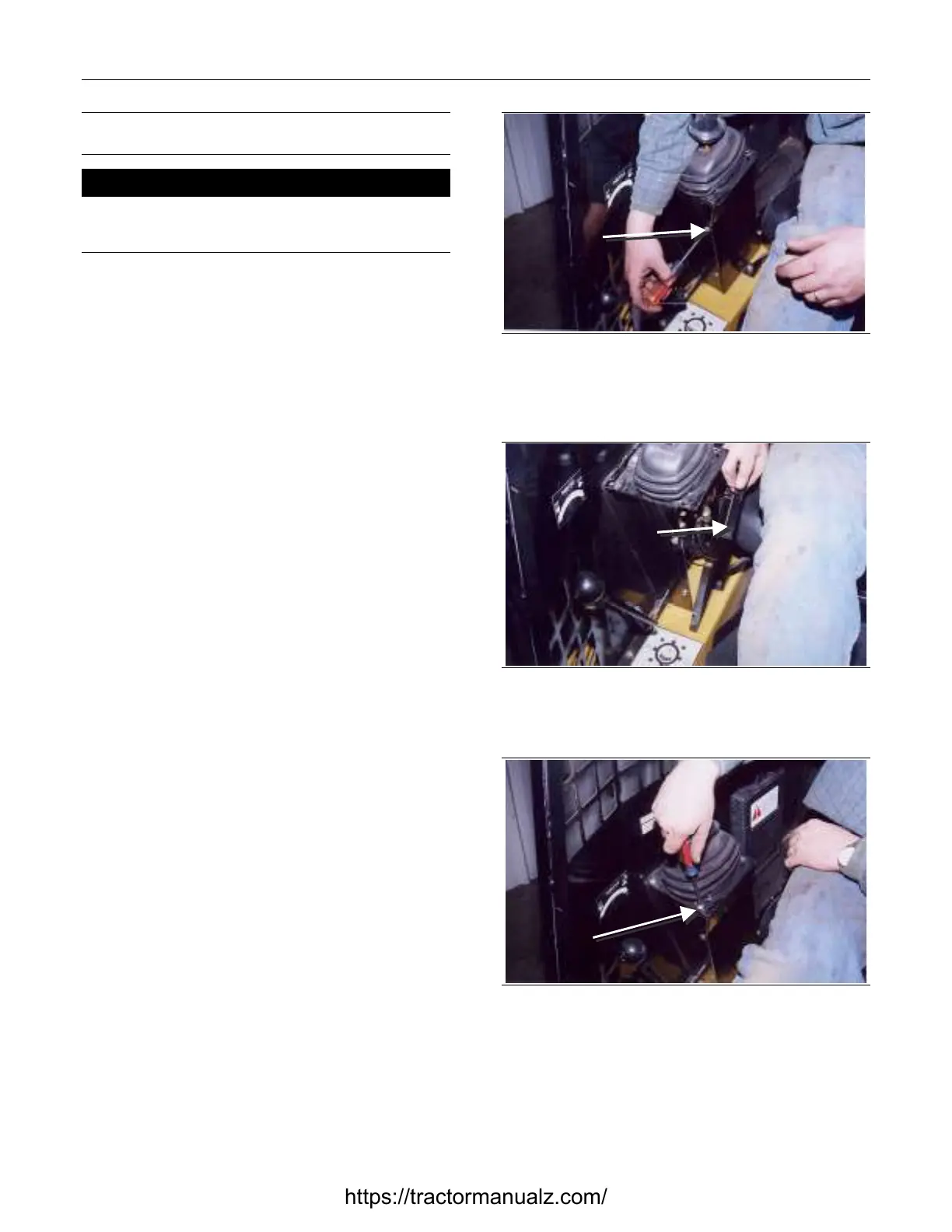

Remove
Screws
Figure 9-1 9-001
4. Remove the four retaining screws from the side
cover.
Remove
Side Cover
Figure 9-2 9-002
5. Remove the joystick side cover.
Remove
Screws
Figure 9-3 9-003
6. Remove the four retaining screws from the top
cover.
