Rubber Track Loader
9. Loader/Transmission Controls Disassembly and Assembly
9-5

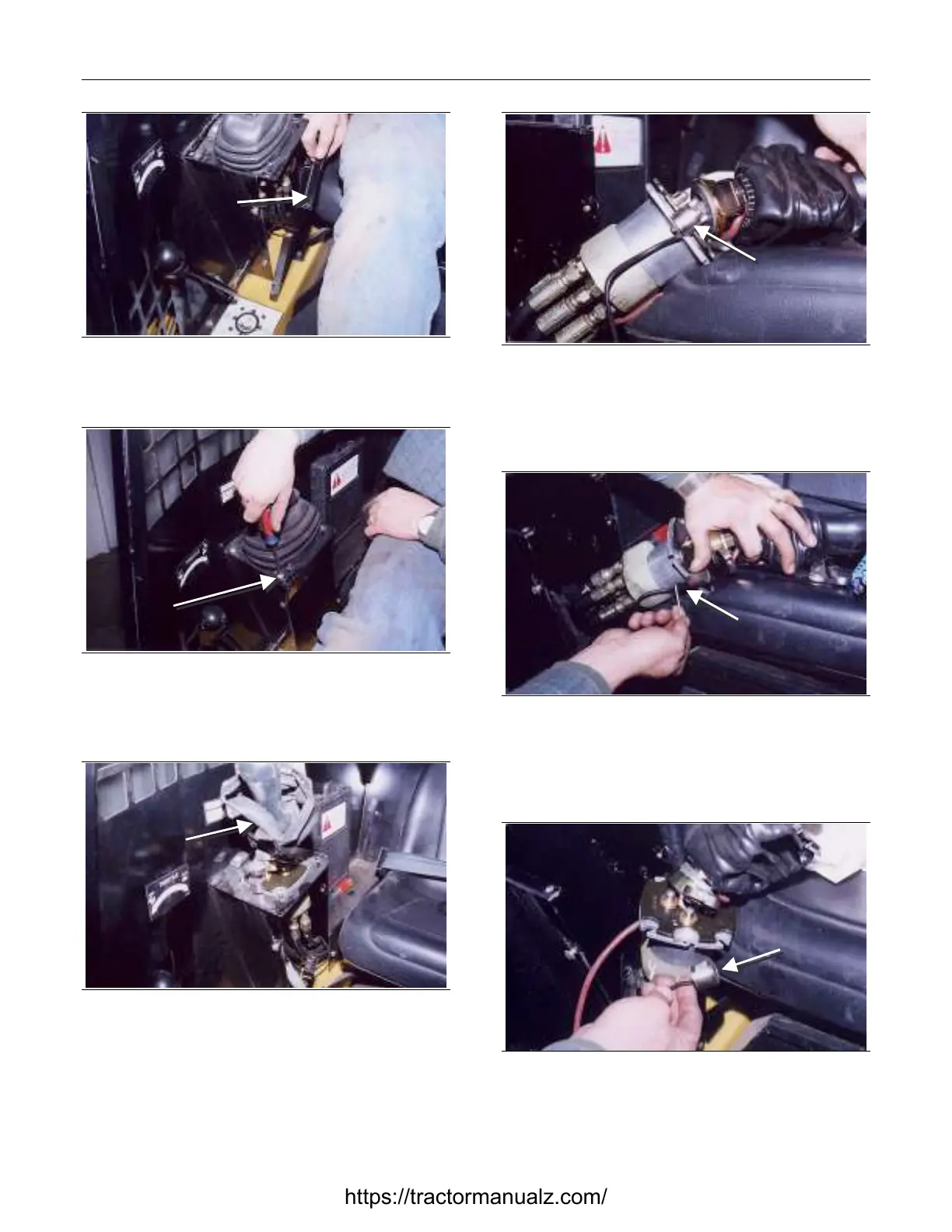

Remove
Side Cover
Figure 9-14 9-002
2. Remove the joystick side cover.
Remove
Screws
Figure 9-15 9-003
3. Remove the four retaining screws from the top
cover.
Pull the
Boot Up
Figure 9-16 9-007
4. Remove the rubber boot from the base of the
joystick and pull the boot up.
Loader Float
Magnet
Figure 9-17 9-008
5. Remove the control from the console and locate
the loader float magnet at the front of the con-
trol.
Remove
Screw
Figure 9-18 9-009
6. The loader float magnet is held in place by an
allen screw at the bottom of the magnet. Re-
move this screw.
Remove
Magnet
Figure 9-19 9-010
7. Remove the loader float magnet.
