12. Loader Disassembly and Assembly
12-2
NOTICE
Collect and contain liquids in a suitable container. Dispose
of all liquids according to local regulations and mandates.
Note: During disassembly, cap all hoses and fittings to
prevent fluid loss and contamination of the system fluids.

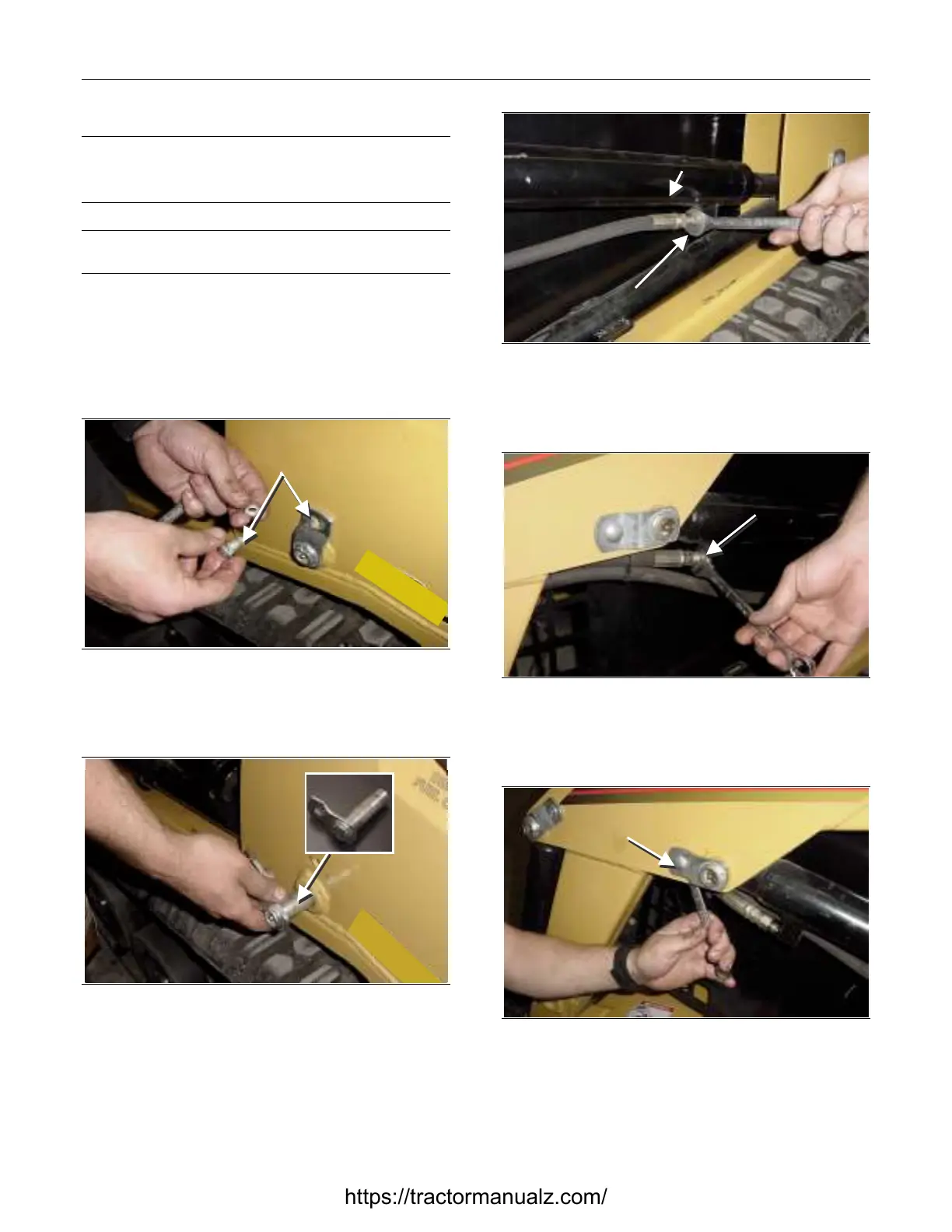

1. Lower the loader arms onto a jackstand with the
arms resting about 6 inches off the ground.
2. Turn the engine start switch to the OFF position.
Figure 0-1 13-001
3. Remove the bolt on the pin assembly on the
loader tower.
Figure 0-2 13-002
4. Remove the pin assembly.
Figure 0-3 13-003
5. Remove and cap the hose on the ram end of the
cylinder.
Figure 0-4 13-004
6. Remove and cap the hose on the loader end of
the cylinder.
Figure 0-5 13-005
7. Remove the forward pin assembly bolt.
Remove
Hose
Remove
Pin
Remove
Bolt
Remove
Hose
Remove
Bolt
Lift
Cylinder
