ASV RC-50 Service & Repair Manual

All Surface Loader
12. Loader Disassembly and Assembly
12-4

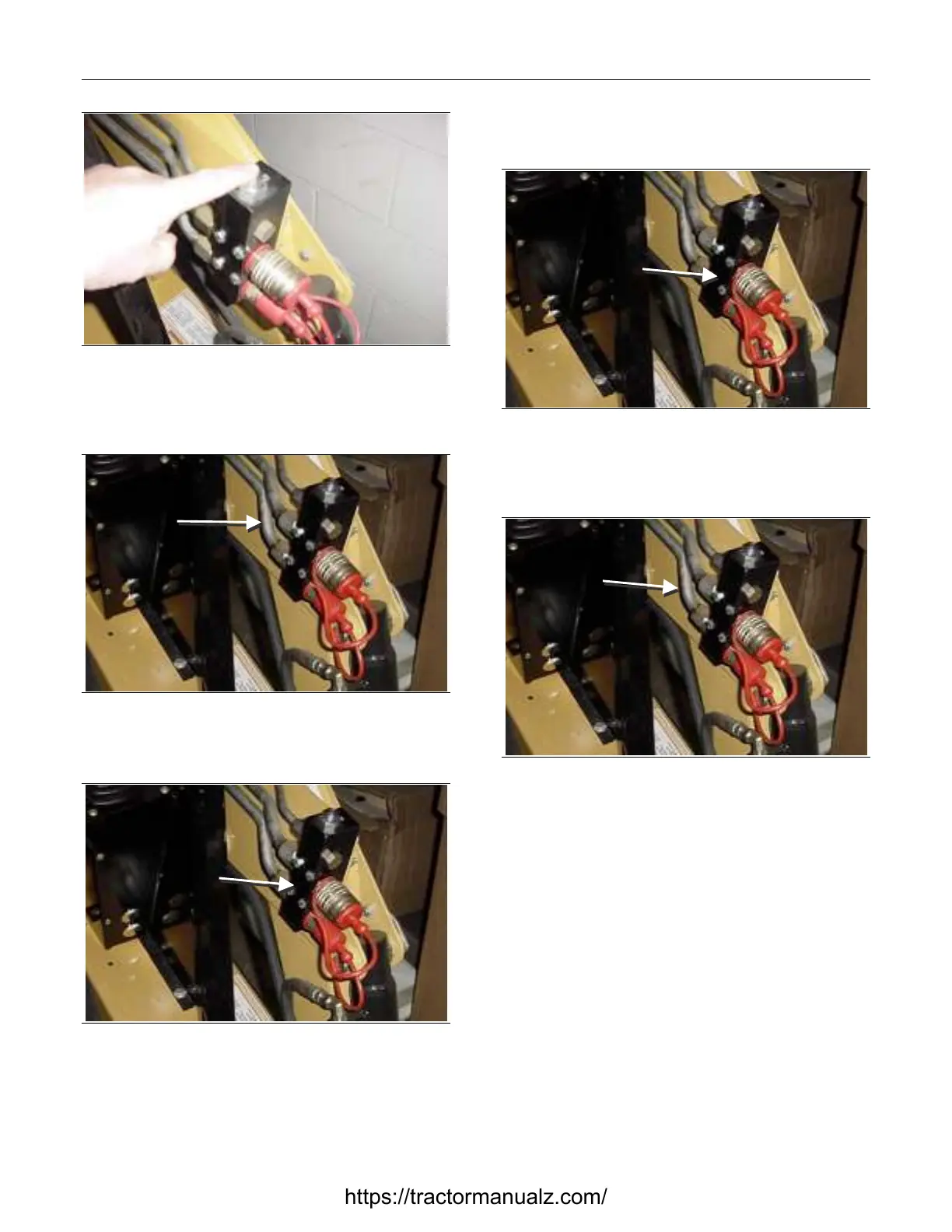

Figure 0-8 13-008
3. Press the button on top of the valve to release
hydraulic pressure.
Figure 0-9 13-009
4. Remove and cap all hoses.
Figure 0-10 13-009
5. Remove the four bolts that secure the low-flow
relief valve to the loader frame and remove the
valve.
Quick Coupler Block / Pressure Release
Valve Installation
Figure 0-11 13-009
1. Install the four bolts that secure the low-flow
relief valve to the loader frame.
Figure 0-12 13-009
2. Install all hoses.
Remove
Hoses
Remove
Bolts
Install
Bolts
Install
Hoses
