Chapter 4 – Functions of the instrument
UM-23100B-U User manual ATEQ F CLASS Page 51/90

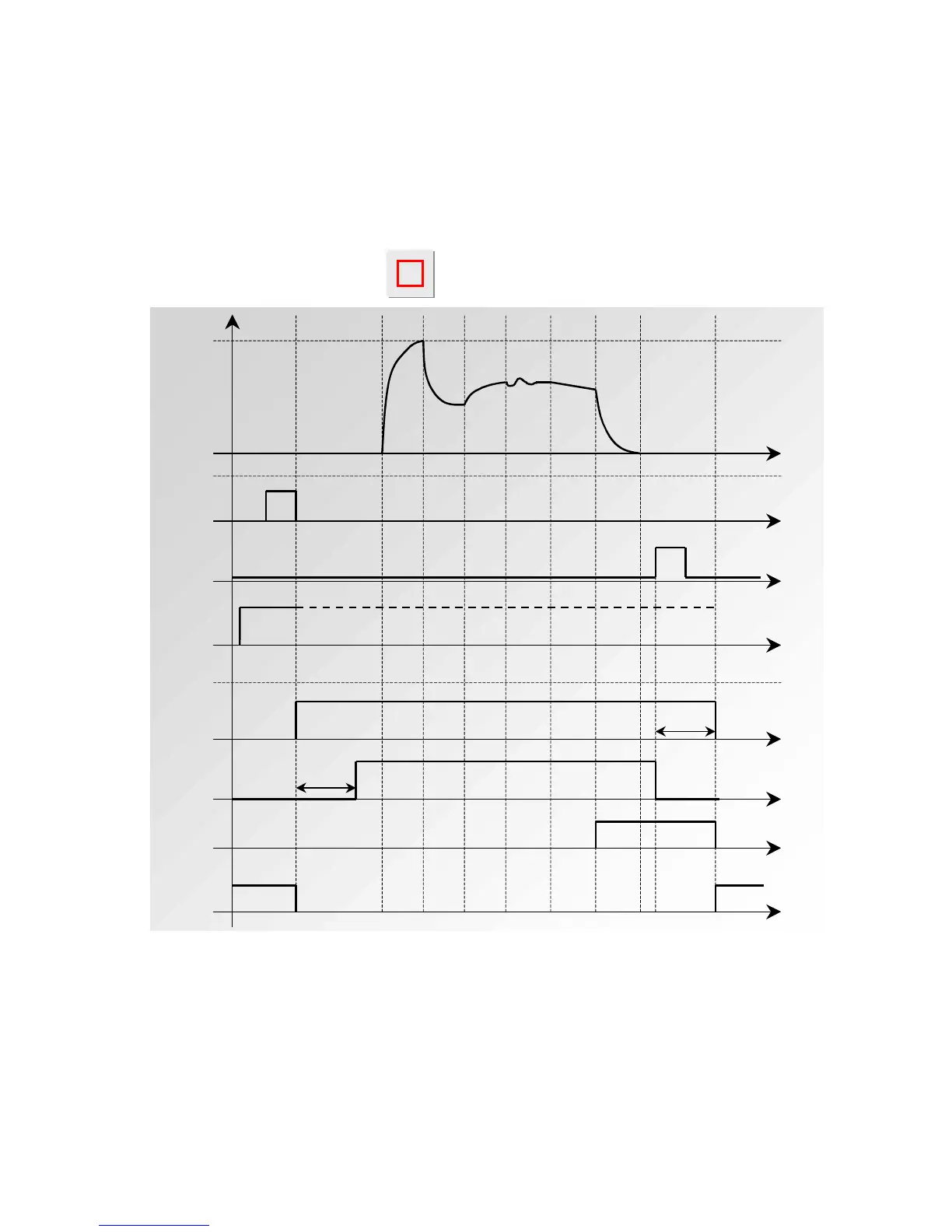

d) "RESET + dump" cycle end (automatic dump)
If the part is OK, the part OK relay is activated as soon as the test time is finished, and
remains so (only in position 2) until the next cycle is launched.
At the end of the dump time, the end of cycle relay is activated.
If the part is Bad, as soon as the test time is over, the bad part relay is activated and
remains so until the end of the cycle. The dump is then carried out. The cycle can be
ended by pressing the
RESET key.
PRESSURE
START
Reset
AP-FP-DFSTD
t
t
t
t
t
t
t
Program
number
automatic
connector A
t
Fail part
B time
B time
Automatic
Connector B
End of cycle
Test cycle
Orders actions
t mini
t mini
t mini
Active
Inactive
Active
Inactive
The active program is the one selected before starting up. It remains active even if the
program inputs on the connector are no longer activated. This selection can only be
modified during the inter cycle period.
To return to program 1, when a cycle is not in progress, press any of the program
selection inputs.
