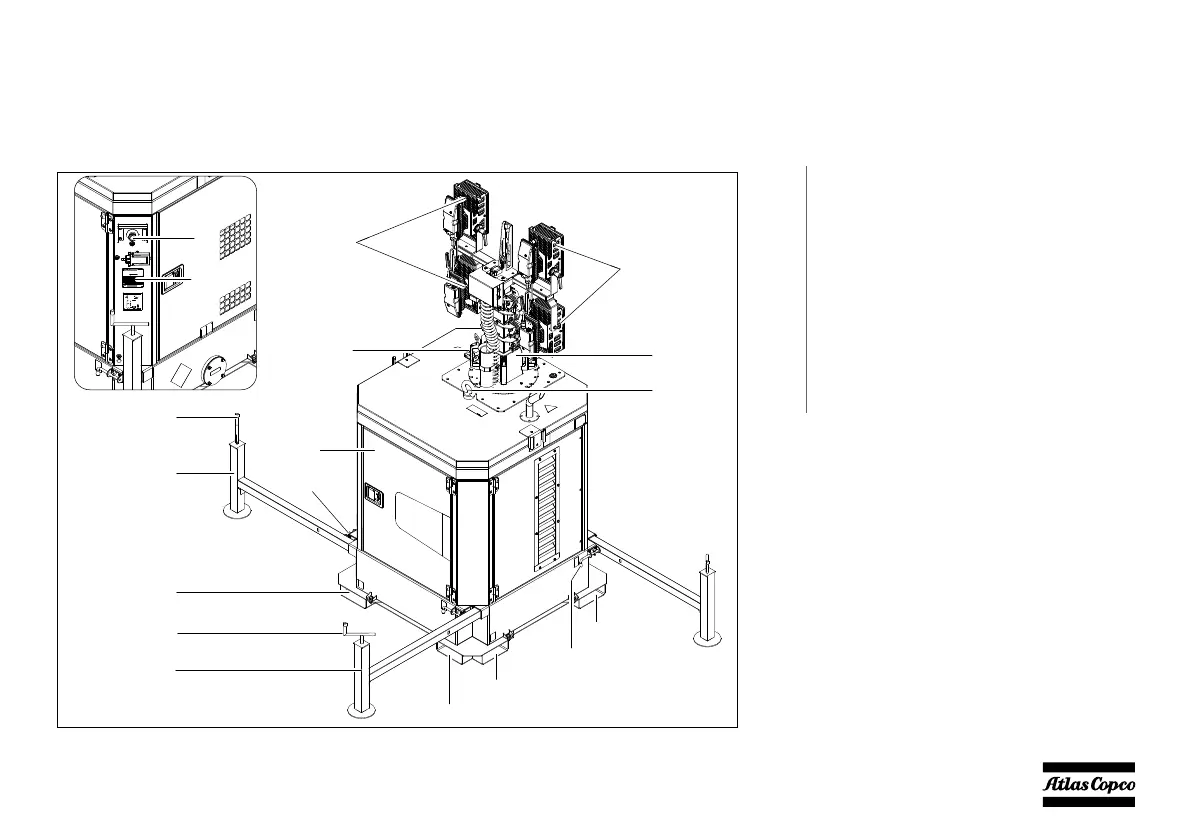

2 Main parts
2.1 General description
The HiLight B6+ light tower provides a spillage free frame and 4 LED floodlights of 350 W each. The HiLight B6+ is very useful for construction sites where no electricity
nor lighting is available.
CP Control panel
DP Data plate
EP Earth pin (optional)
FL Floodlights
FS Forklift slots
LE Lifting eye
LH Levelling handle, to adjust the height of the
supporting foot
LPS Locking pin stabilizer
MMast
RHM Rotating handles mast
ST Stabilizer and supporting foot
S2 Emergency stop button
M
LE
FL
FL
RHM
CP
EP
LH
ST
FS
ST
LH
FS
FS
LPS
FS
S2
