4.4.6 Setting the Lc1003™ scheduler
To access the scheduler editor, navigate to one of the
scheduler pages and press and hold the STOP/
RESET MODE button. Use the STOP/ RESET
MODE (-) or MANUAL/ START MODE (+) buttons
to cycle through the editor. To edit the parameters,
press the AUTO MODE button and then use the
STOP/ RESET MODE (-) or MANUAL/ START
MODE (+) buttons to change the value. The displayed
value or icon begins to flash to show it is being edited.
Press the AUTO MODE button to accept the new
value. Press and hold the AUTO MODE button to exit
the editor and save the changes.

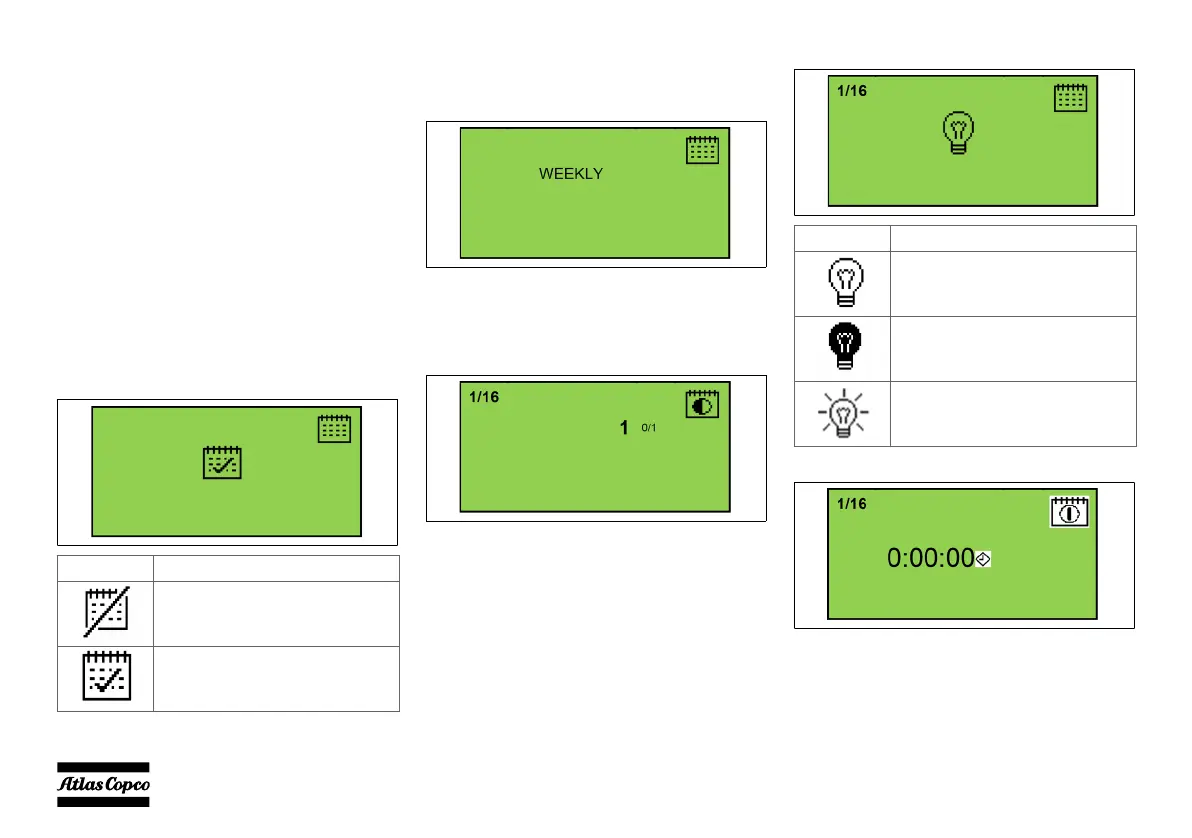

The scheduler pages on the instrumentation screen list
the following for 8 scheduled start/stop sequences.
4.4.6.1 Scheduler enable option
4.4.6.2 Schedule period
Choose between a Weekly, Monthly or Daily
repetition of the schedule.
4.4.6.3 Auto mode
Choose between the values 0 and 1, where 0 uses the
configured time and 1 uses sunrise and sunset
calculations.
4.4.6.4 Run mode
4.4.6.5 Start time
Display Description
Select to disable the scheduler.
Select to enable the scheduler.
Display Description
Select for Off Load.
Select for On Load.
Select for Lights only.
