Atlas Copco HiLight B6+ Kd ESF User Manual

- 76 -
7.4.6 External power input (230 VAC),
with battery charger

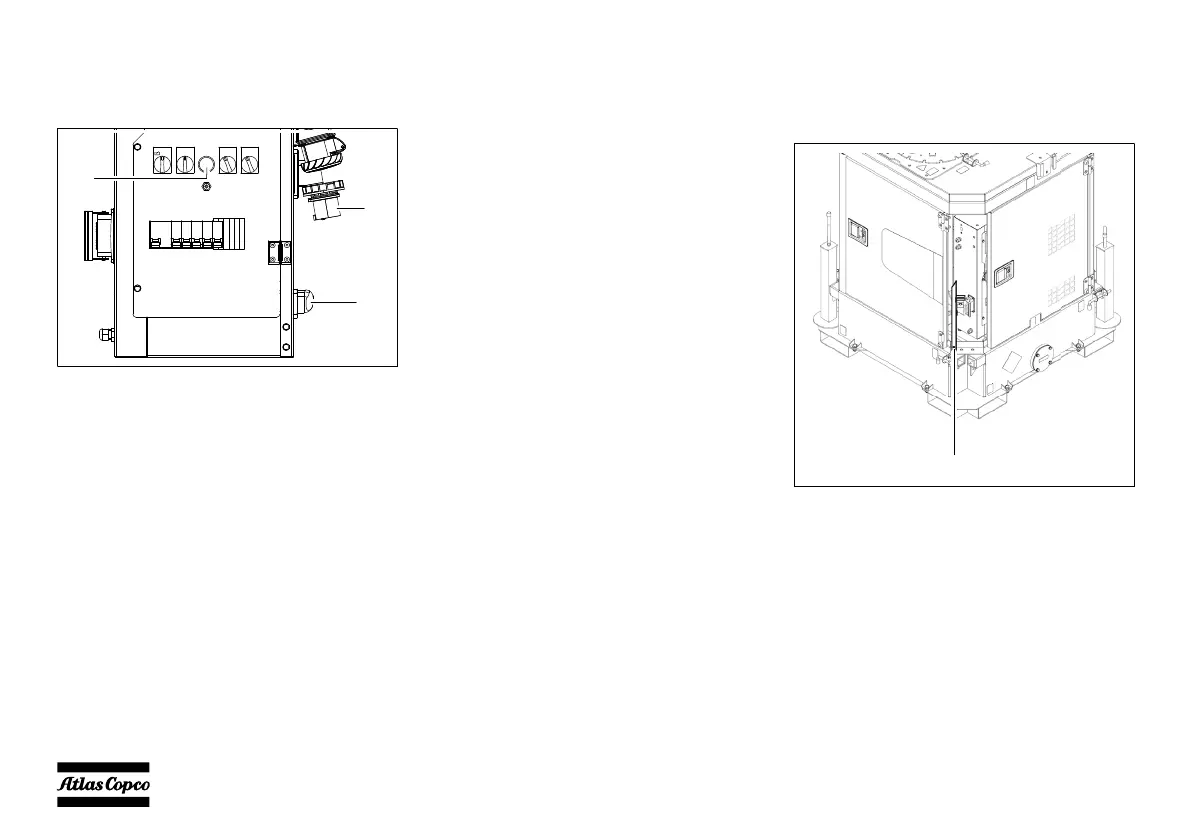

Overview
H16 ..... ECU alarm
Red lamp - alarm
S10 ..... Input power selector
Position 1: running on Diesel engine
Position 0: neutral position
Position 2: running on external mains
X2 .......Inlet socket for connection to the
mains (32A)
7.4.7 Override fuel shutdown
With this option installed, the floodlights will switch
off automatically one by one when the unit is running
out of fuel (< 20%).
– At 20% fuel level:
Lamp 1 switches off
– At 15% fuel level:
Lamp 2 switches off
– At 12% fuel level:
Lamp 3 switches off
– At 10% fuel level:
Lamp 4 switches off
To install this option wiring should be changed on
customer terminal X25. Make a bridge between
terminals 10.11, on X25-10 and X25-11.
Refer to circuit diagram 1640 0665 51_01 for the
correct connections.
7.4.8 Earth pin
The earth pin (1), to be connected to the light tower’s
earth terminal is located at the bottom of the frame on
the outside.
0
1
0
DO
UP
MAN
AUTO
0
1
X2
S10
H16
1
00_00_HiLight B6+_EN.book Page 76 Thursday, September 2, 2021 11:50 AM
