7.4.2 Power output connections
(120V/20A)
Following 120V sockets are also available as an
option:
– Socket GFCI Duplex 20A
– Twist Lock Socket 60Hz 20A

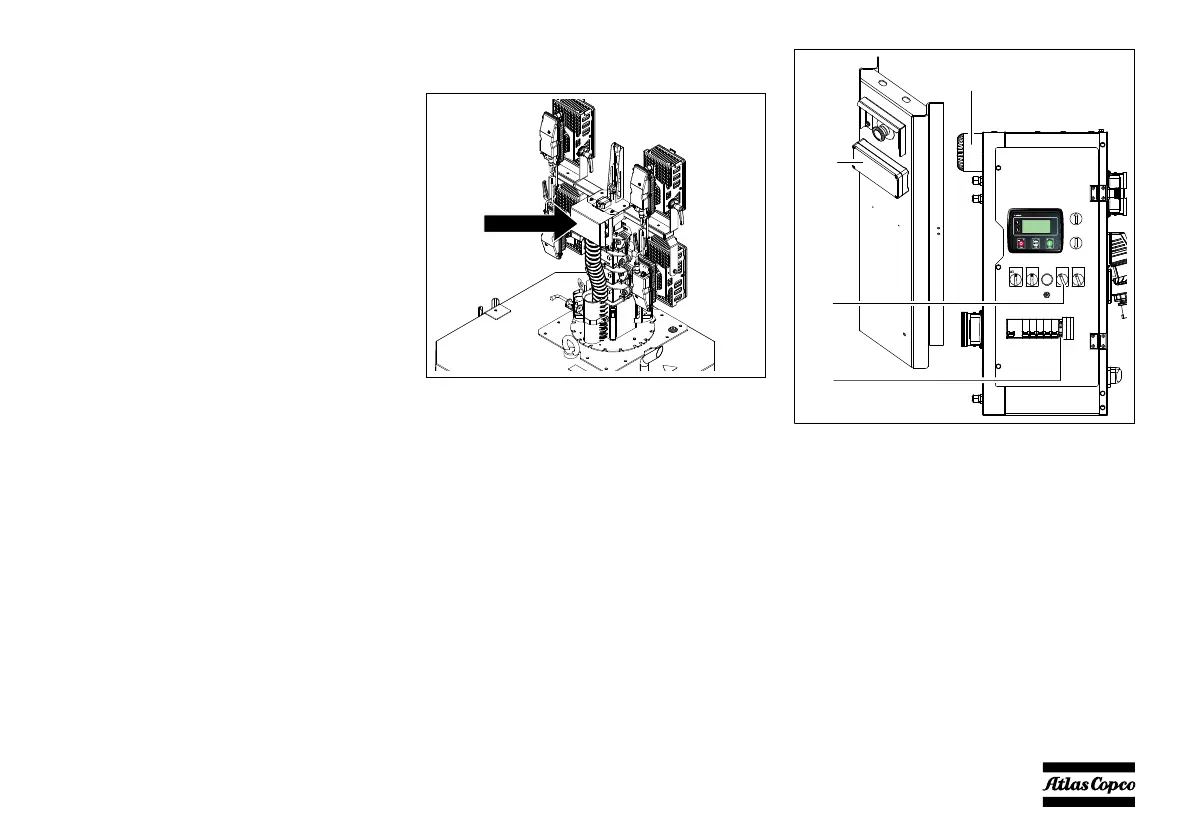

7.4.3 Auto start with photocell on
mast head
The photocell measures the luminosity and can be
activated by sunlight.
P7........Photocell sensitivity regulator
Is used for regulating the luminosity
sensitivity level of the photocell.
S25......Auto positioning switch
Put the switch in position AUTO to activate
ASM (Auto Rise and Lower Safety Mast).
Put the switch in position MAN to de-
activate ASM.
Z1........Buzzer
An intermittent alarm sound indicates that
the mast is being extended/lowered.
L
c
1003
0
1
0
DO
UP
MAN
AUTO
0
1
P7.1
P7
S25
Z1
