3 Installation and connection
3.1 Lifting

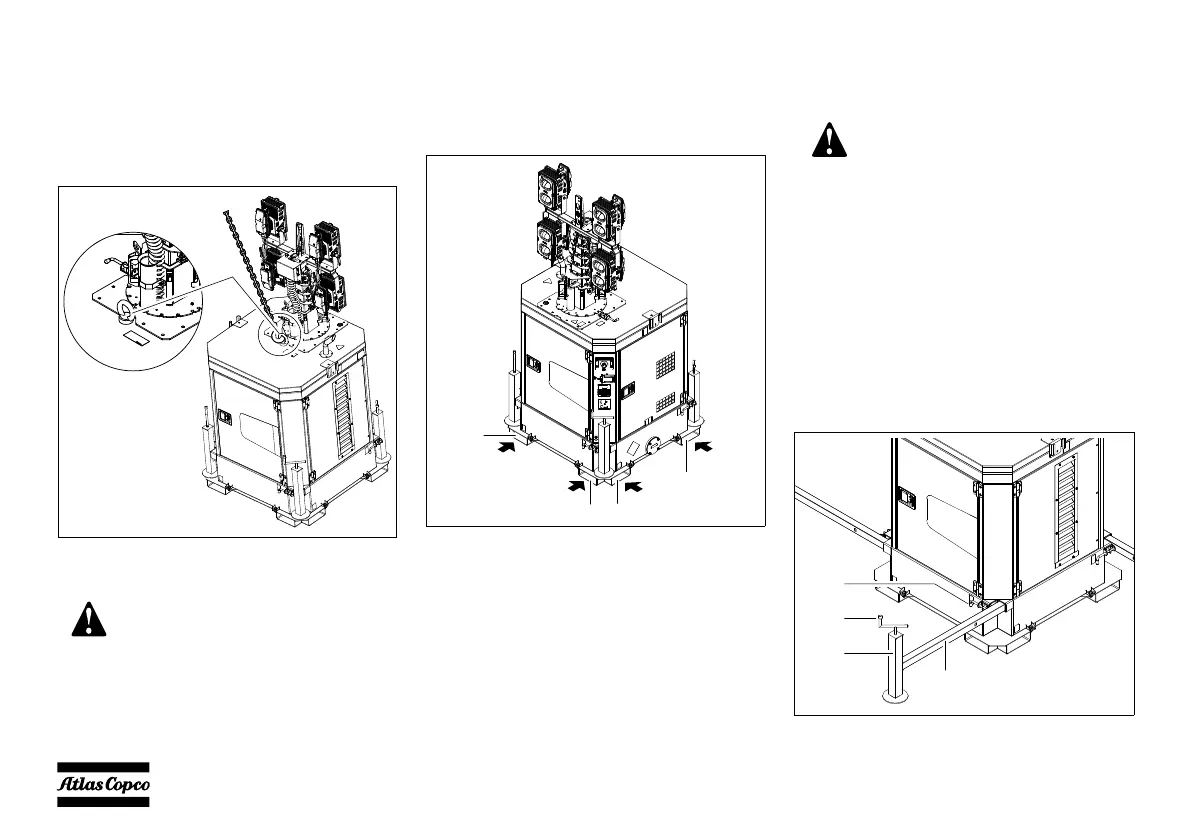

The lifting eye (1), to lift the light tower by means of
a hoist, is integrated in the bodywork and easily
accessible from the outside.
While lifting, the light tower will be tilted towards the
mast to avoid damage to the floodlights.
To be able to lift the light tower by means of a forklift,
forklift slots (2) are provided in the frame at each side
of the unit.
3.2 Positioning and transport
3.2.1 Positioning for operation
Follow the steps below to position the light tower:
1. Place the light tower on a horizontal, even and
solid floor.
2. Make sure that the mast is down.
3. To extend the stabilizers; release the locking pin
of each stabilizer (1) by lifting it up and pull the
supporting foot (2) at the maximum extension of
the stabilizer (3).
Lifting acceleration and deceleration
must be kept within safe limits (max.
2 g). Helicopter lifting is not allowed.
1
2
2
2
2
The operator is expected to apply all
relevant safety precautions,
including those mentioned on page 9
to page 14 of this booklet.
1
4
2
3
