- 61 -
5.5.4 Air cooling circuit
5.5.4.1 Air flow

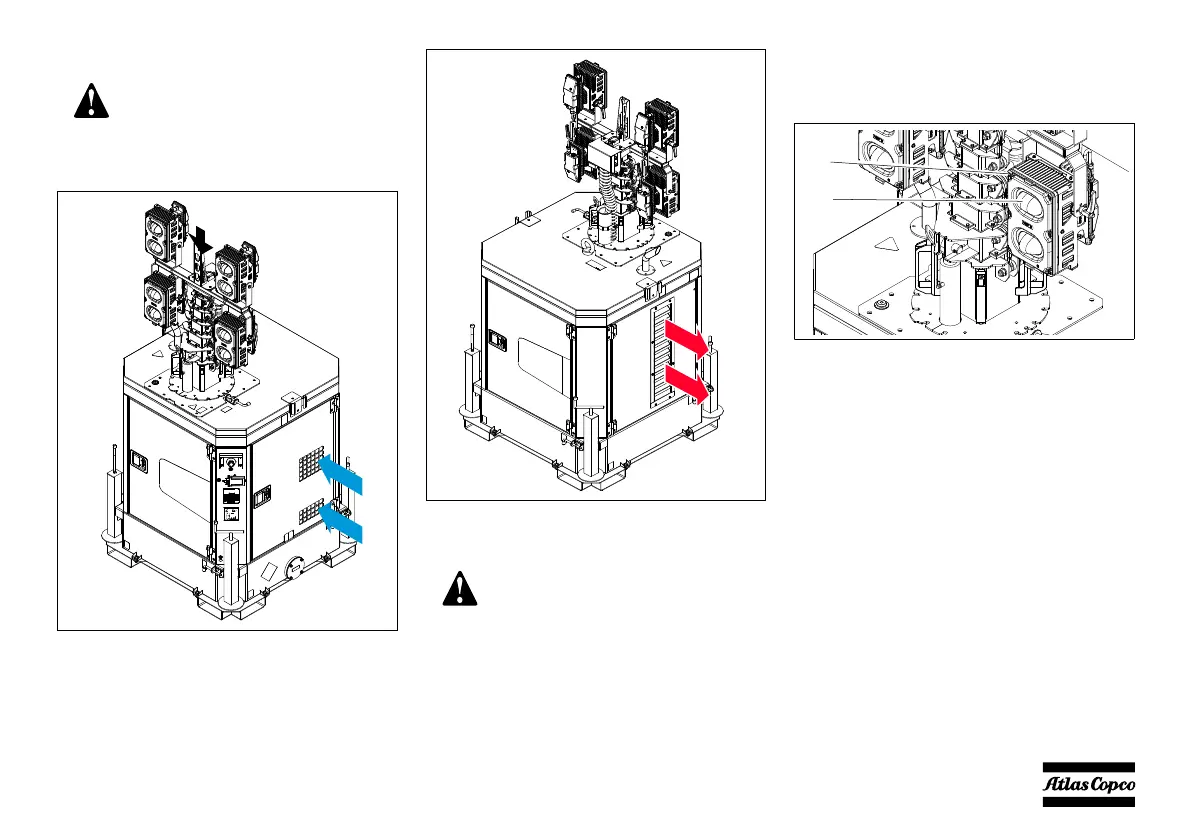

The air flows from the grids in the side towards the
grids on the other side of the unit.
5.5.5 Replacing the LEDs
1. Loosen and remove the 6 screws (1) and remove
the protection lenses (2) in front of the LEDs.
2. Disconnect the LED power wires.
3. Replace the LED and connect the power wires to
the new LED.
4. Reinstall the protection lenses and the 6 screws.
Carefully tighten the 6 screws with a screwdriver.
Check every day that none of the air
cooling circuits are clogged with
dust or other particles. If any circuit
is obstructed, it must be cleaned.
Ensure radiator and airpath
cleaning.
2
1
