4.4.2 Module display
4.4.2.1 Home page
The home page is the page displayed when no other
page has been selected:

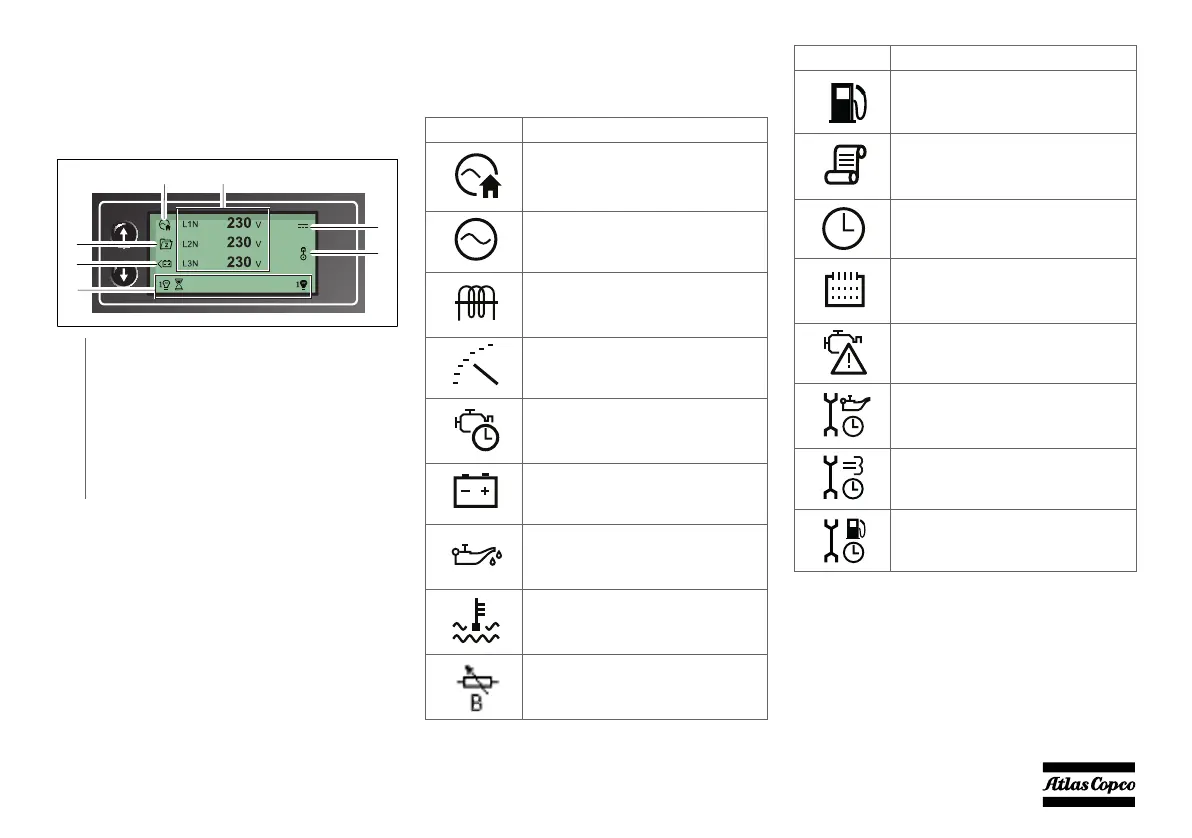

4.4.3 Icon overview
4.4.3.1 Instrumentation icons
1 Instrumentation icon
2 Active configuration
3 FPE/Auto run
4 Light output icons
5 Alarm icon
6 Mode icon
7 Instrumentation and Unit e.g. voltage reading
6
5
7
2
1
3
4
Display Description
The default home page which
displays Generator voltage and the
Auto Run icon
Generator voltage and frequency
instrumentation screen
Current and load instrumentation
screen
Engine speed instrumentation
screen
Hours run instrumentation screen
Battery voltage instrumentation
screen
Oil pressure instrumentation screen
Coolant temperature
instrumentation screen
Analogue input configured as
digital.
Fuel sender instrumentation screen
Appears when the event log is
being displayed
Current time held in the unit
The current value of the scheduler
run time and duration
ECU diagnostic trouble codes
Oil Filter maintenance timers
Air Filter maintenance timers
Fuel Filter maintenance timers
Display Description
