2.4 Electrical features
The electrical features described in this chapter are
standard provided on this light tower. For all optional
electrical features, see chapter “Overview of the
electrical options” on page 71.
2.4.1 Control and indicator panel
2.4.1.1 Units with Lc1003™ controller

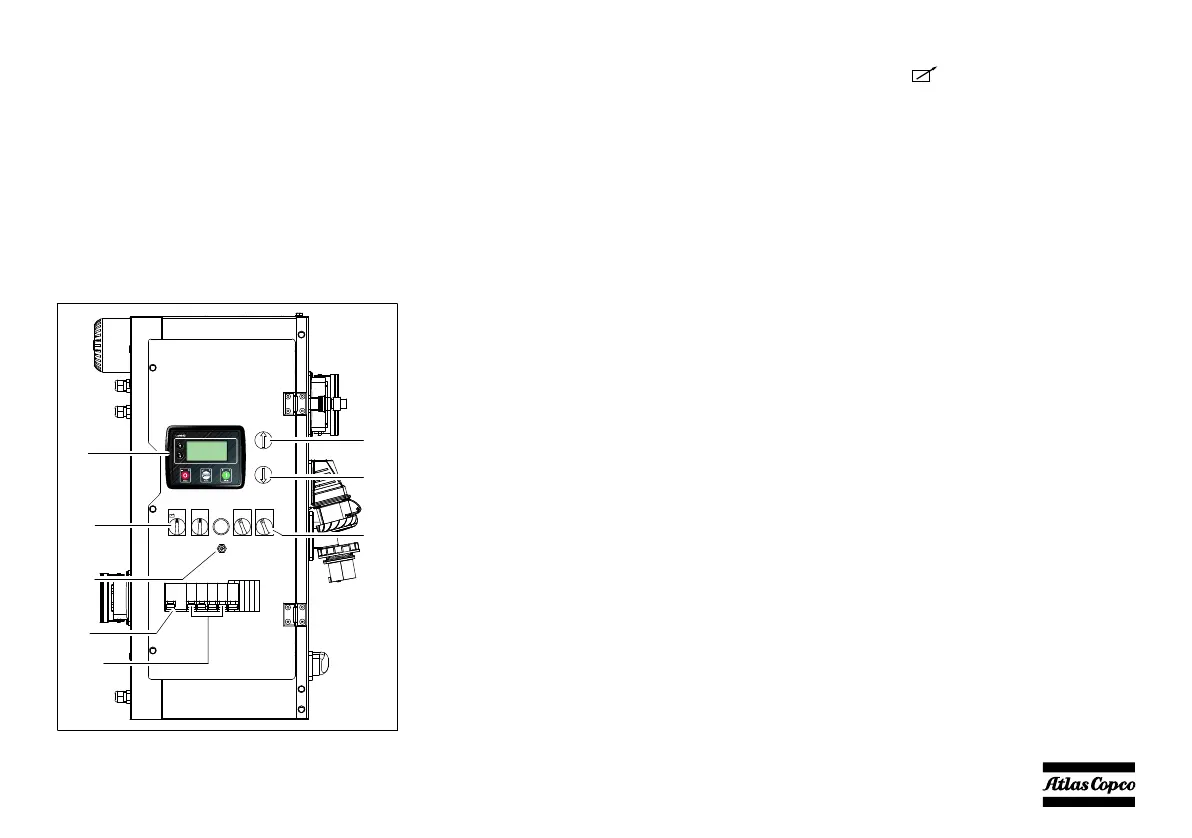

Overview control panel
To operate the light tower a control panel is installed.
A1 .......Lc1003™ digital controller
F10...... Fuse 10A
The fuse trips when the current from the
battery to the engine control circuit exceeds
its setting. The fuse can be reset by pushing
the button.
Q1 .......General circuit breaker with ELCB or
differential protection
Interrupts the power supply when a short-
circuit occurs at the load side, or when the
earth leak detector (30 mA) or the
overcurrent protection are activated. It must
be reset manually after eliminating the
problem.
Q2-5.... Circuit breakers for lamps
The control panel provides 4 circuit breakers
for the lamps (one for each lamp). The 4
lamps are controlled by the Lc1003™
controller, by means of relays.
S11 .....Photocell ON/OFF switch
Switches Photocell sensitivity regulator P7
on or off.
Position O: Operation by timer,
(photocell disconnected)
Position I:
Operation by timer-photocell
S20......REMOTE/ON/OFF switch
Position : REMOTE START, for Auto
Photocell or weekly timer
start option
Position I: ON, for manual start
Position O: OFF, to isolate the controller
S50......UP button
Push the UP button to extend the mast.
S51......DOWN button
Push the DOWN button to lower the mast.
Features of the Lc1003™ controller
The dedicated Lc1003™ controller provides unique
features and benefits for light tower application, such
as:
– reliability/functionality: sequence 4 lighting
outputs
– 16 event scheduler: weekly timer
– fuel efficiency: auto lamps shutdown
– user friendly operation
– remote start with photocell as an option
Lc1003
0
1
0
DO
UP
MAN
AUTO
0
1
A1
S20
Q1
Q2-5
S50
S51
S11
F10
