- 20 -
2.4.1.2 Units with Smart Mast™

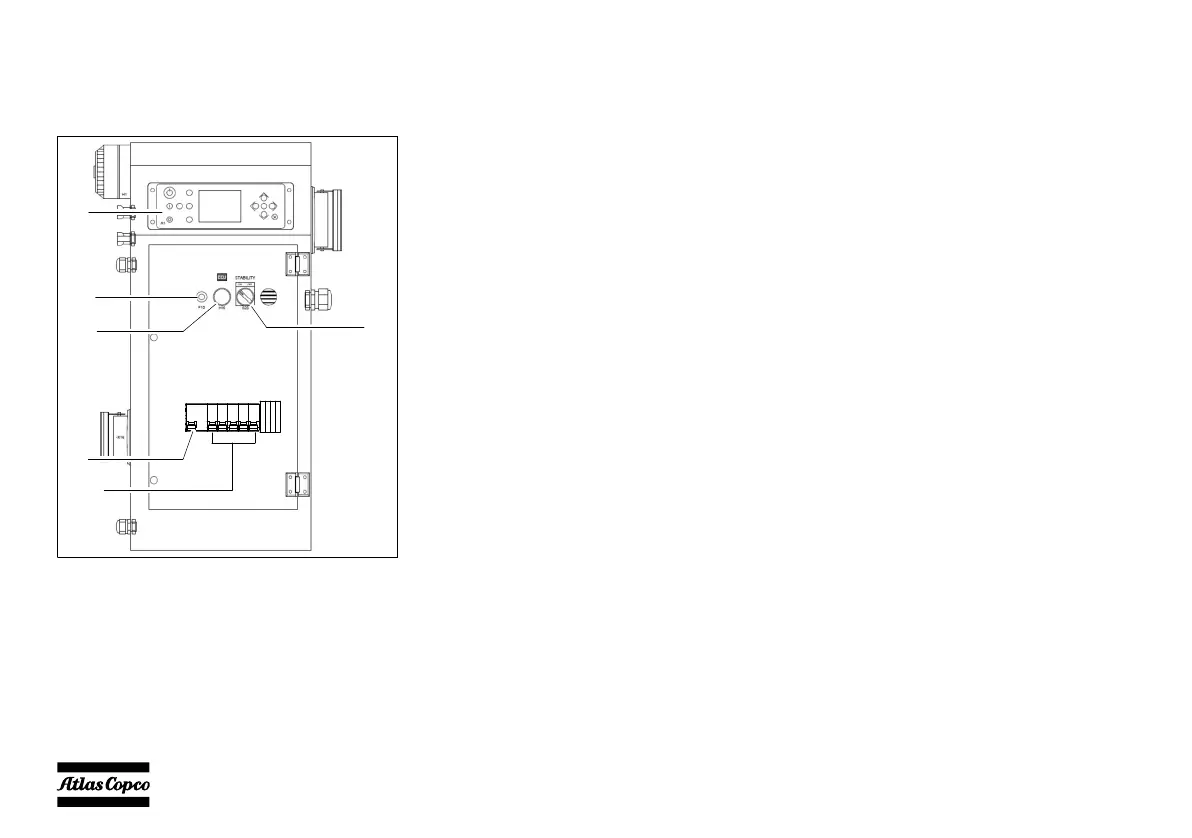

Overview control panel
To operate the light tower a control panel is installed.
A1 .......Digital controller
F10...... Fuse 10A
The fuse trips when the current from the
battery to the engine control circuit exceeds
its setting. The fuse can be reset by pushing
the button.
Q1 .......General circuit breaker with ELCB or
differential protection
Interrupts the power supply when a short-
circuit occurs at the load side, or when the
earth leak detector (30 mA) or the
overcurrent protection are activated. It must
be reset manually after eliminating the
problem.
Q2-6.... Circuit breakers
H16 .....Red lamp - Alarm
S23 .....Mast down switch
Features of the controller
The dedicated controller provides unique features and
benefits for light tower application, such as:
Autofill: produces the needed light to reach the
lighting level target.
Obstacle detection
Stability assistance
Impact detection
70 event scheduler: weekly timer
Reliability/functionality: sequence 4 lighting
outputs
Fuel efficiency: auto lamps shutdown
User friendly operation
Remote start with photocell
A1
F10
Q1
Q2-6
S23
H16
