Atlas Copco HiLight B6+ Kd ESF User Manual

- 72 -
7.4 Description of the electrical
options
7.4.1 Power output connections
(230V/16A)
A brief description of the optional outlet socket and
circuit breaker provided on the light tower is given
hereafter:
X1 .......1-phase outlet socket (230 V)
Provides phase L, neutral and earthing.
3 different versions are available:
- Socket CE 2P 16A
- Socket RIM 2P 16A
- Socket PIN 2P 16A
Q6 .......Circuit breaker for X1
Interrupts the power supply to X1 when a
short-circuit occurs at the load side, or when
the overcurrent protection (10 A) is
activated. When activated, Q6 interrupts
phase L and the neutral towards X1. It can be
activated again after eliminating the
problem.
Power specifications
The maximum power available when the lamps are
switched ON is as follows:
– 1300 W: lamps
– 1400 W: auxiliary sockets
– Total 2700 W
If the power demand exceeds 2700 W, the Lc1003™
controller will stop the HiLight B6+ (high power
shutdown).
The maximum power available when the lamps are
switched OFF is as follows:
– 230 VAC, 10 A: 2300 W

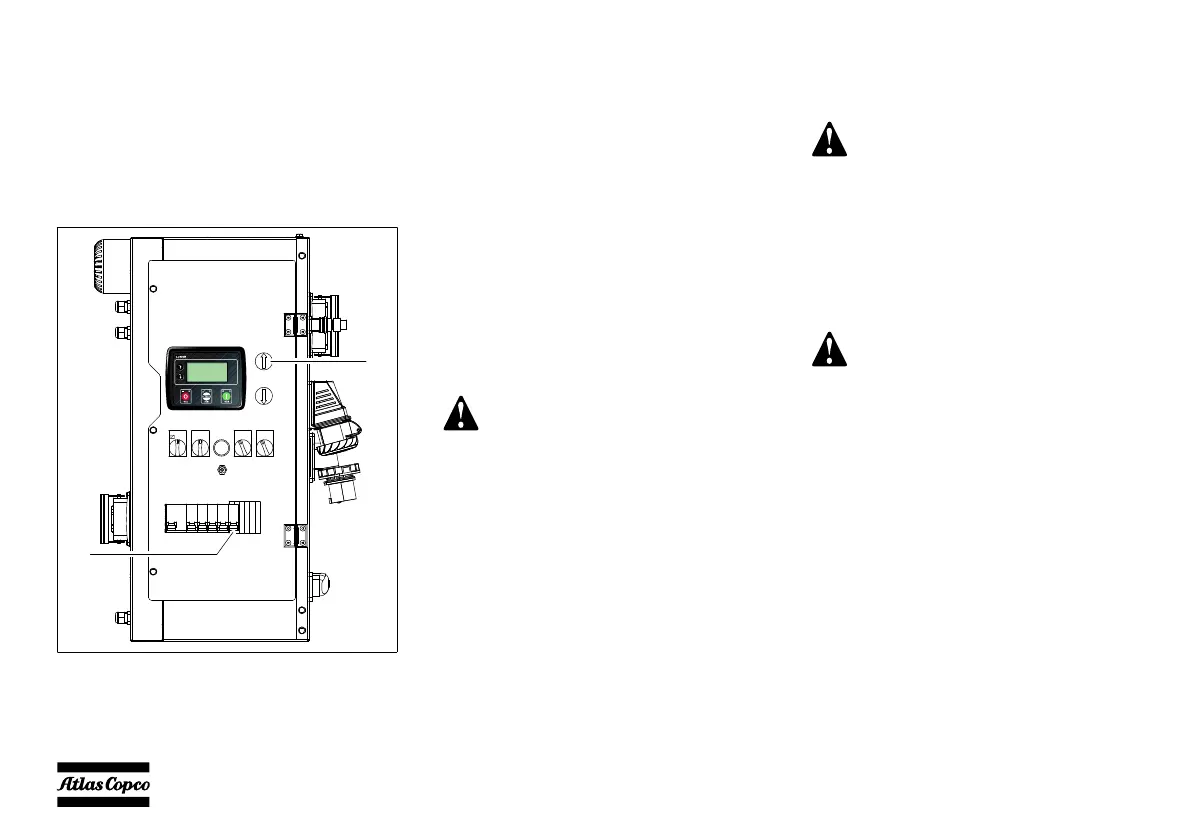

L
c
1003
0
1
0
DO
UP
MAN
AUTO
0
1
Q6
X1
Circuit breaker Q1 does not only
interrupt the power supply towards
X1, but also towards the 4 lamps.
Make sure to switch on circuit
breakers Q1 and Q6 after starting
the light tower when power supply is
done by means of X1.
The power of the hydraulic pump
for the mast is 850 W. Therefore it is
only possible to extend/lower the
mast if the lamps are switched off
OR if there is no power on the
auxiliary sockets.
The power of the hydraulic pump
for the mast is 850 W. Therefore it is
only possible to extend/lower the
mast if the power on the auxiliary
sockets is below 1800 W.
