7-segment LED display, 3 buttons and 3-color LED lights, AT502V also has two arrows.
One Right arrow with RED light and one Left arrow with GREEN light. Moreover, it also
has two message buffers same as AT503A.

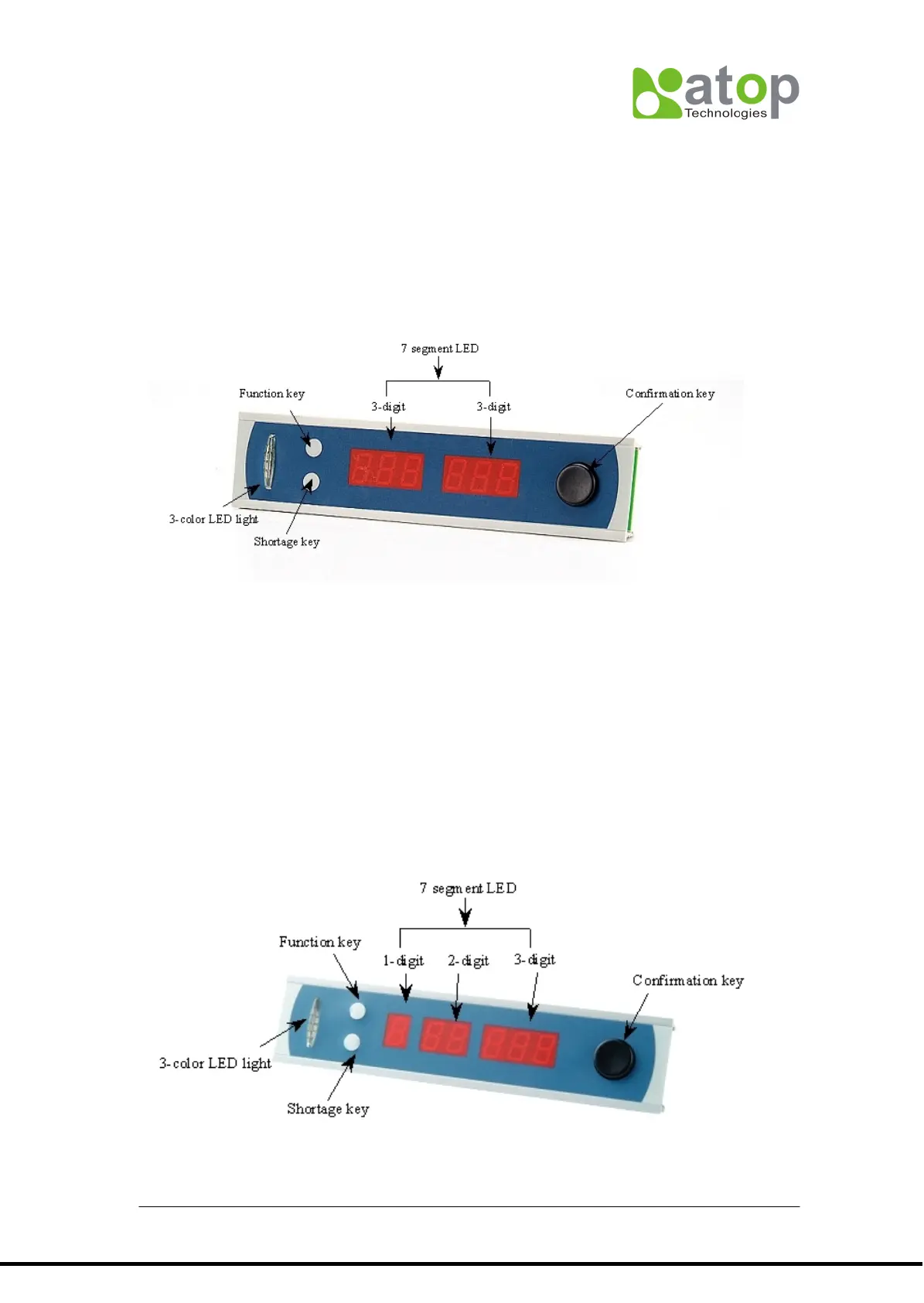

3.2.7 6-digit, 2 separated windows picking tag(AT506-2W-33)
Besides 3 buttons and 3-color LED lights, AT506-2W-33 has 6 digits 7-segment LED which
is divided into two separated windows, each has 3 digits individually. Normally,
AT506-2W-33 can used to show two different units of number on these windows, such as
“case” on the first window and “piece” o the second window.
3.2.8 6-digit, 3 separated windows picking tag(AT506-3W-123 )
AT506-3W-123 has the similar design as AT506-2W-33, whose 6 digits 7-segment LED
display are separated into 3 separated windows, one digit, two digits and three digits
individually. More than that, AT506-3W-123 also has the similar feature as AT503A, it has
10 messages buffers. It means you can send 10 messages into AT506-3W123 in advance,
first message will be shown on LED, the others will be pop out to show sequentially by
pushing the confirmation buttons.
Normally, one AT506-3W-123 can used to control multiple locations, especially for the
slowing moving items. The 3-separated windows design are for this purpose. The first and
second window can be used to indicate the specific location by rack’s row and column
information.
Moreover, AT506-3W-123’s firmware also has special design to return message to inform
software designer when its buffer is full or is empty.
