=> General Body Repairs Interior; Repair group 68; Shelves and trays/covers; Removing and installing front
part of centre console Shelves and trays/covers Removing and installing front part of centre console
Installing
Installation is carried out in the reverse order, when doing this note the following:
- When installing, ensure that the spring clips -C- are in the correct position.

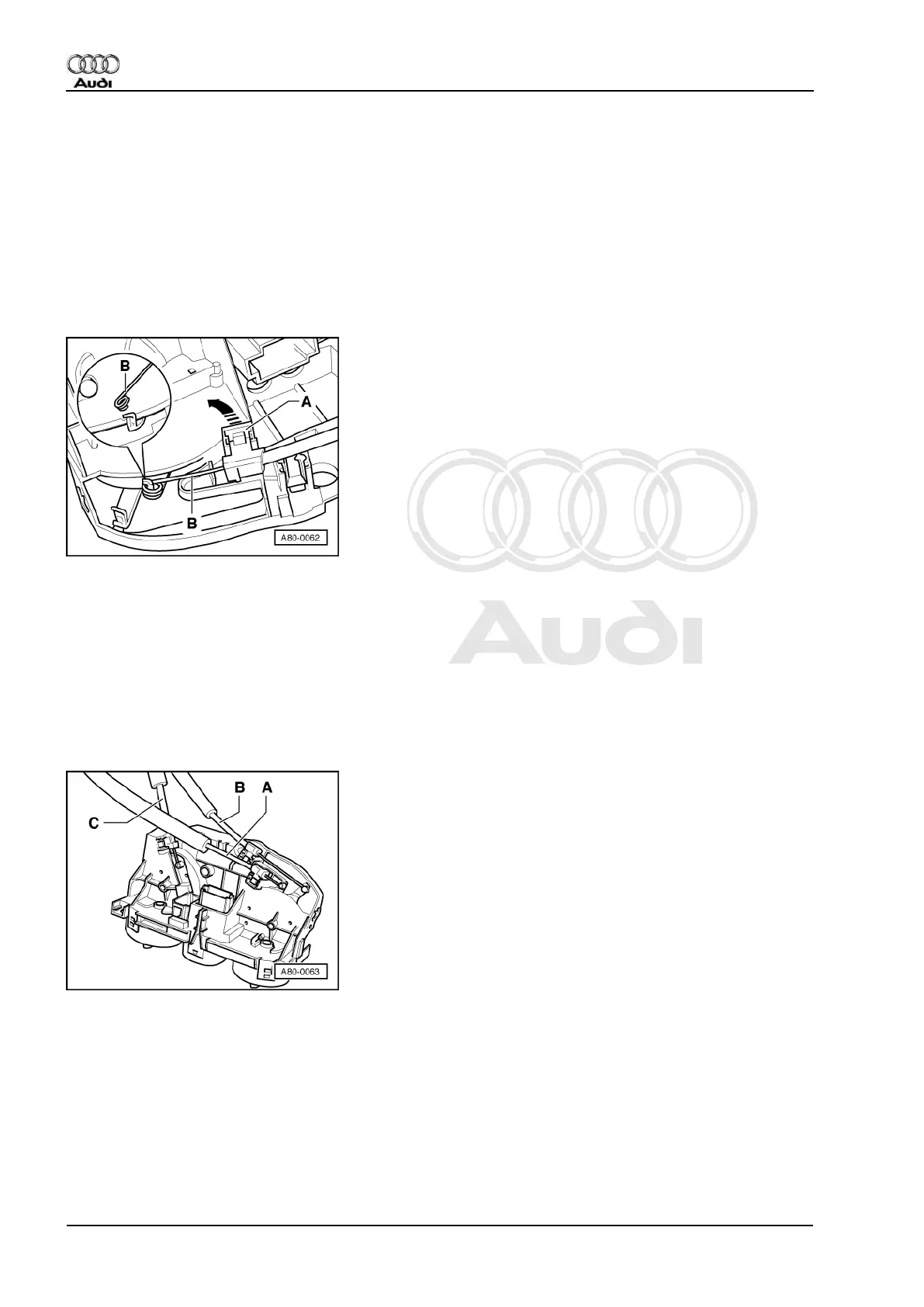

1.11 - Detaching and fitting Bowden cables from/on heater control
- Remove heater control.
- -> Unclip Bowden cable support bracket -A-.
- Detach Bowden cable.
Notes:
◆ Check the Bowden cables before fitting, replace stiff or damaged Bowden cables
◆ Attach wire core -B- the correct way round (end of coil positioned below).
1.12 - Connection diagram for Bowden cables to the heater control
Note:
Colours in brackets apply to right-hand drive vehicles.
- -> Bowden cable -A- to footwell/defrost flap.
Colour: Green (black).
- Bowden cable -B- to central flap.
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
104 80 - Heating
