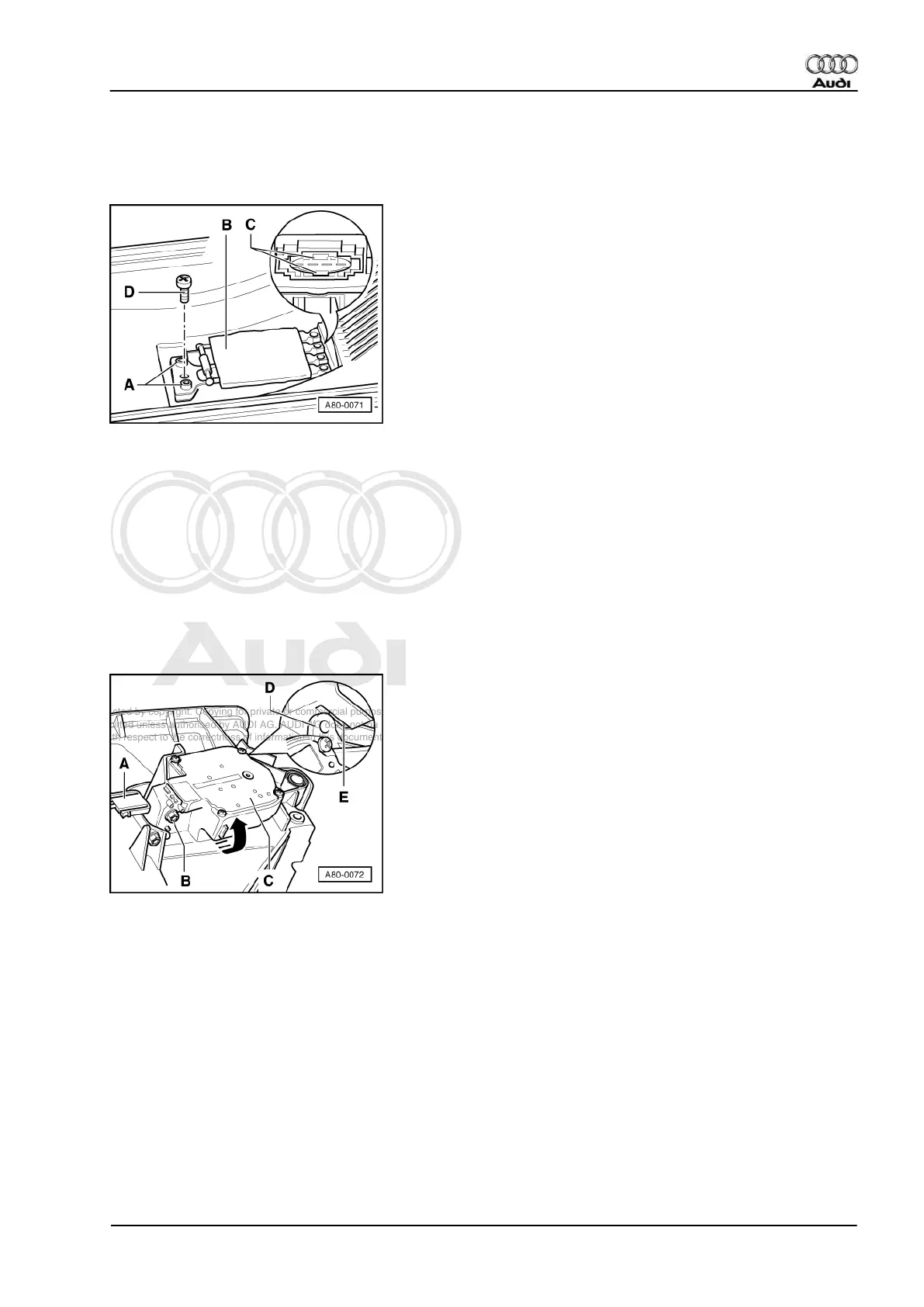

- Remove bolt clip for foam cover.
- Fold foam cover -C- to one side.
- -> Disconnect connector -A- from series resistor.
- Remove screws -B- and remove resistor holder.
Removing the series resistor from its holder
- -> Drill off or detach securing elements -A-.
- Push back catches -C-.
- Remove series resistor -B-.
Note:
When installing, fasten series resistor with self-tapping screw -D- 3.2 x 10 mm.
1.18 - Removing and installing positioning motor for fresh/recirculated air flap -V154
- Remove glove compartment.
=> Inner Body Assembly; Repair group 68
- -> Detach connector -A-.
- Remove bolt -B-.
- Remove positioning motor in direction of arrow.
Installation notes:
◆ When inserting the positioning motor, ensure that the bracket -D- is correctly positioned in slot -E-.
