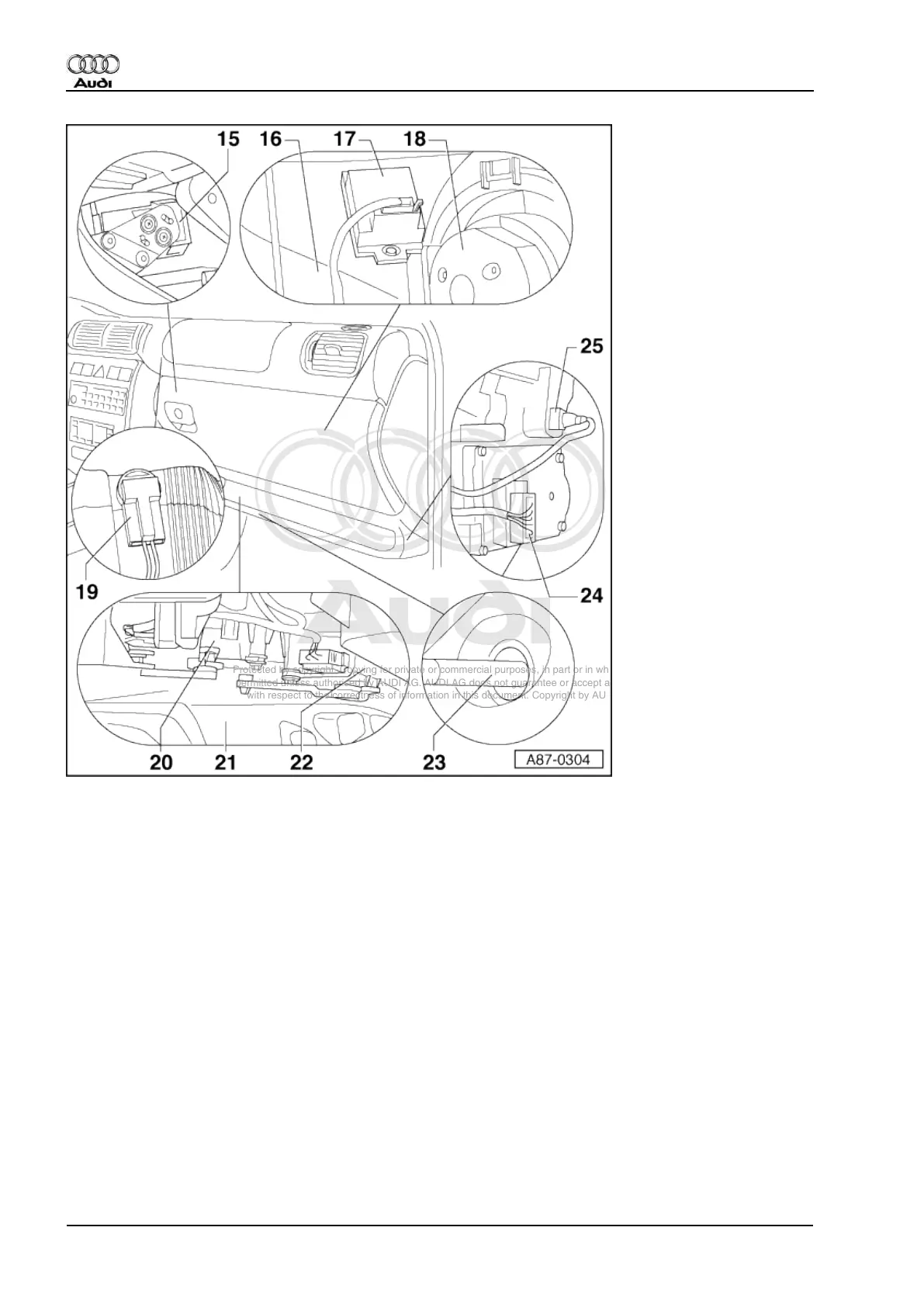

22 Temperature flap positioning motor
-V68 *
◆ With potentiometer -G92
◆ Removing and installing =>Page 182 .
◆ "Black" or "pink" pivot arm
23 Condensation drain
◆ Checking =>Page 161 .
24 Air flow flap positioning motor -V71*
◆ Actuates the air flow flap and fresh/recirculated air flap
◆ With potentiometer -G113
◆ Removing and installing =>Page 185 .
25 Fresh air intake temperature sensor
-G89 **
◆ Removing and installing =>Page 185 .
6.2 - Removing and installing operating and display unit -E87
- Removing and installing the operating and display unit -E87 with two displays => Page 176 .
- Removing and installing the operating and display unit -E87 with one display => Page 177 .
