Note:
The sender for centre vent temperature -G191 is only present in vehicles with map-controlled engine cooling
(at the moment only with 1.6 litre engine with gradual introduction into model year 1999).
=> Relevant Workshop Manual Injection and Ignition system

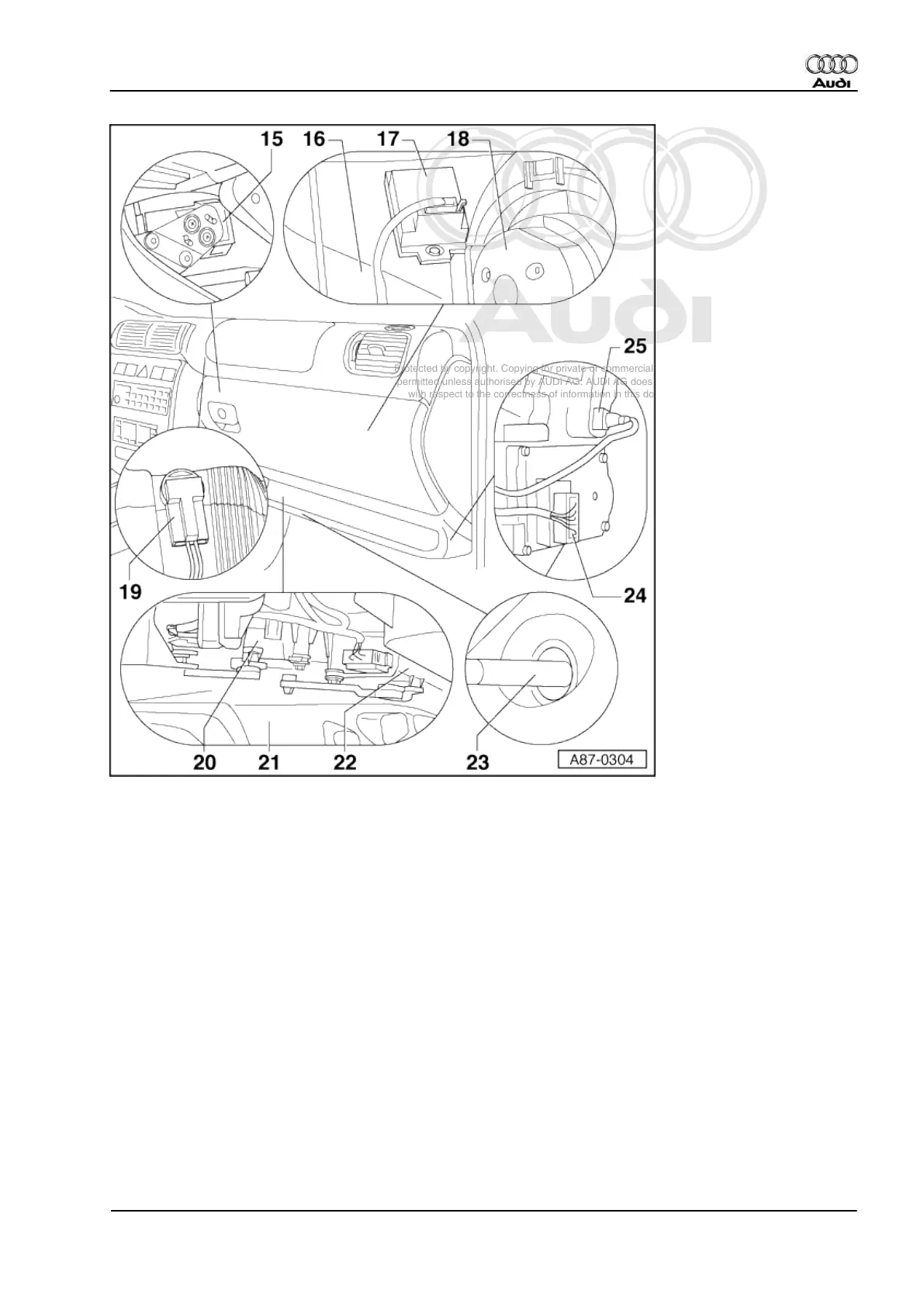

20 Positioning motor for central flap
-V70 *
◆ With potentiometer -G112
◆ Removing and installing =>Page 182 .
◆ "Green" pivot arm
21 Footwell vent
◆ Removing and installing => Page 181 .
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
6.1 - Components for air conditioner control and regulation (in the passenger
compartment) 173
