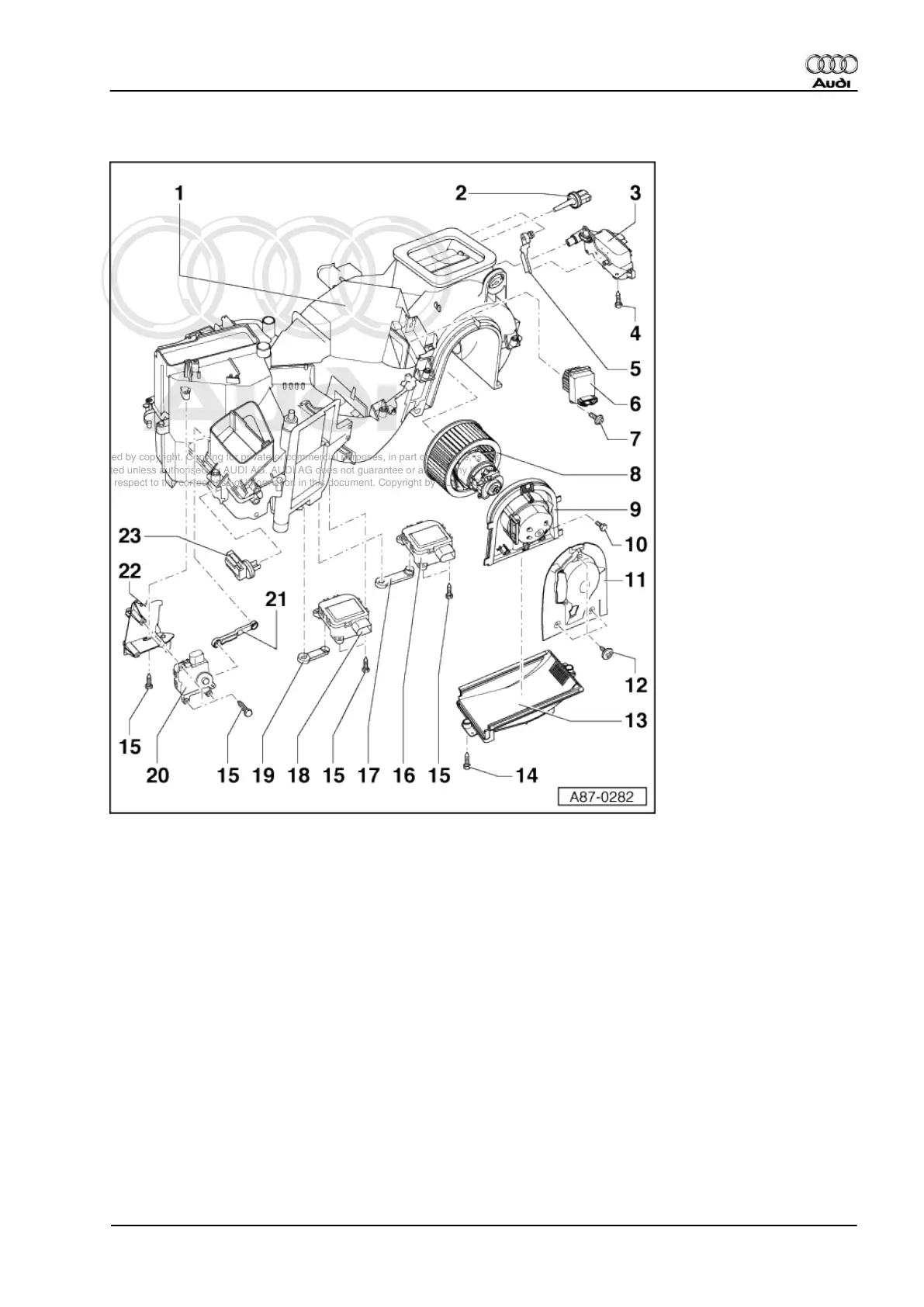

13.3 - Removing and installing air conditioner electrical components
1 Air-conditioner
◆ Dismantling and assembling => Page 231 .
2 Temperature sensor for fresh air intake duct -G89
◆ Removing and installing =>Page 185 .
3 Air flow flap positioning motor -V71.
◆ Actuates the air flow flap and fresh/recirculated air flap
◆ With potentiometer -G113
◆ Removing and installing =>Page 185 .
4 Bolt
