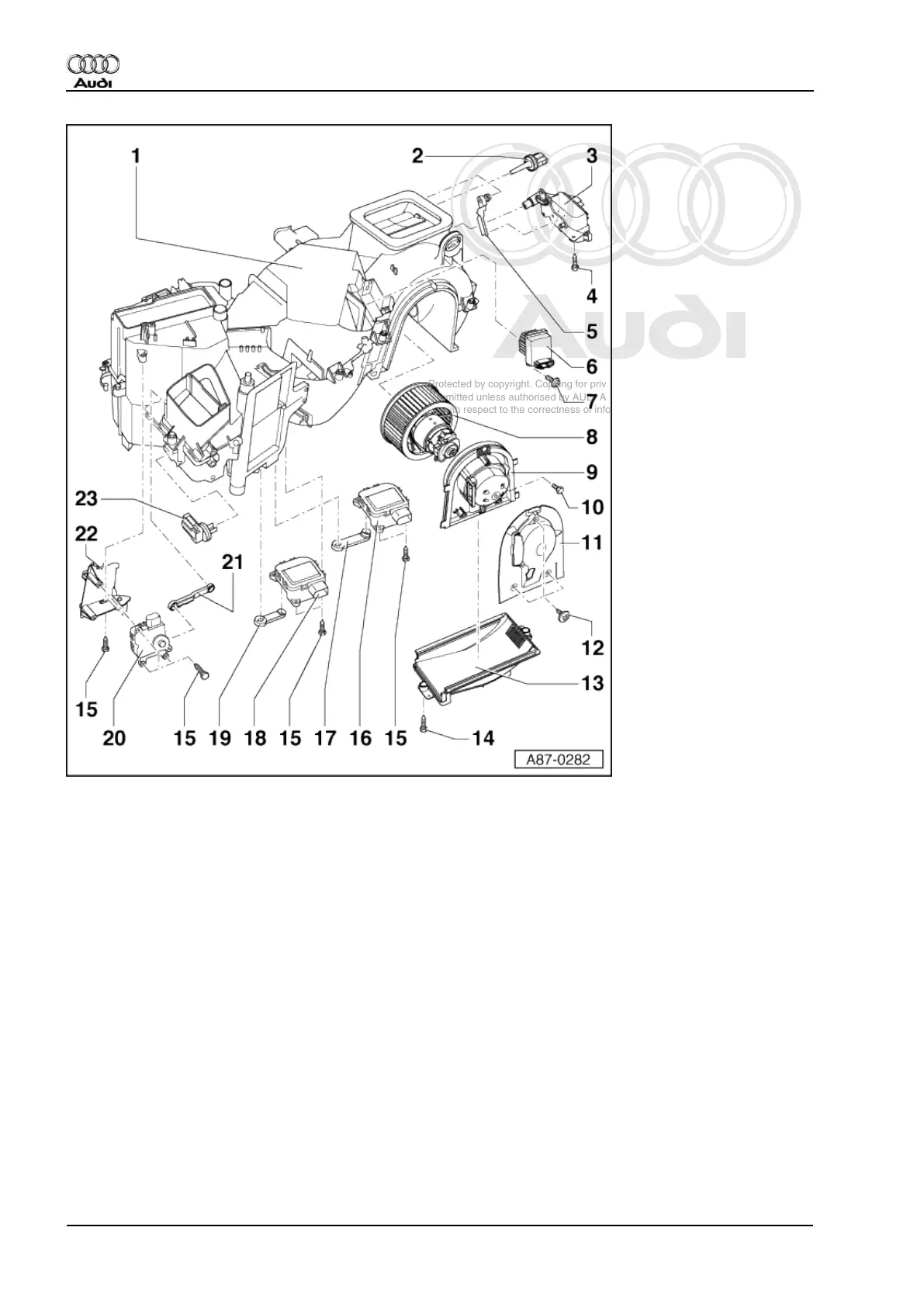

5 Connecting link
◆ To air flow flap
6 Blower control unit -J126
◆ Removing and installing =>Page 178 .
7 Bolt
8 Fresh air blower -V2
◆ Removing and installing => Page 179 .
9 Mounting plate
10 Bolt
11 Noise insulation
◆ Not installed in all vehicles.
12 Bolt
13 Cover
