- -> Carefully lever off cover -A-.
- Remove bolt -B-.
- Remove photosensor.

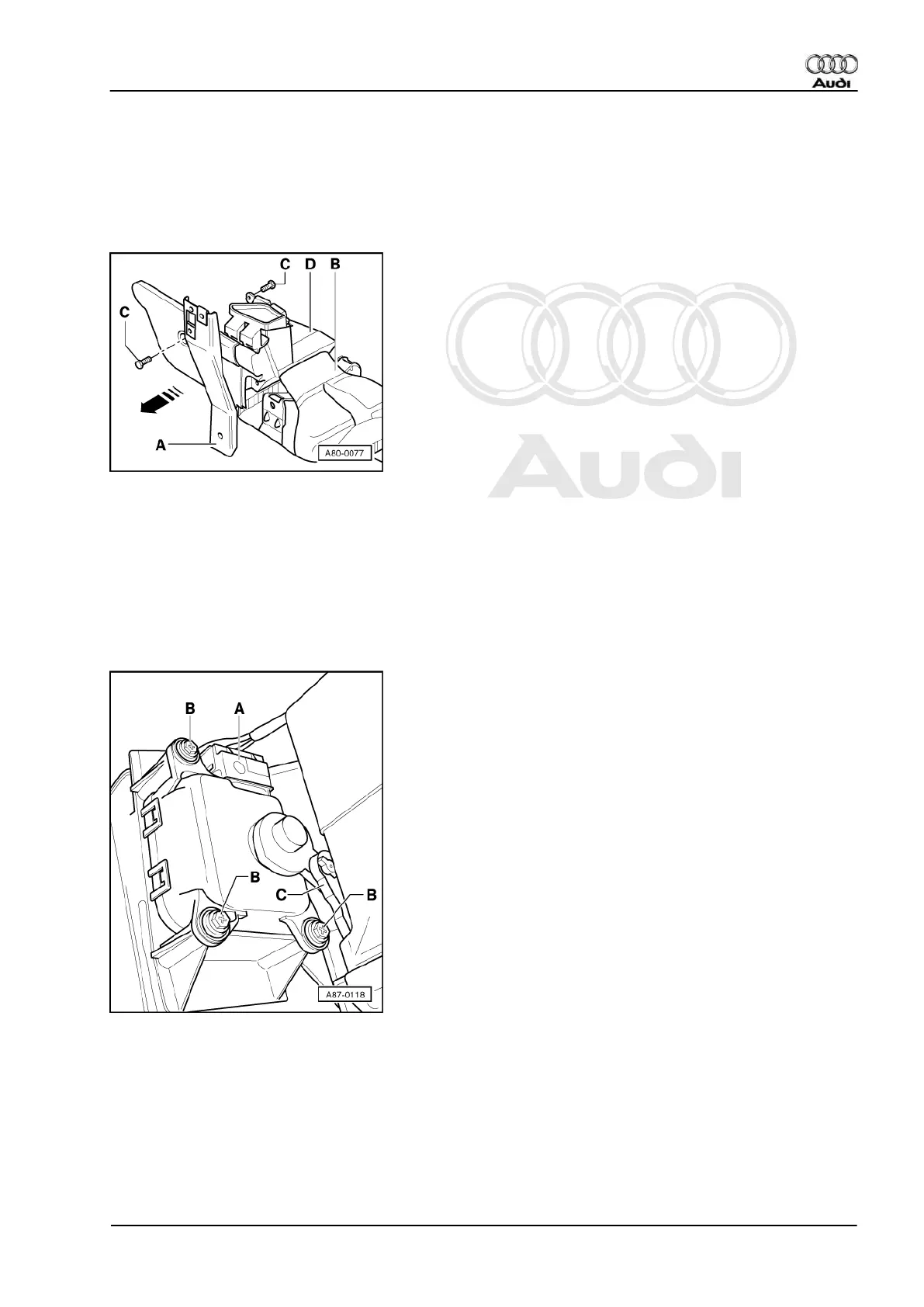

6.8 - Removing and installing footwell vent
- -> Remove driver's storage compartment and tunnel brace -A-.
=> Inner Body Assembly; Repair group 68
- Remove connection pieces between footwell vent and rear heating duct -B-.
- Remove bolts -C-.
- Remove footwell vent -D- in direction of driver's footwell (arrow).
6.9 - Removing and installing footwell/defroster flap positioning motor -V85
- Remove compartment on driver's side.
=> Inner Body Assembly; Repair group 68
- -> Detach connector -A-.
- Remove bolts -B- (3x).
- Disengage actuating arm and remove positioning motor.
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
6.7 - Removing and installing sunlight penetration photosensor -G107 181
