◆ The heat exchanger has been installed in vehicles with map-controlled cooling (to be introduced gradually
as of model year 1999 vehicles with 1.6 l engine) which has been adapted to the different usage conditions.
The following must be noted for this heat exchanger:
- -> The flow direction of the refrigerant in the heat exchanger is not marked at the refrigerant connections
(observe feed and return flow).
- The heat exchanger components carrying refrigerant are produced entirely from metal due to the higher
feed refrigerant temperature.
=> Parts List
4 - Servicing electrical additional heater - Vehicles with TDI engine
4.1 - Servicing electrical additional heater - Vehicles with TDI engine
4.2 - Checking function of electrical additional heater
Electrical additional heater is activated by control unit for diesel direct injection system -J248 when following
conditions occur at the same time:
◆ Measured ambient or intake pipe air temperature (when engine starts) lower than 5 °C
◆ Refrigerant temperature less than 70 °C
◆ Engine speed above 800 rpm
◆ Other actuation conditions:
=> Relevant Workshop Manual Diesel Direct Injection and Preglow System; Repair group 01; Reading meas‐
ured value block
Test sequence
- Check low heating output relay -J359 or high heating output relay -J360:
=> Relevant Workshop Manual Diesel Direct Injection and Preglow System; Repair group 01; Final control
diagnosis
If the relays are OK:
- Test wiring for open circuit and short to positive or earth.
=> Current Flow Diagrams, Electrical Fault-Finding and Fitting Locations

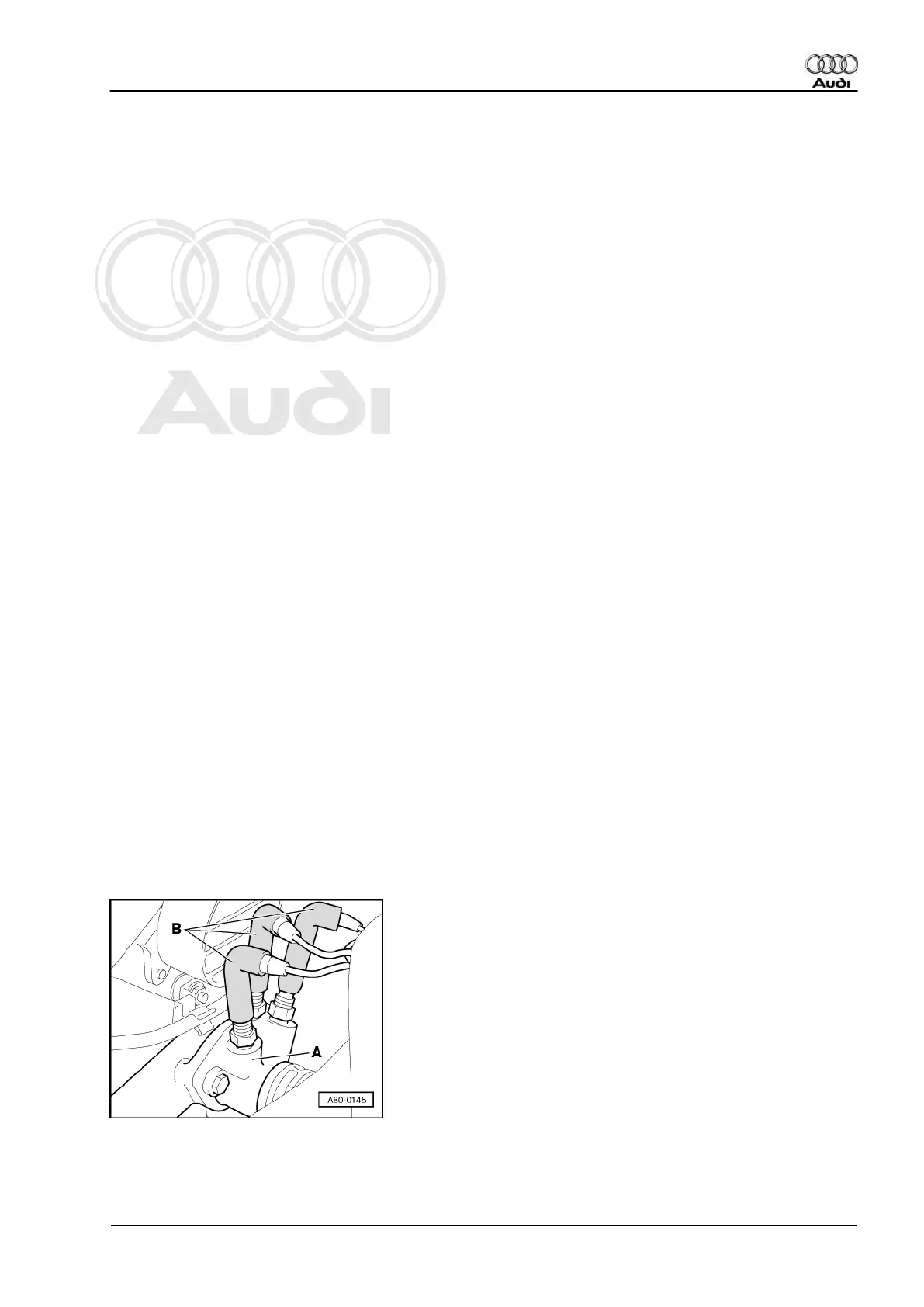

- -> Check earth wiring to refrigerant stump -A- (in which the glow lamps are screwed into) to the cylinder
head.
