- Carefully detach Bowden cable from lever arm.
Notes:
◆ Check the Bowden cables before fitting, replace stiff or damaged Bowden cables
◆ After installing the Bowden cables, turn the rotary control from end stop to end stop (both stops must be
reached).
Install and adjust Bowden cable on temperature flap
- Turn rotary control for temperature flap to maximum setting for "cold".

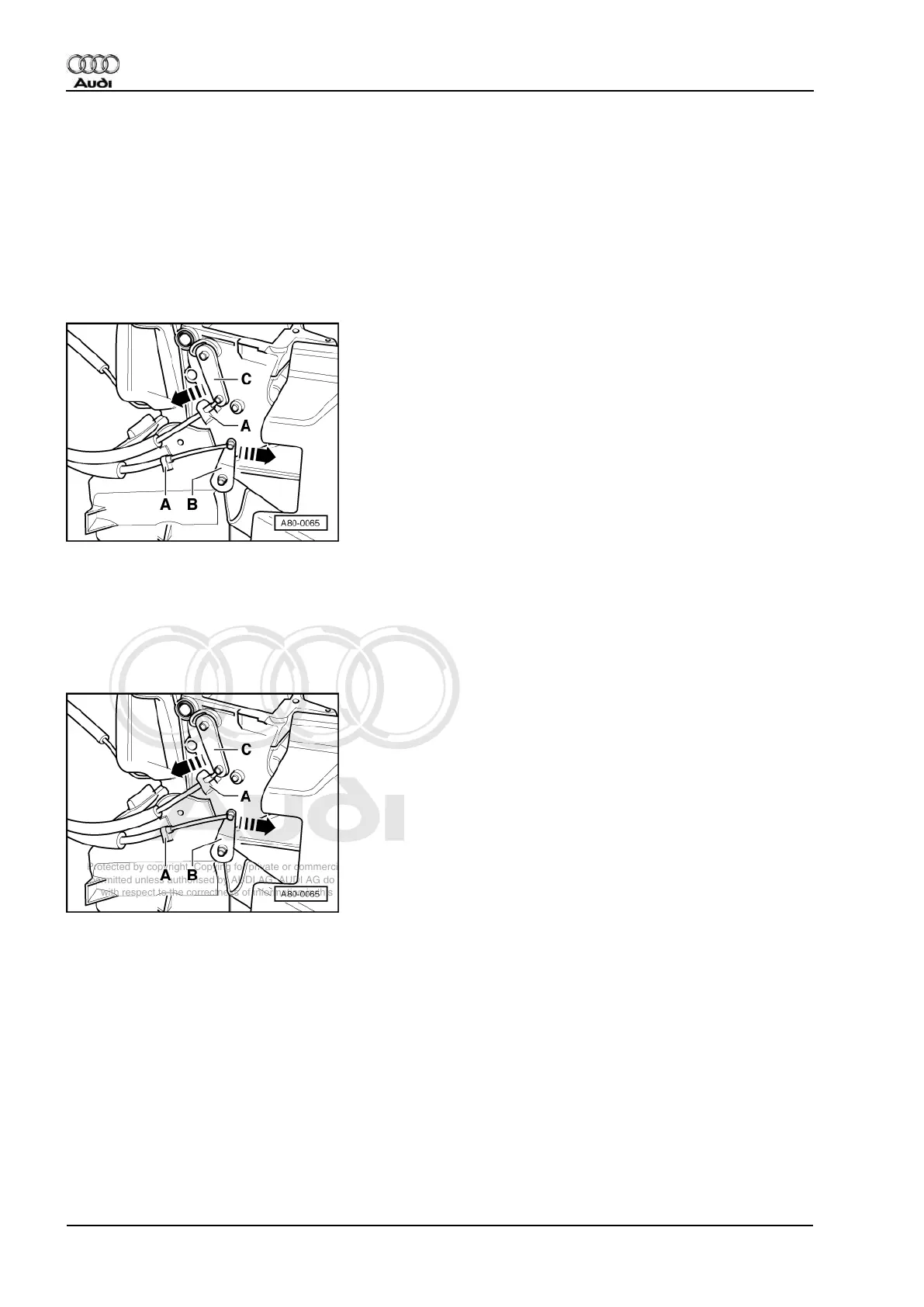

- -> Connect Bowden cable to lever arm for temperature flap -B-.
- Push down slightly on lever arm -B- for temperature flap in direction of arrow.
- Secure Bowden cable sheath with clip -A-.
- Turn the rotary control for temperature flap from end stop to end stop (both stops must be reached).
Install and adjust Bowden cable on central flap and footwell/defroster flap
- Turn rotary control for air distribution to end stop in the "Air to windscreen" position.
- -> Connect Bowden cable to lever arm for central flap -C-.
- Push down slightly on lever arm -C- for central flap in direction of arrow.
- Secure Bowden cable sheath with clip -A-.
- Turn the rotary control for air distribution from end stop to end stop (both stops must be reached).
