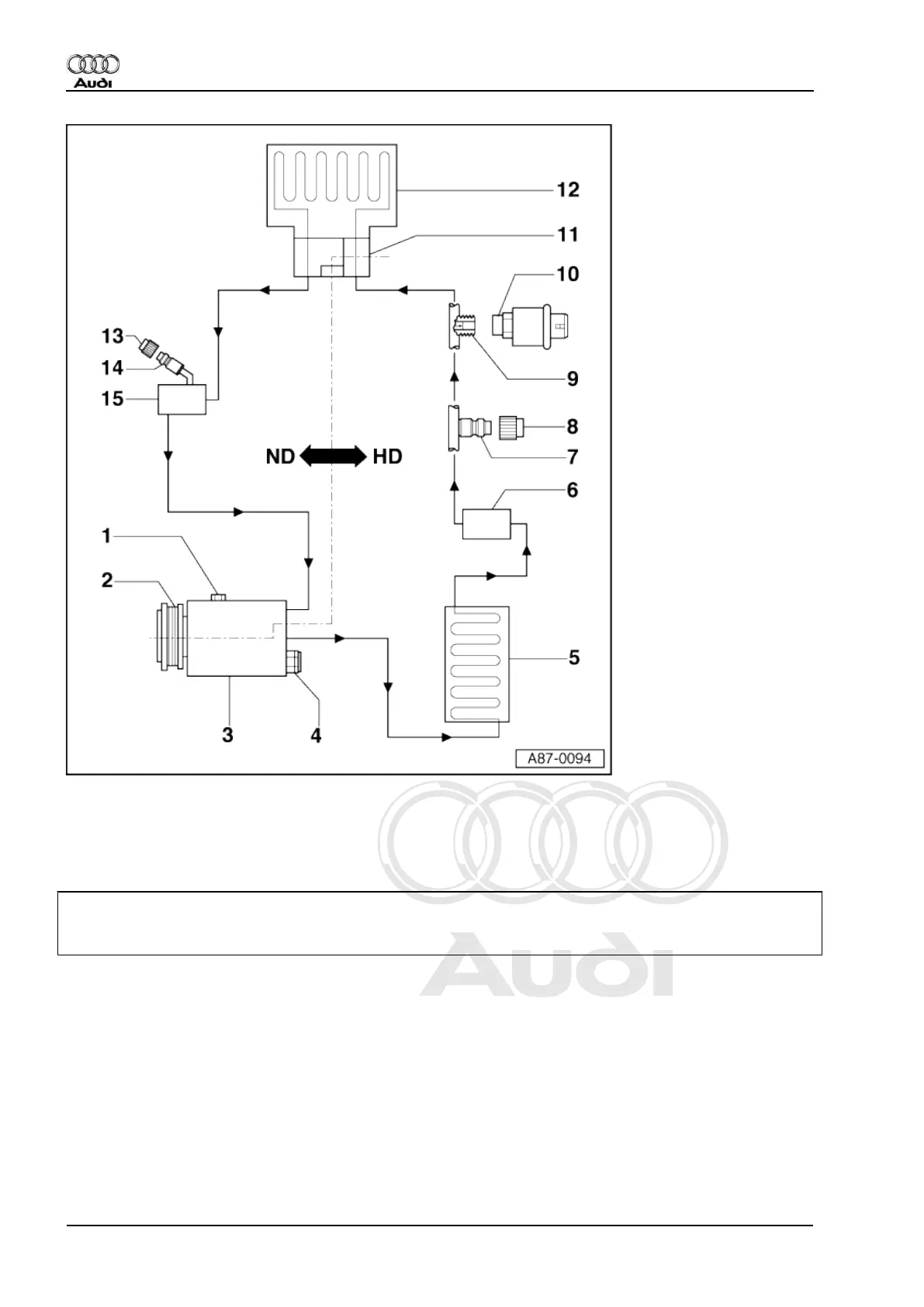

12 Evaporator *
13 Cap
◆ With seal, must always be fitted.
14 Service connection *
◆ Low-pressure end
Warning!
The service connections may be removed only if the refrigerant circuit is empty - the connection is not supplied
with a valve.
15 Pre-volume *
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
134 87 - Air conditioning
