Warning!
The compressor may be removed only if the refrigerant circuit is empty.
8 Air conditioner magnetic clutch -N25
◆ Repairing =>Page 139
Notes:
◆ Removing and installing ribbed belt.
=> Relevant Workshop Manual Engine; Mechanical Components; Repair group 13
◆ Mark direction of ribbed belt before removing - reversing the direction of rotation can destroy the belt.
9 Service connection
◆ High-pressure side
◆ For measurement, drainage and filling at VW and Audi air-conditioning service centres.
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000

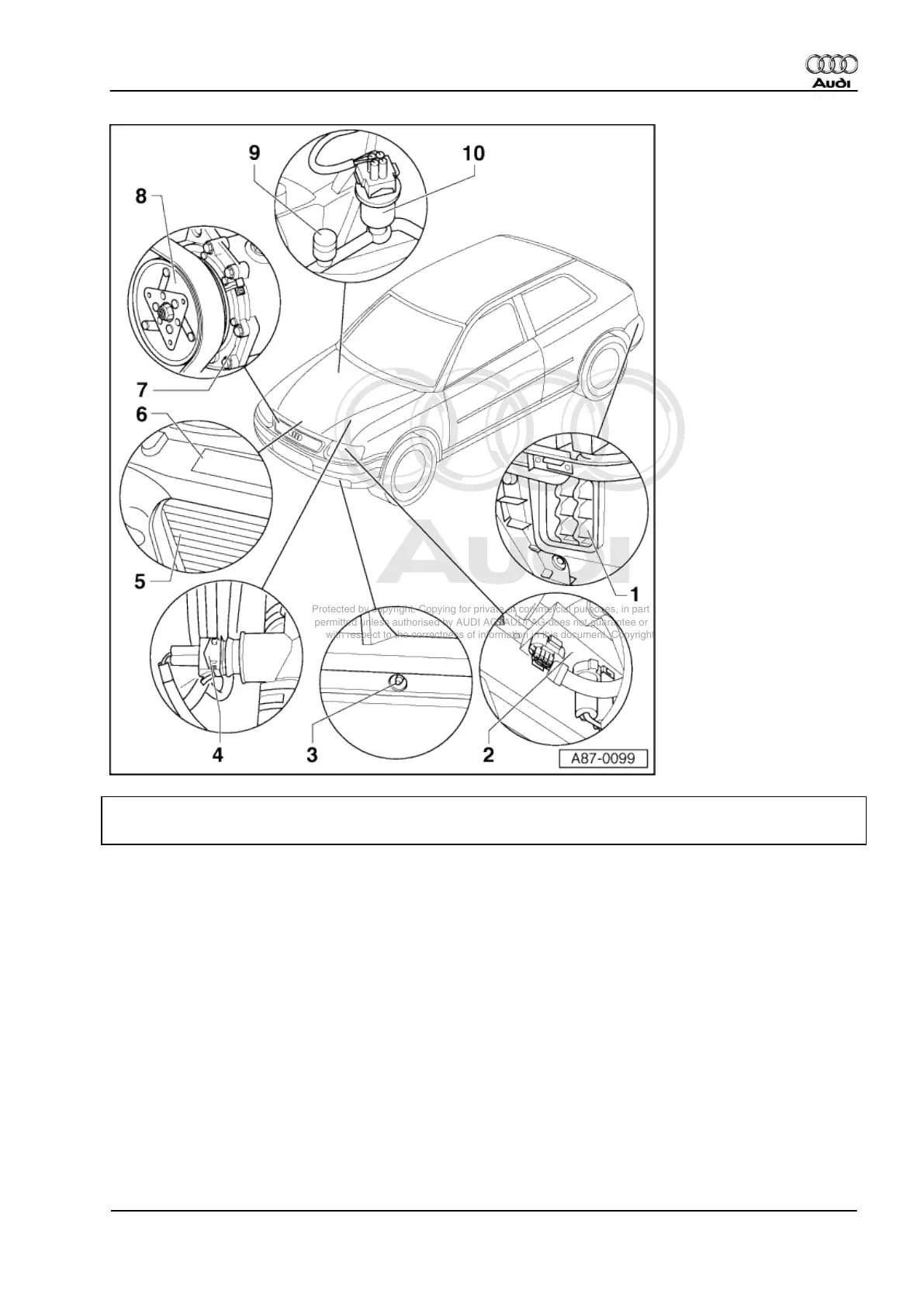

5.1 - Components for the control and regulation of the air conditioner (in the engine
compartment) 155
