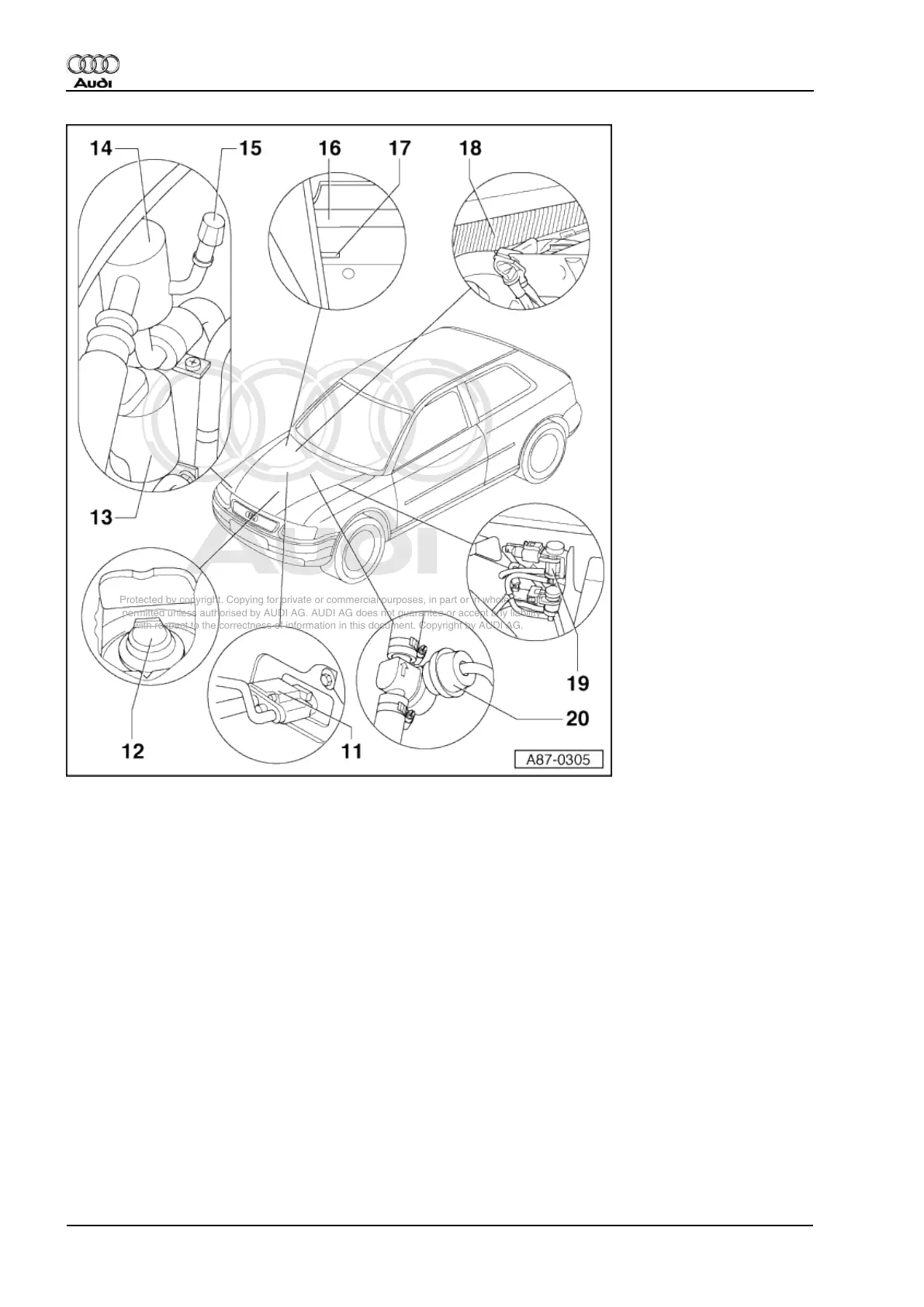

14 Pre-volume
15 Service connection
◆ Low-pressure end
◆ For measurement and drainage at VW and Audi air-conditioning service centres.
Note:
Always screw on cap with seal.
16 Air flow flap
◆ Removing and installing positioning motor -V71* (with potentiometer -G113) =>Page 185 .
17 Fresh air intake temperature sensor
-G89 **
◆ Removing and installing =>Page 185 .
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
158 87 - Air conditioning
