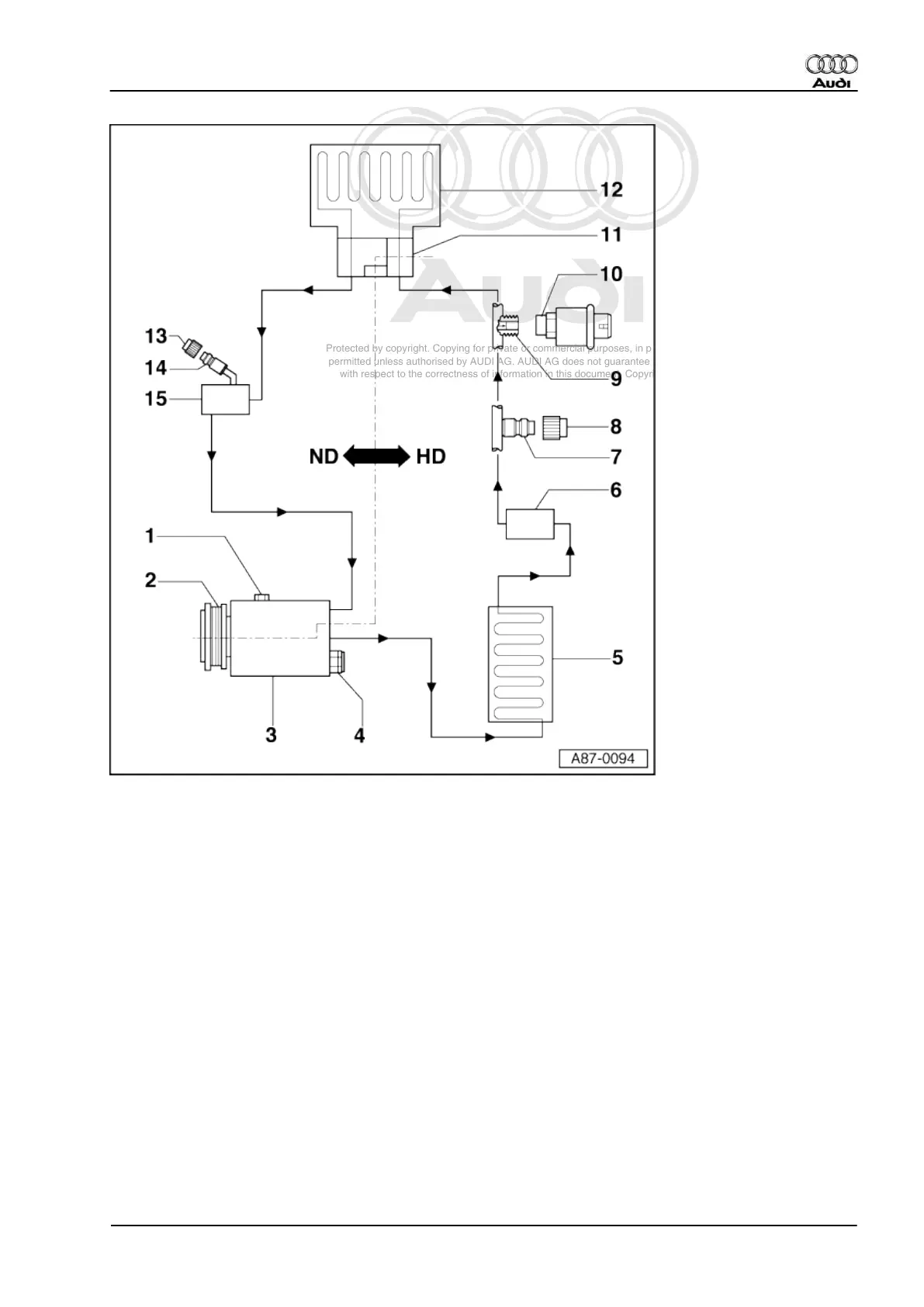

11 Expansion valve
◆ Disconnecting and connecting refrigerant lines =>Page 203 .
◆ Removing and installing =>Page 203 .
◆ Removing and installing heat insulation =>Page 162 .
12 Evaporator
◆ Removing and installing air conditioner => Page 206 .
◆ Dismantling and assembling air conditioner, design "1" =>Page 213 .
◆ Removing and assembling air conditioner, design "2" =>Page 224 .
Note:
As of June 1997, AC version "1" has been gradually phased out of production and AC version "2" gradually
phased in.
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
9.1 - Repairing refrigerant circuit 199
