- Remove the complete bumper.
=> Outer Body Assembly; Repair group 63; Front bumper Front bumper
- Detach fluid reservoir => Page 201 .

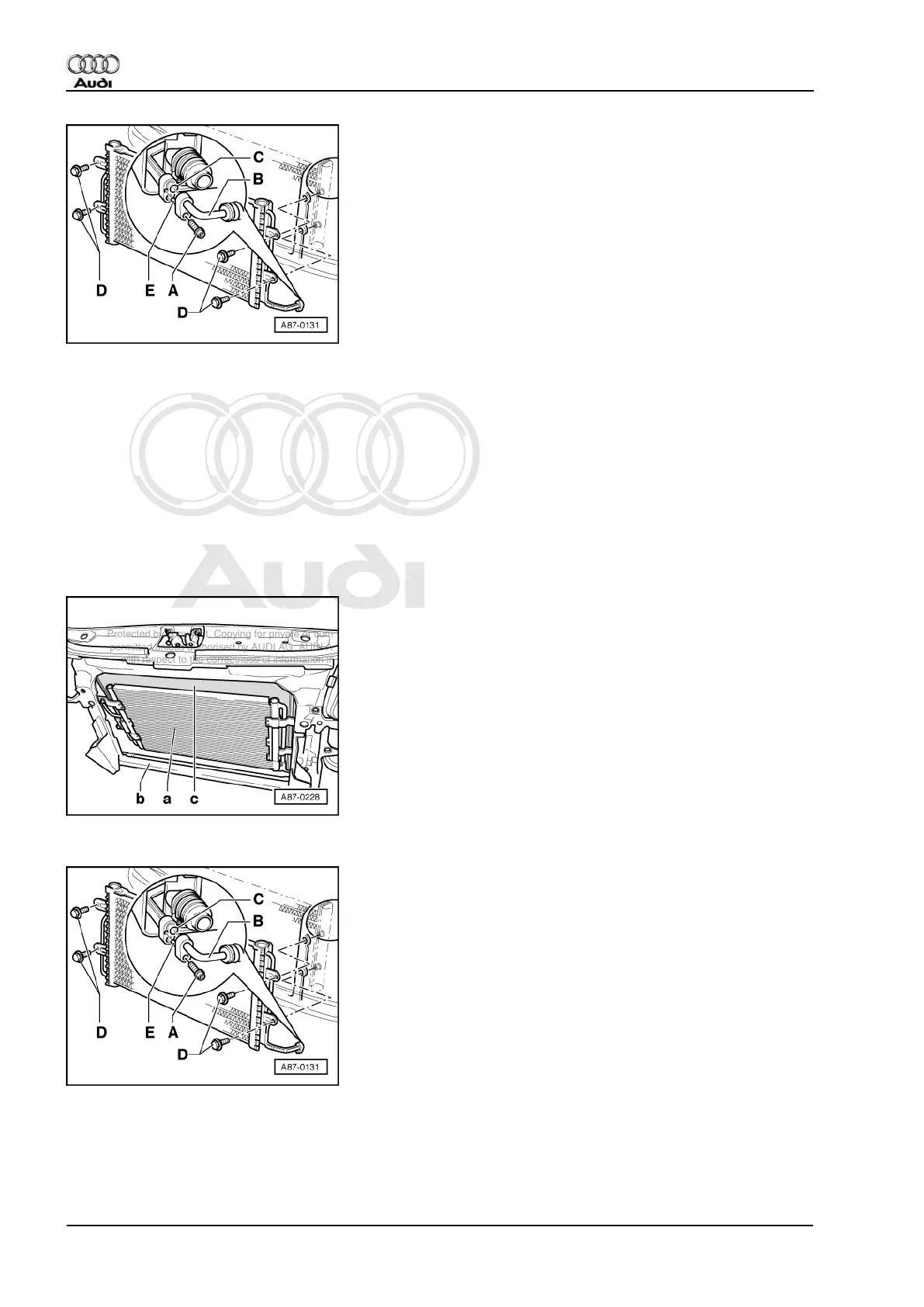

- -> Remove bolt -A- (tightening torque 15 Nm).
- Remove refrigerant lines -B-.
- Remove bolt -D- (tightening torque 8 Nm).
- Remove radiator fan with retainer.
=> Relevant Workshop Manual Engine; Mechanical Components; Repair group 19
- Loosen radiator from lock carrier and tilt to the rear.
=> Relevant Workshop Manual Engine; Mechanical Components; Repair group 19
- Remove condenser -a- downward between lock carrier -b- and radiator -c-.
Notes:
◆ -> Replace O-ring seal -C- (10.8 mm; 1.8 mm).
◆ When installing the refrigerant line, ensure that locking pin -E- is properly positioned.
