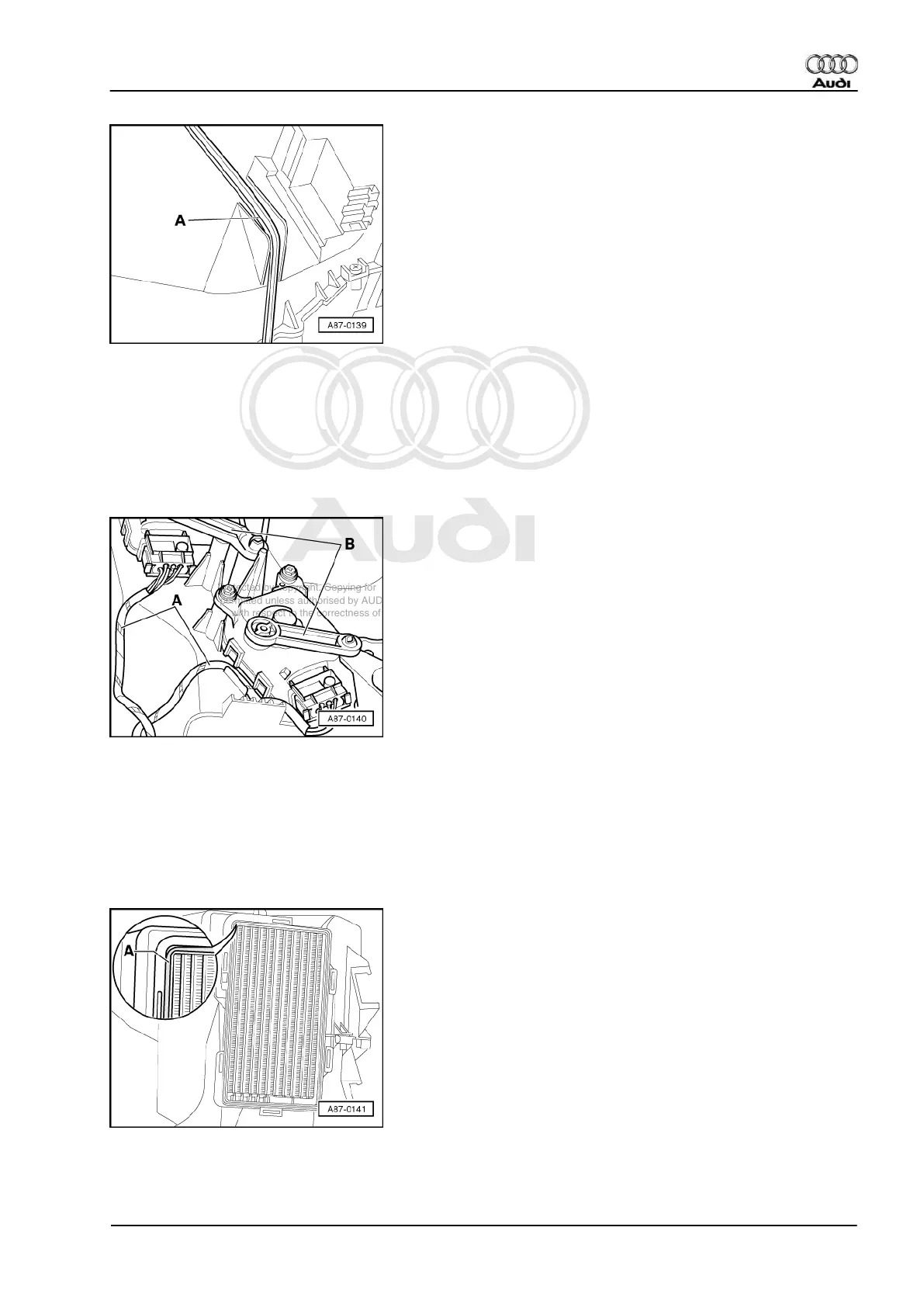

Fig.1 -> Routing securing strap
Notes:
◆ Ensure that tensioning strap -A- is properly fitted around evaporator housing.
◆ The tensioning strap keeps the cover secured to the evaporator housing.
Fig.2 -> Installing air conditioner wiring harness
Notes:
◆ Install wiring harness -A- so that it cannot come into contact with moving parts (e.g. positioning motor lever
-B-).
◆ Route wiring harness so that it does not rattle.
Audi A3 1997 ➤
Heating, Air Conditioner - Edition 06.2000
12.1 - Dismantle and assemble air conditioner (version 1) 217
