How to install the receiver
17
Rack-mounting one receiver
1

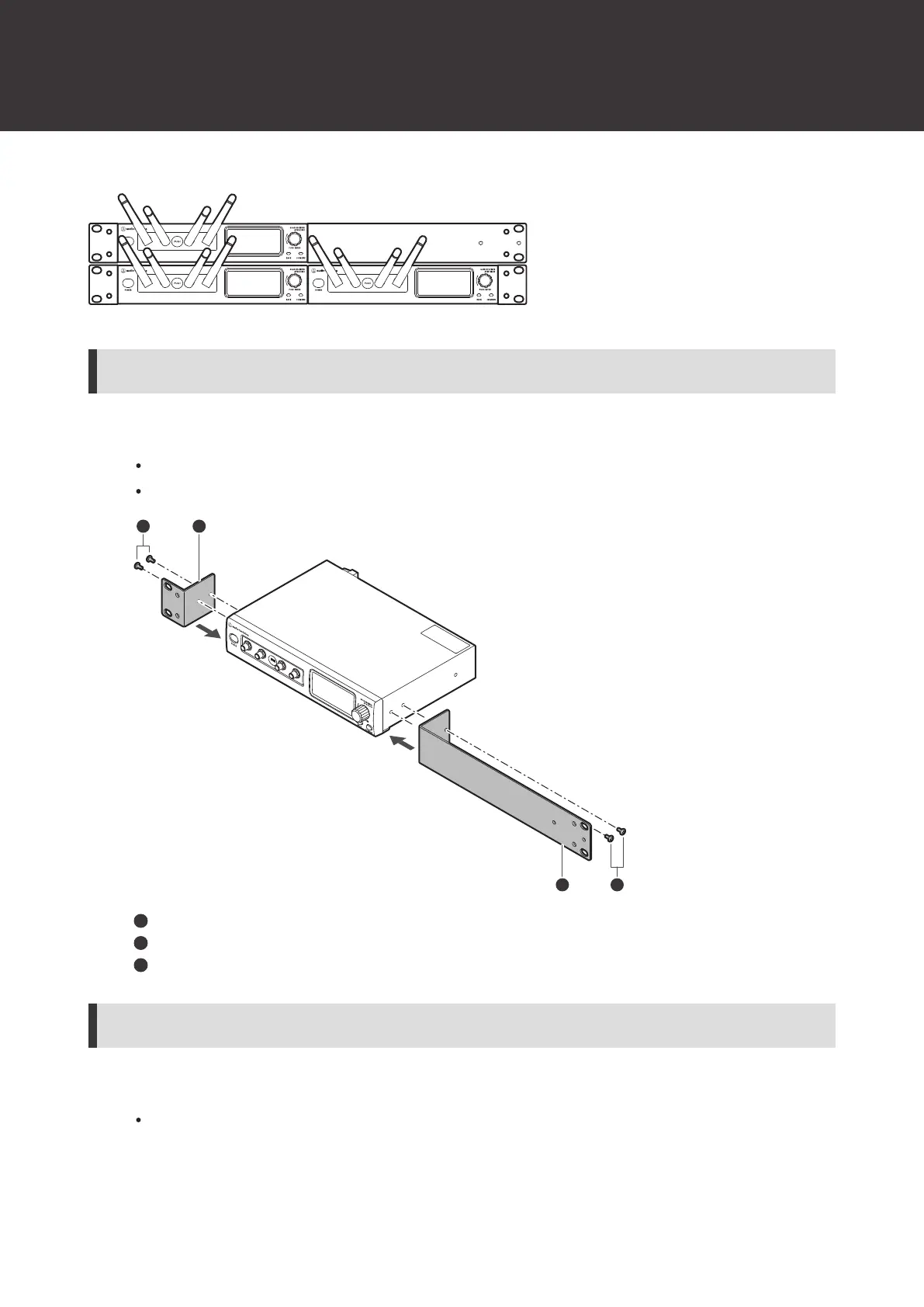

Attach the short rack-mount adapter and long rack-mount adapter to the sides.
Adapters can be attached to either side of the receiver.
Fully attach two fixing screws to the left side and two fixing screws to the right side.
Fixing screw
Short rack-mount adapter
Long rack-mount adapter
Rack-mounting two receivers
1
Link the receivers by attaching two long rack-mount adapters to the bottom of the receivers.
Fully attach three fixing screws to both the left and right receivers.
