PHONE SECTION
Hook-Ups
As stated before, all user wiring takes place at the “PHONE IN/OUT”
DB-25 multi-pin connector mounted on the rear of the console. All signals
are analog mono. A pinout drawing on page 4-5 shows all wiring
connections at a glance.
Pin 24 – HI
Pin 12 – LO Caller 1 In
Pin 25 – SH
Pin 10 – HI
Pin 23 – LO Caller 2 In
Pin 11 – SH
Pin 21 – HI
Pin 9 – LO Caller 1 Out
Pin 22 - SH
Pin 7 – HI
Pin 20 – LO Caller 2 Out
Pin 8 – SH
Pin 15 – HI
Pin 3 – LO MXM 1 Out
Pin 16 – SH
Pin 1 – HI
Pin 14 – LO MXM 2 Out
Pin 2 – SH

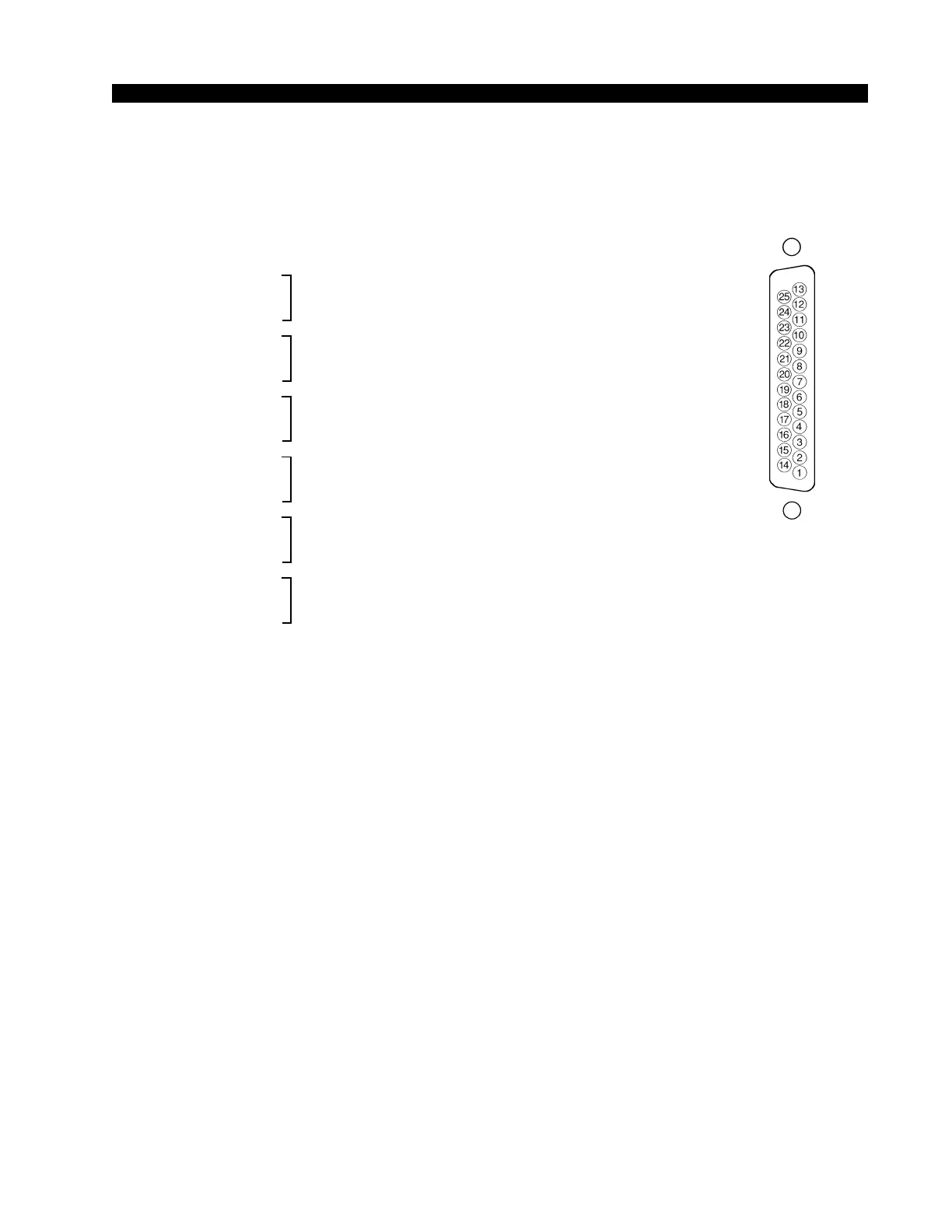

Typical DB-25
connector
