AUMA ACV 01.2 Operation Instructions

6.2.4. Fieldbus terminal compartment: open

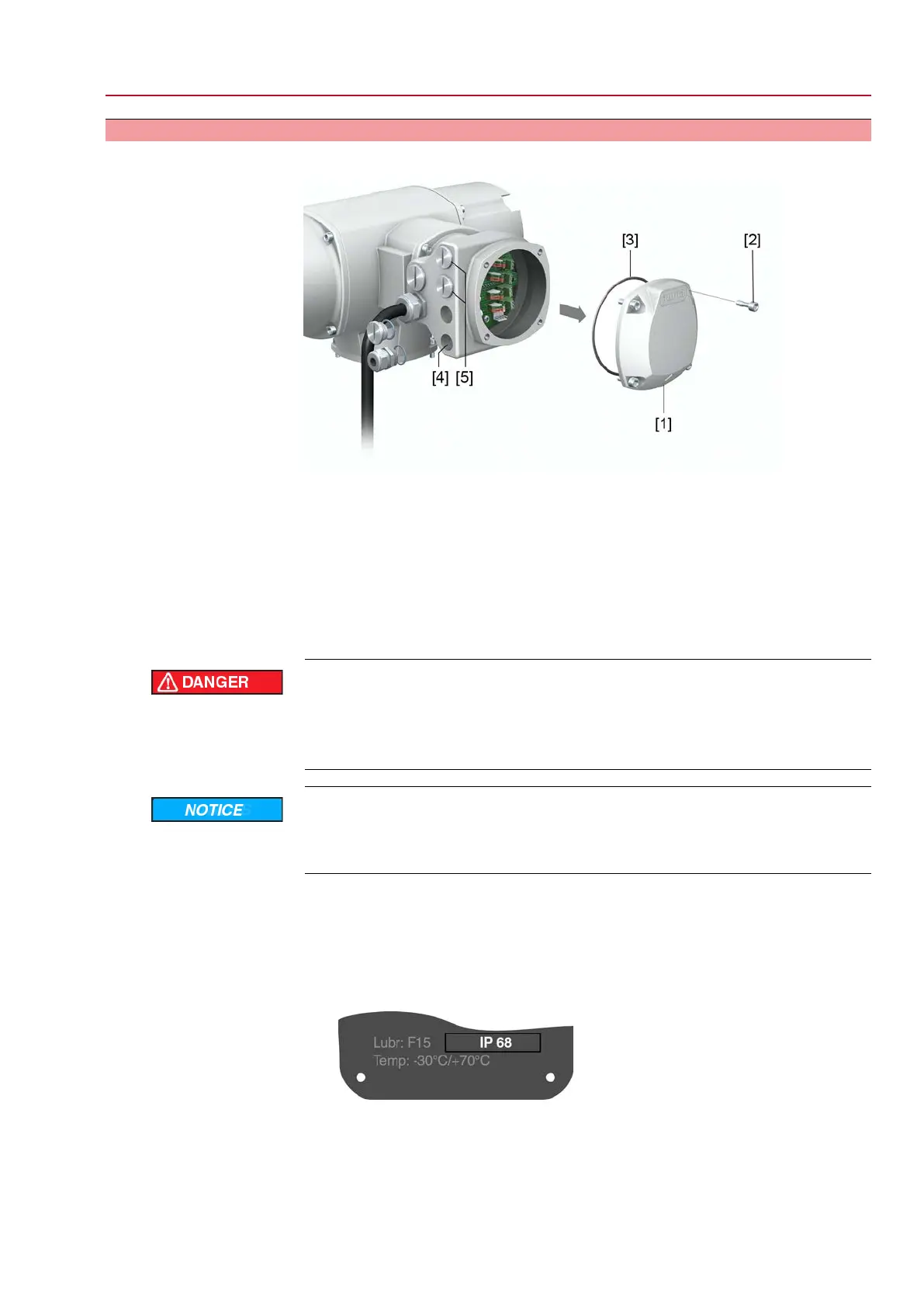

Figure 24: Open cover to fieldbus terminal compartment
[1] Cover (fieldbus terminal compartment)
[2] Screws for cover
[3] O-ring
[4] Cable entries for fieldbus cables
[5] Blanking plug
The AUMA plug/socket connector is equipped with a connection board for connecting
the fieldbus cables.When removing the cover [1], the connection board is easily
accessible.
Electric shock due to presence of hazardous voltage!
Failure to observe this warning results in death or serious injury.
→
Disconnect device from the mains before opening.
→
Wait for 30 seconds after power cut-off prior to opening the housing.
Electrostatic discharge ESD!
Risk of damage to electronic components.
→
Earth both operators and devices.
1. Loosen screws [2] and remove cover [1].
2. Insert cable glands suitable for fieldbus cables.
➥
The enclosure protection IP… stated on the name plate is only ensured if suit-
able cable glands are used.
Figure 25: Example: Name plate for enclosure protection IP68
3. Seal unused cable entries with suitable plugs.
27
SQV 05.2 – SQV 14.2 / SQRV 05.2 – SQRV 14.2 Control unit: electronic (MWG)
ACV 01.2 Non-Intrusive Profibus DP Electrical connection
