6.3.2. Parking frame

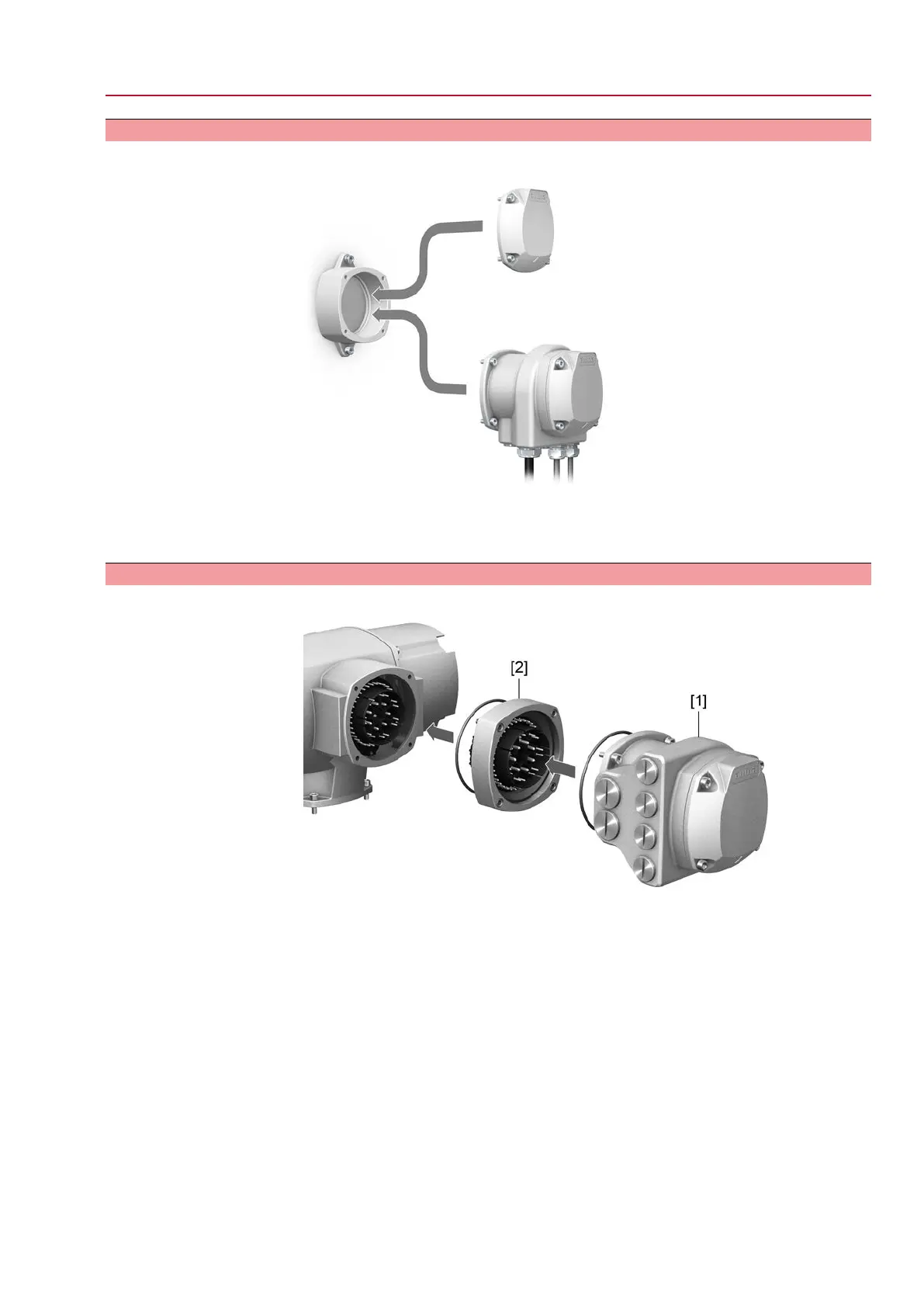

Figure 29: Parking frame, example with AUMA plug/socket connector and cover
Application
Parking frame for safe storage of a disconnected plug or cover.
For protection against touching the bare contacts and against environmental
influences.
6.3.3. DS intermediate frame for double sealing
Figure 30: Electrical connection with DS intermediate frame
[1] Electrical connection
[2] DS intermediate frame
Application
When removing the electrical connection or due to leaky cable glands, there is a
potential risk of ingress of dust and water into the housing.This is prevented
effectively by inserting the double sealed intermediate frame [2] between the
plug/socket connector [1] and the housing of the device.The enclosure protection
of the device (IP68) will not be affected, even if the electrical connection [1] is
removed.
