AUMA ACV 01.2 Operation Instructions

2. Short description
Part-turn actuator
Definition in compliance with EN 15714-2/EN ISO 5211:
A part-turn actuator is an actuator which transmits a torque to the valve for less than
one full revolution. It need not be capable of withstanding thrust.

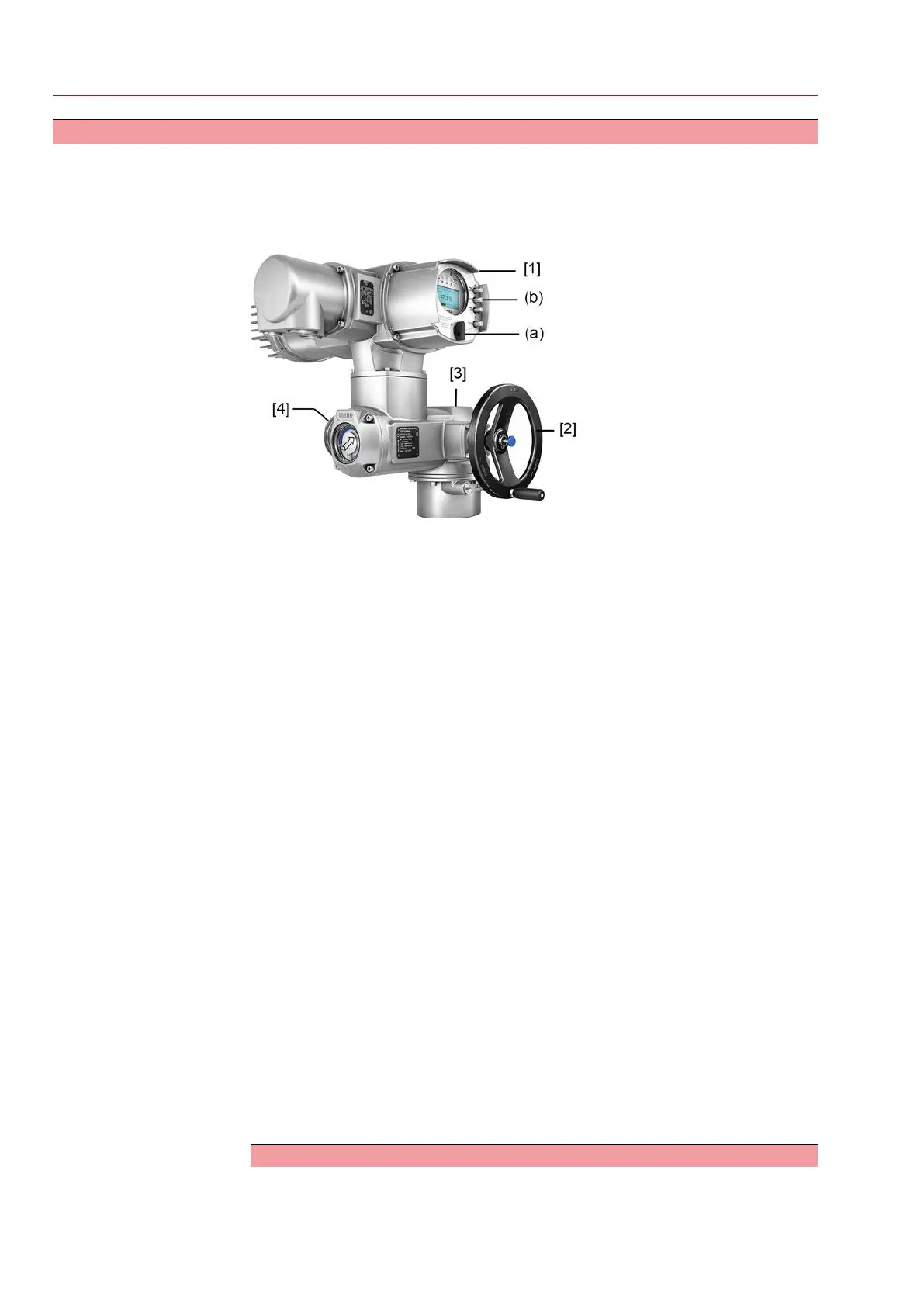

AUMA part-turn actuator Figure 1: AUMA SQV 10.2 part-turn actuator
[1] Local controls with display, (a) selector switch and (b) push button
[2] Handwheel
[3] Actuator/part-turn actuator
[4] Motor
AUMA part-turn actuators SQV 05.2 – SQV 14.2/SQRV 05.2 – SQRV 14.2with
variable operating time are driven by an electric motor. For manual operation, a
handwheel is provided. Switching off in end positions may be either by limit or torque
seating. Actuator controls are required to operate or process the actuator signals.
For part-turn actuators SQV 05.2 – SQV 14.2/SQRV 05.2 – SQRV 14.2, the actuator
operating time is modified by means of a frequency converter in the actuator controls.
Local controls/
AUMA software
Operation, setting, and display can be either performed directly at actuator controls
or alternatively from Remote via binary input signals, or using another interface.
The following options are available at the actuator controls in local operation:
●
The actuator can be operated via the push buttons of the local controls or set-
tings can be made in the actuator controls menu.The display shows information
on the actuator as well as menu settings (contents of these instructions).
●
Using the AUMA CDT software for Windows-based notebooks or the AUMA
Assistant App for Android-based devices, data can be uploaded and read
whereas settings can be modified and stored.The connection between computer
and actuator controls is wireless via Bluetooth interface (not included in these
instructions). AUMA CDT software can be downloaded free of charge from our
website www.auma.com.
Intrusive - Non-Intrusive
●
Intrusive version (control unit: electromechanical):
Limit and torque setting is performed via switches in the actuator.
●
Non-Intrusive version (control unit: electronic):
Limit and torque setting is performed via the controls, without removal of actu-
ator or actuator controls covers. For this purpose, the actuator is equipped with
an MWG (magnetic limit and torque transmitter), also capable to supply analogue
torque feedback signals/torque indication and analogue position feedback sig-
nals/position indication at the actuator controls output.
App and software
Using the AUMA CDT software for Windows-based computers (notebooks or tablets)
and the AUMA Assistant App for Android-based devices, actuator data can be
uploaded and read, settings can be modified and stored.The connection between
8
SQV 05.2 – SQV 14.2 / SQRV 05.2 – SQRV 14.2 Control unit: electronic (MWG)
Short description ACV 01.2 Non-Intrusive Profibus DP
