AUMA ACV 01.2 Operation Instructions

4. Transport und Lagerung
4.1. Transport
For transport to place of installation, use sturdy packaging.
Suspended load!
Death or serious injury.
→
Do NOT stand below suspended load.
→
Attach ropes or hooks for the purpose of lifting by hoist only to housing and NOT
to handwheel.
→
Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting
by hoist to valve and NOT to actuator.
→
Actuators mounted to gearboxes: Attach ropes or hooks for the purpose of lifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
→
Actuators mounted to controls: Attach ropes or hooks for the purpose of lifting
by hoist only to the actuator and NOT to the controls.
→
Respect total weight of combination (actuator, actuator controls, gearbox, valve)
→
Secure load against falling down, sliding or tilting.
→
Perform lift trial at low height to eliminate any potential danger e.g. by tilting.

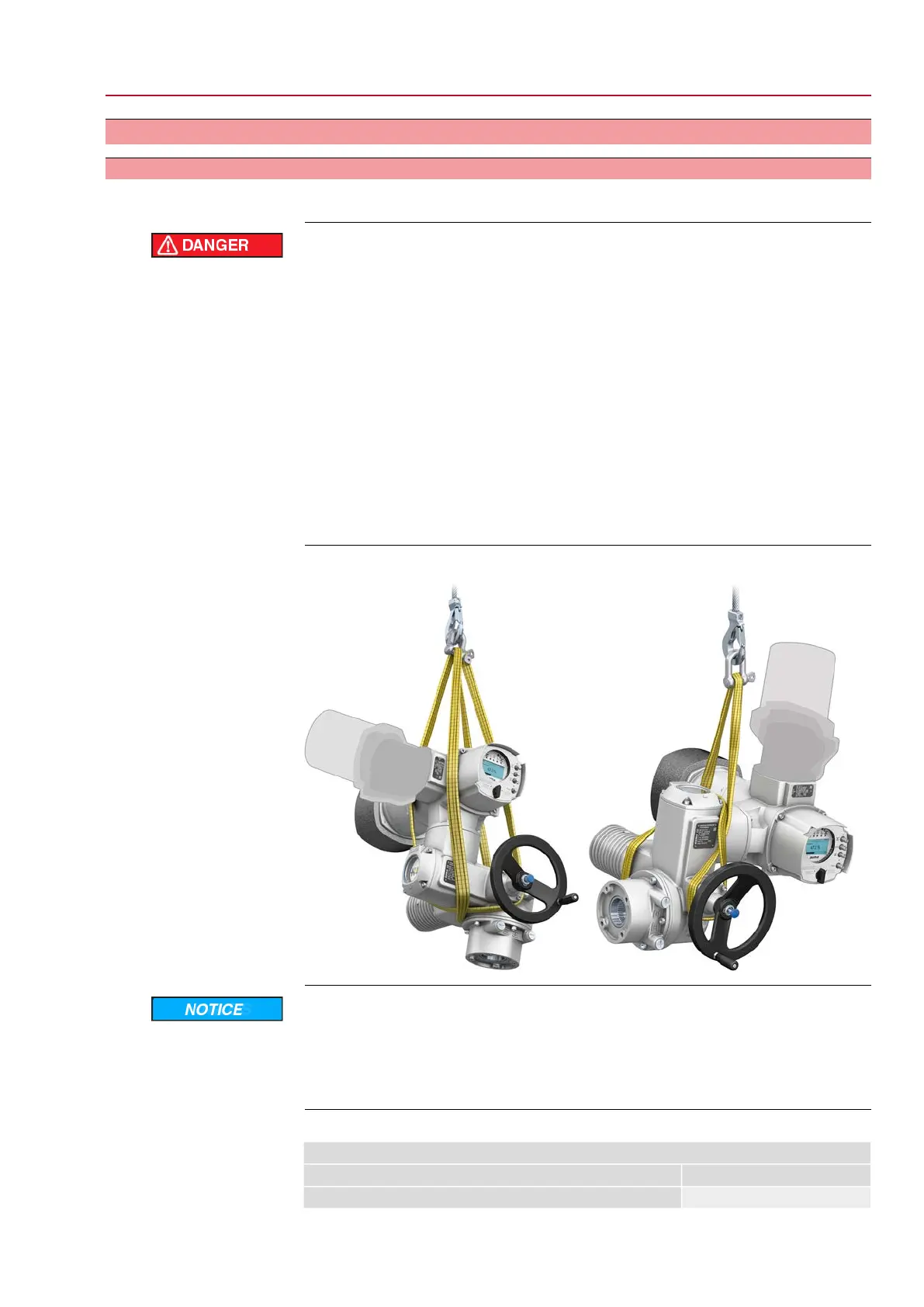

Figure 10: Example: Lifting the actuator
Delicate cooling fins, risk of damage!
During transport or assembly without the supplied transport protection, the cooling
fins may either break or bend if they hit other objects during inappropriate transport.
→
During transport and installation, leave the supplied cooling fin transport protec-
tion on the cooling fins.
Gewichte
Table 3:
Weight for ACV 01.2 actuator controls
Weight approx. [kg]with electrical connection type:
7AUMA plug/socket connector with screw-type connection
13
SQV 05.2 – SQV 14.2 / SQRV 05.2 – SQRV 14.2 Control unit: electronic (MWG)
ACV 01.2 Non-Intrusive Profibus DP Transport und Lagerung
