AUMA ACV 01.2 Operation Instructions

Descriptions referring to name plate indications

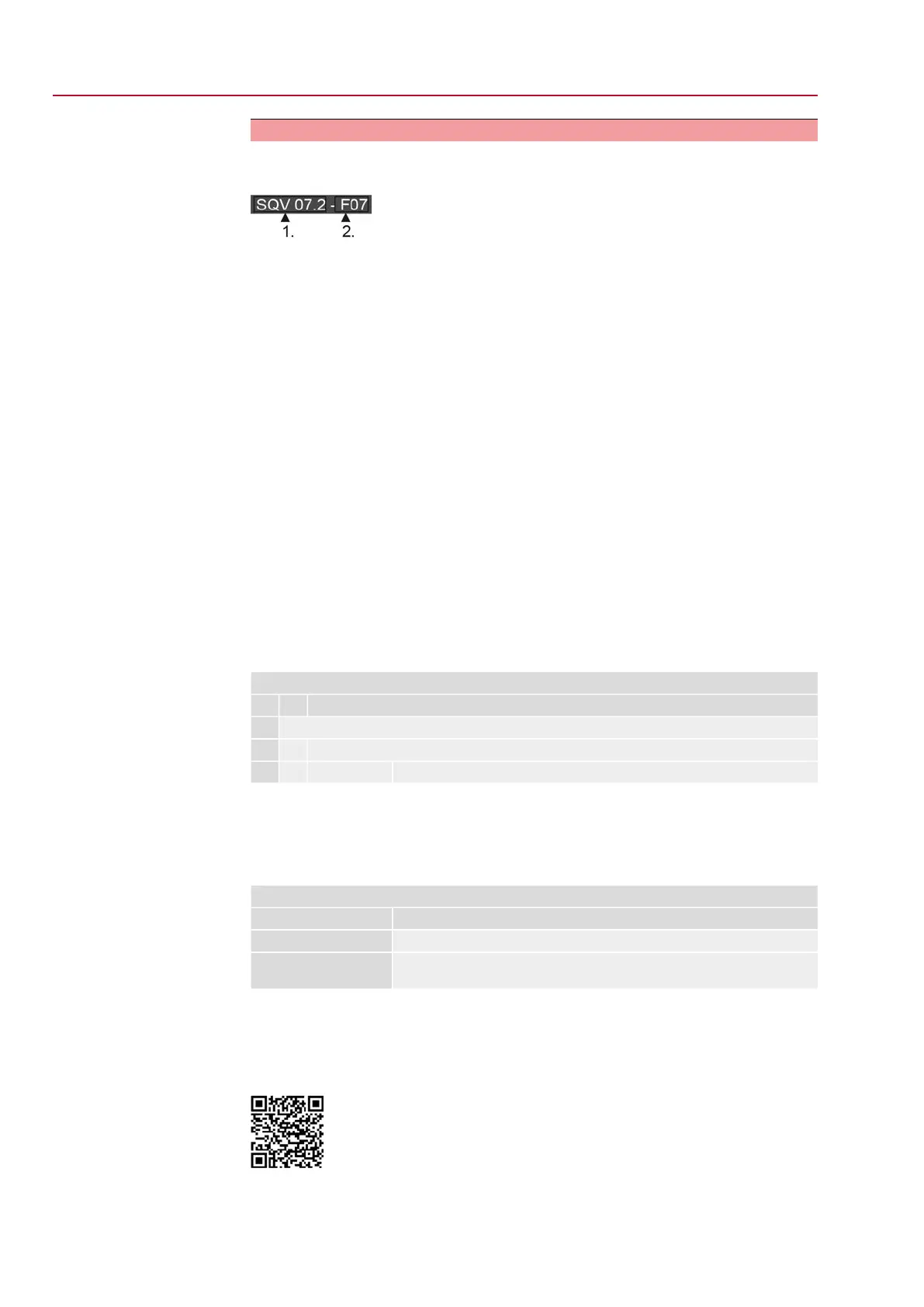

Type designation Figure 8: Type designation (example)
1. Type and size of actuator
2. Flange size
Type and size
These instructions apply to the following devices types and sizes:
●
SQ = Type = Part-turn actuator for open-close duty
●
SQR = Type = Part-turn actuator for modulating duty
●
05.2, 07.2, 10.2, 12.2, 14.2 = Sizes and part-turn actuator generation
●
AC = Type = AC actuator controls
●
01.2 = Size and actuator controls generation
●
V = for version with variable speed
Order number
The product can be identified using this number and the technical data as well as
order-related data pertaining to the device can be requested.
Please always state this number for any product inquiries.
On the Internet at http://www.auma.com > Service & Support > myAUMA, we offer
a service allowing authorised users to download order-related documents such as
wiring diagrams and technical data (both in German and English), inspection certificate
and the operation instructions when entering the order number.
Serial number
Actuator
Table 1:
Description of serial number (example of 0520NS12345)
NS123452005
Positions 1+2: Assembly in week = week 0505
Positions 3+4:Year of manufacture = 202020
Internal number for unambiguous product identificationNS12345
Actuator terminal plan
Position 9 after TPA: Position transmitter version
I, Q = MWG (magnetic limit and torque transmitter)
Control
Table 2:
Control examples (indications on actuator controls name plate)
DescriptionInput signal
Control via Profibus DP interfaceProfibus DP
Control via Profibus DP interface and control voltage for OPEN-CLOSE control
via digital inputs (OPEN, STOP, CLOSE)
Profibus DP/24 V DC
Data Matrix code
When registered as authorised user, you may use our AUMA Assistant App to scan
the Data Matrix code and directly access the order-related product documents without
having to enter order number or serial number.
Figure 9: Link to AUMA Assistant App:
For further Service & Support, software/apps/... refer to www.auma.com.
12
SQV 05.2 – SQV 14.2 / SQRV 05.2 – SQRV 14.2 Control unit: electronic (MWG)
Name plate ACV 01.2 Non-Intrusive Profibus DP
