Actuator controls name plate

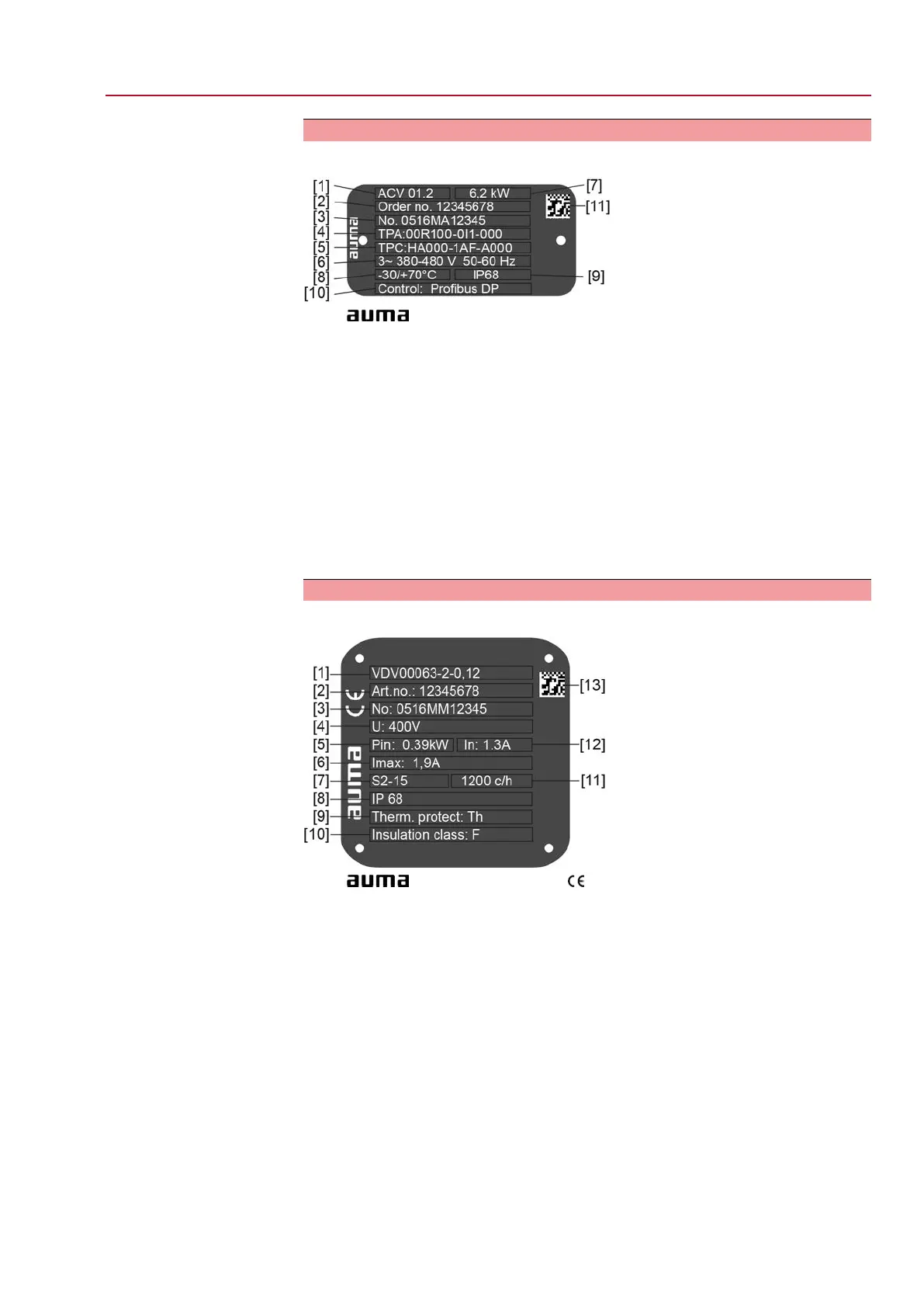

Figure 6: Actuator controls name plate

(= manufacturer logo)

[1] Type designation

[2] Order number

[3] Serial number

[4] Actuator terminal plan

[5] Actuator controls wiring diagram

[6] Mains/voltage range/frequency range

[7] Rated power of the ACV

[8] Permissible ambient temperature

[9] Enclosure protection

[10] Control

[11] Data Matrix code

Motor name plate

Figure 7: Motor name plate (example)

(= manufacturer logo); (= CE mark)

[1] Motor type

[2] Motor article number

[3] Serial number

[4] Rated voltage

[5] Consumed nominal power by the mains P

[6] Consumed nominal current by the mains I

[7] Type of duty

[8] Enclosure protection

[9] Motor protection (temperature protection)

[10] Insulation class

[11] Perm. number of starts (for SQRV)

[12] Nominal current

[13] Data Matrix code

SQV 05.2 – SQV 14.2 / SQRV 05.2 – SQRV 14.2 Control unit: electronic (MWG)

ACV 01.2 Non-Intrusive Profibus DP Name plate

AUMA ACV 01.2 Operation Instructions
