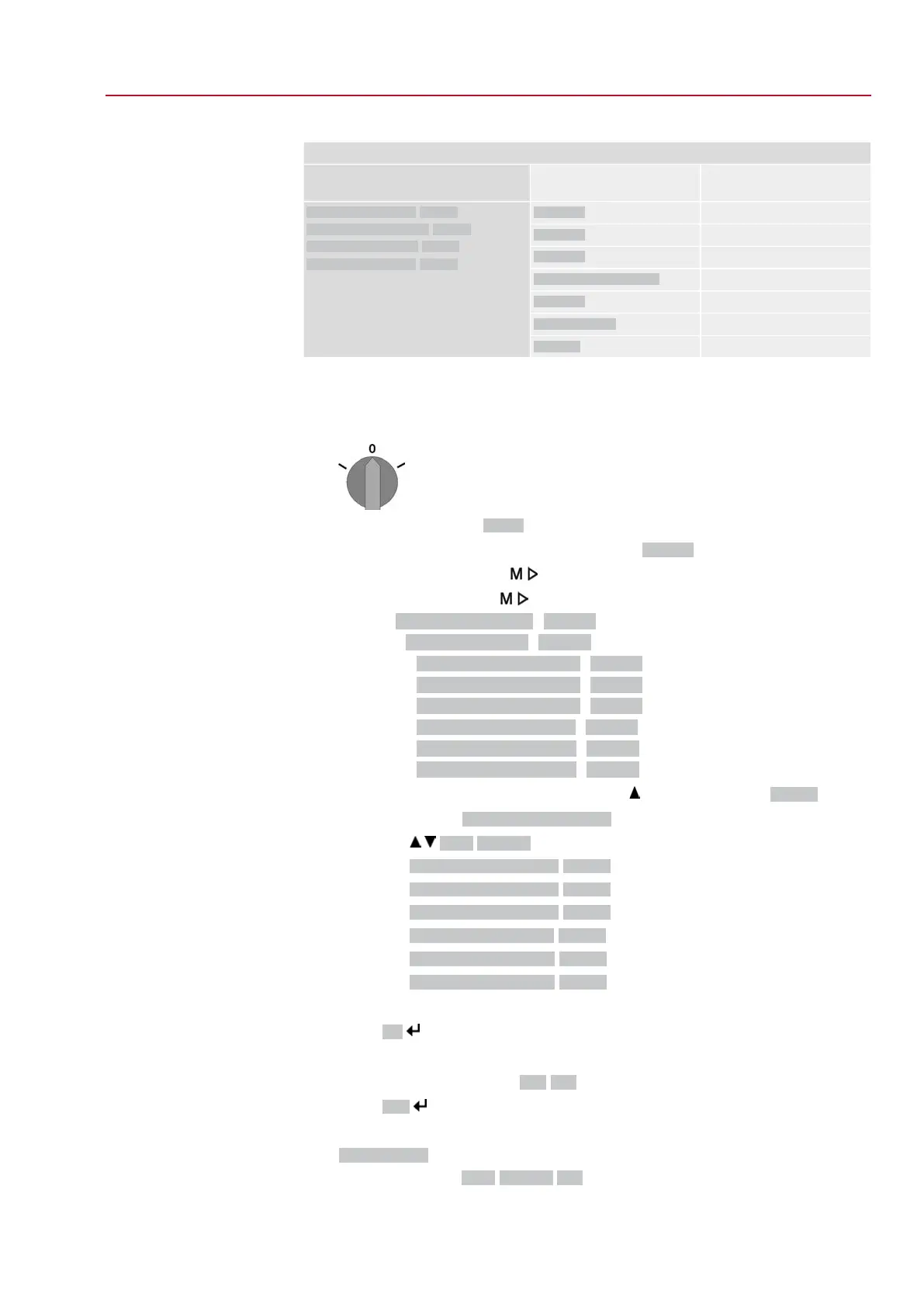

AUMA ACV 01.2 Operation Instructions

Table 17:
Speed sources
Adjustable internal operating
time
ValueParameters
Yes
Internal 1Sp. source LOC OP M1700
Sp. source LOCAL CL M2039
Sp. source REM OP M1701
Sp. source REM CL M2040
Yes
Internal 2
Yes
Internal 3
Yes
2 DigIn: "Internal (1-4)"
Yes
Internal 4
No (external speed source)
Analogue input
No (external speed source)
Fieldbus
For further information on setting the speed sources, refer to Manual (Operation and
Setting):
Select main menu
1. Set selector switch to position 0 (OFF).
2.
Press push button C Setup and hold it down for approx. 3 seconds.
➥
Display goes to main menu and indicates: ▶ Display
Select parameter for op-
erating time
3.
Either click via the menu to the parameter or via direct display
→
Via the menu :
Customer settings M0041
Speed functions M1699
Operat. time internal1 M1940
Operat. time internal2 M1941
Operat. time internal3 M1942
Operat.time internal4 M1943
Oper. time rem. max. M1946
Oper. time rem. max. M1947
→
Via direct display For this, press and enter ID, e.g.: M1940.
➥
Display indicates: Operat. time internal1
Selection
4.
Select via Up ▲ Down ▼:
→
▶ Operat. time internal1 M1940
→
▶ Operat. time internal2 M1941
→
▶ Operat. time internal3 M1942
→
▶ Operat.time internal4 M1943
→
▶ Oper. time rem. max. M1946
→
▶ Oper. time rem. max. M1947
➥
The black triangle ▶ indicates the current selection.
5.
Press Ok .
➥
Display shows the set value.
➥
The bottom row indicates: Edit Esc
6.
Press Edit .
➥
Display indicates:
-
Specialist (4) → continue with step 7
-
in the bottom row Up ▲ Down ▼ Esc → continue with step 11
57
SQV 05.2 – SQV 14.2 / SQRV 05.2 – SQRV 14.2 Control unit: electronic (MWG)
ACV 01.2 Non-Intrusive Profibus DP Commissioning (basic settings)
